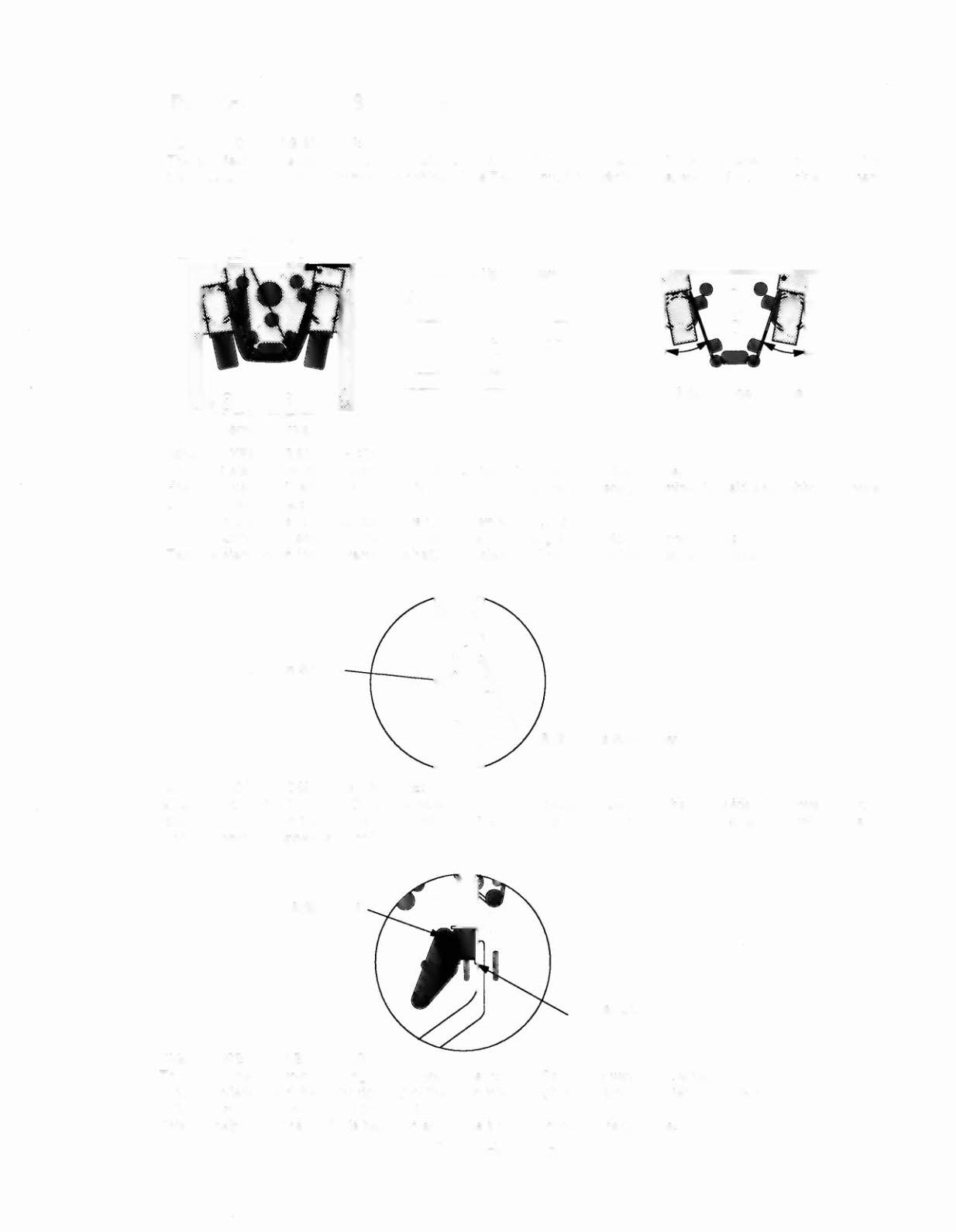

PLAYFIELD ADJUSTMENTS
PLAYFIELD GLASS SWITCH:
The playfield glass switch should be adjusted so that when the glass is inserted, the switch closes when the front of
the glass is in line with the front of the cabinet. Use Test Menu, T.1 Switch Edges, switch #82, to check adjustment.
Remove Screws
Adjust Up or Down
Adjust Side to Side
Remove Nuts
MINI-PLAYFIELD BALL EJECT:
To adjust ejects from kicking the ball down the center of the playfield to the outhole:
First remove the (4) screws and (2) nuts from the plastic shroud covering the mini-playfield assembly.
Remove
shroud. Then, either;
1. with pliers, bend the ball deflectors up or down slightly, or;
2. loosen the (2) screws on the ball deflectors and turn slightly. Tighten the screws and;
Test the eject action for accuracy. The ball, when ejected, should hit the lower playfield flippers.
Ball Flows Smoothly
BALL ROLLOUT FROM HANG ON LANE:
Ball should roll out of the Hang On Lane smoothly. To adjust, loosen the screw on the ball guide just above flipper.
Move the ball guide so that the ball when rolling off the ball guide is even with the flipper. Ball should not bounce
off or drop onto the flipper when rolling.
Adjust Nut
Adjust Leg
RIGHT WIRE RAMP BALL DROP:
To prevent the ball from dropping into the drain lane from the Police Box wire ramp, either;
1. with pliers, bend the lower right leg of the ramp inward slightly, toward the center of playfield, or;
2. loosen nut and move ramp to the left.
This will help to reduce the balls backspin and guide it back into the ball return lane.
DOCTOR WHO 1-51
