7. Unlock and open the coin door. Move the molding latch lever toward the left side of the game, to release the
front molding. Lift the front molding off the playfield cover glass, return the latch lever to the right, and close
the coin door. Carefully slide the glass downward, until it clears the grooves of the left and right side moldings.
Lift the glass up and away from the game, storing it carefully to avoid breakage.
8. Place a level or an inclinometer on the playfield surface. Adjust the leg levelers for proper playfield level (side-
to-side). NOTE: It is recommended that these measurements be made ON the playfield, not the cabinet nor
the playfield cover glass. Tighten the nut on each leg leveler shaft to maintain this setting.
9. The TRU-PITCH
lM
level is located on the right shooter rail. This allows the playfield pitch angle to be accurately
adjusted WITHOUT REMOVING THE GLASS. The first line (closest to the front of game) on the level is
approximately 6 degrees.
Every line thereafter is approximately another 1/2 degree of pitch.
The
recommended pitch for Doctor Who is between 6 and 6 1/2 degrees. The NOSE of the bubble is between the
first and second line on the level (see diagram below).
©~UJJIfO@[M
Playfield pitch angle adjustments can affect the operation of the plumb bob tilt, inside the cabinet. The plumb
bob weight is among the parts in the cash box; the operator should install the weight and adjust this tilt
mechanism for proper operation, after completion of the desired playfield pitch angle setting.
10. Move the game into the desired location; recheck the level and pitch angle of the playfield.
11. Verify that the
required number
of balls are installed in the game.
DOCTOR WHO
uses 3 balls.
12. Install playfield mylars if desired.
NOTE:
The
Doctor Who
playfield is specially coated with a Diamond Plate
™
surface and does not require
a protective mylar. However, playfield mylars can be purchased through your local Bally Distributor. Specify
part number 03-7960-20006-1 for full playfield mylar.
13. Clean and reinstall the playfield cover glass, reversing the procedure of step 7.
14. To attach line cord, remove envelope stapled to the inside cabinet (near cashbox).
Remove the four Phillips-
head screws that mount the line cord cover plate to the rear cabinet. Match the prongs on the plug with the
holes in the receptacle and push line cord securely into place. Make sure cord is aligned with the indentation
of plate (indentation should point toward bottom of cabinet). Remount line cord cover plate. If desired, tamper
resistant screws have been provided in an envelope marked "Security Screws" (located in cashbox) to
remount cover plate. Prepare the game for player operation.

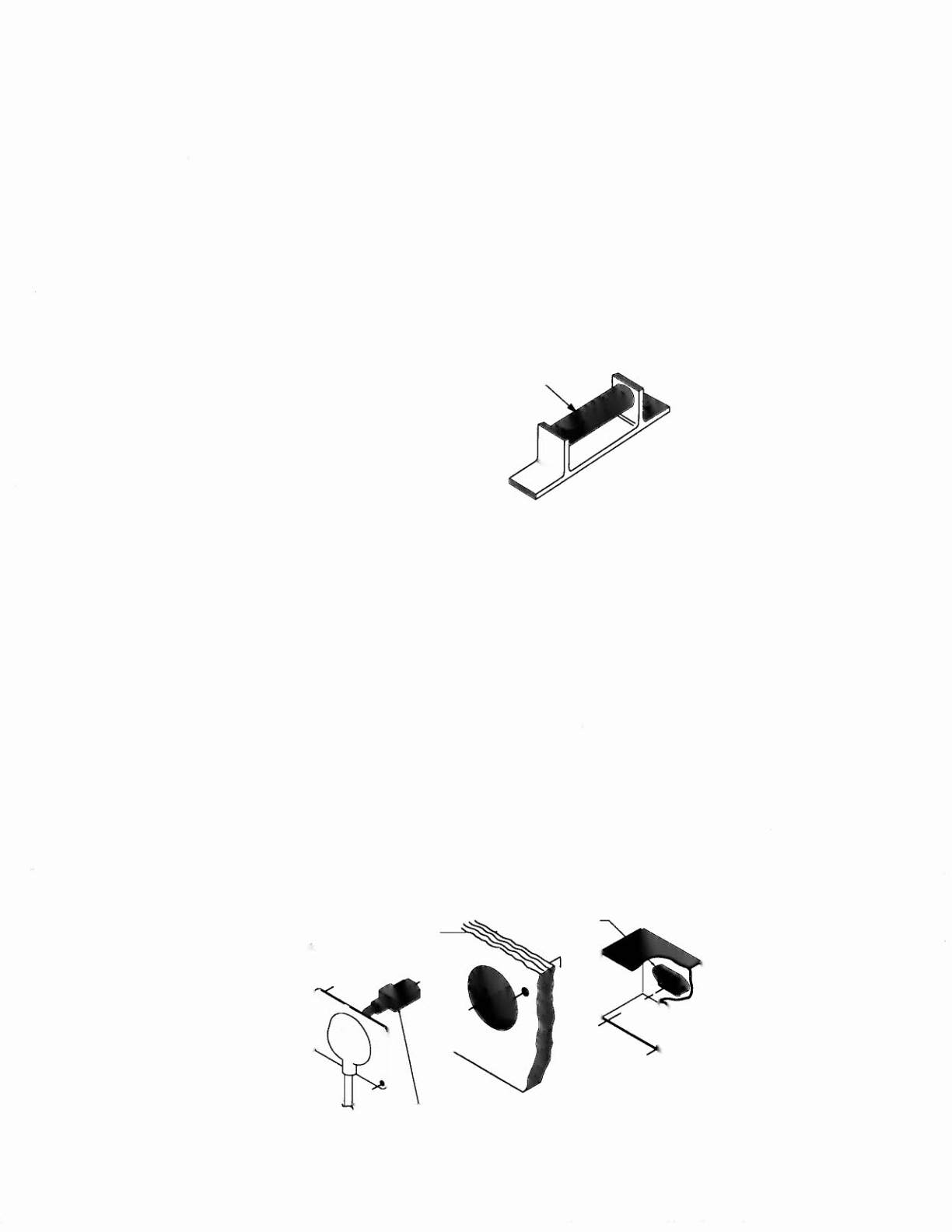

Line Cord
&
Plug
DOCTOR WHO 1-3
