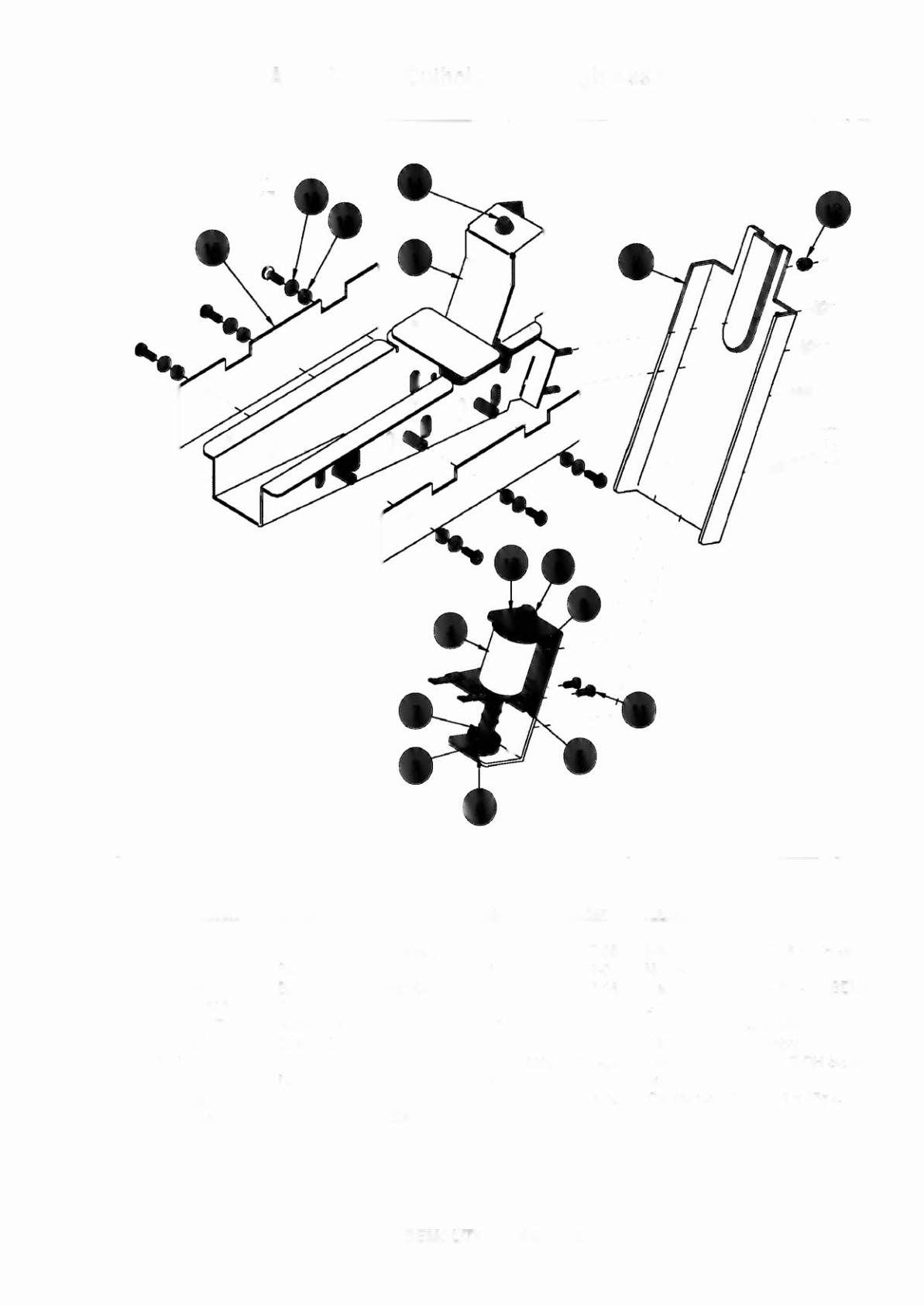

Outhole Ball Troug h Assembly
I
I
I
,
I
I
I
I
I
I
I
I
~~~
J
l1!m
part Number
Description
IDm
part Number
Description
1.
A-16809
Ball Trough Welded Assy.
11. 4008-01017-05 Mach. Screw, 8-32xS/1SP-RH SEMS
2.
01-11587
Ball Trough Front
12. 4408-01119-00 Nut 8-32 ESN
3.
A-630S-2
Bell Armature Asssembly
13. 4008-01017-0S Mach. Screw, 8-32x3/8 P-RH SEMS
4.
AE-2S-1S00
Coil Assembly
14. 23-6702
Bumper Plug
5.
01-8-508-T
Solenoid Bracket
15. A-17982
7 IR LED PCB Assembly
6.
03-7067-5
Coil Tubing
16. A·17981
7 IR LED PCB Assembly
7.
10-135
Insulator
17. 4006-01017-06 Mach. screw, 6-32x3/8 P-RH SEMS
8.
23-6420
Rubber Grommet
18. 23-6626
Rubber Grommet
9.
03-8523
Insulator
19. 4700-00016-00 Flatwasher, 3/16 x
7/16
x 17ga.
10. 01-11586
Coil Mtg. Bracket (Bell)
DEMOLITION
MAN
2-19
