Parts Information

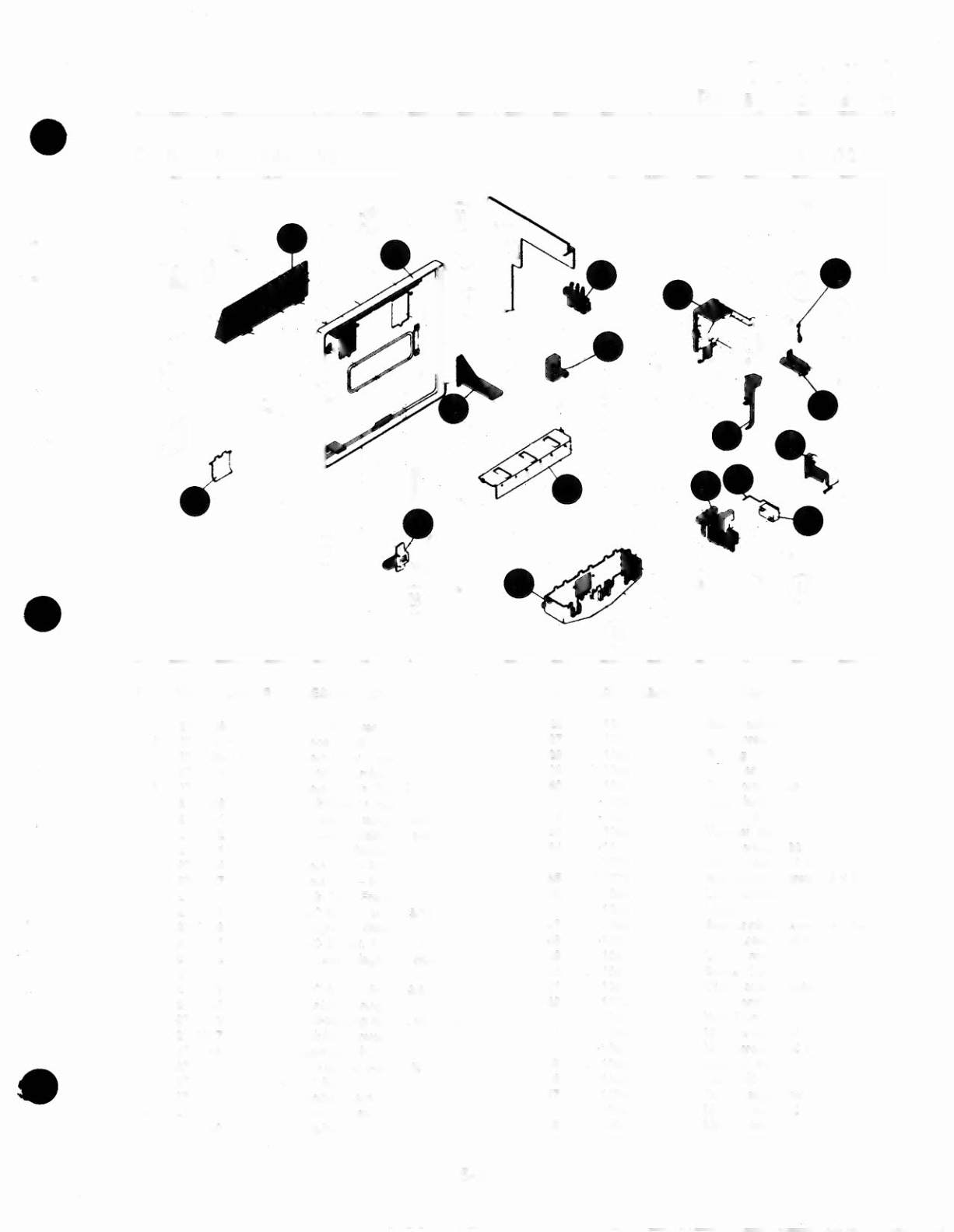

Coin Door Assembly
09-170028-1
ITEM PART NUMBER DESCRIPTION
ITEM PART NUMBER DESCRIPTION
1 27-1038
Button Cover
26 27-1018
Star Washer
2 27-1041-1--41
Prfce Panel
27 27-1019
MlCScr.w
3 27-1026-1--13
Coin Entry Plate
28 27-1089
R-Rlng
4 27-1016
Lock Assembly
29 27-1083
Retainer
5 27-1061
CoIn Return Bezel
30 27-1081
Coin Inlet Chute
6 27-1062
Coin Return Rap
31 27-1088
WHCIarl1>
7 27-1021
Button Housing - 2-slot
32 27-1025
Key Hook
27-1022
Button Housing - 3-slot
33 27-1088
Washer, 16
8 27-1111
Interlock Switch
34 27-1078
WC Screw, 6-32 x 3/8
9 27-1006
Coin Door - 2-slot
27-1078
WC Screw, 6-32 x 7/8
27-1007
Coin Door - 3-slot
35 27-1079
Self-tapping Screw, 16 x
1/4
10 27-1005
Coin Door Frame
38 27-1084
Lamp Socket
11 27-1003
WC Screw, 6-32 x
3116
27·1085
Lamp
12 27-1008
Diagnostic Switch
37 27·1098
Self-tapping Screw,
IS
x 318
13 27-1101
WC Screw, 4-40 x
1/4
38 27-1087
M!C Screw, 6-32 x 5/8
14 27-1102
Bracket, Diagnostic Switch
39 27-1082
Lever Ann
15 27-1037
Button
40 27-1097
Switch Cover
16 27-1078
WC Screw, 6-32 x 3/8
41 27-1091
Coin Accept Chute
17 27-1039
Conical Spring
42 27-1075
WIre Fonn
18 27-1079
Self-tapping Screw, 16 x
1/4
27-1093
WIre Fonn
19 27-1
on
Colnbox Cover
43
27-101U
WC Screw, 6-40 x 7/8
20 27-1066
Slam Switch
44 27-1087
WC Screw, 6-32 x 5/8
21 27-1067
M!C Screw 4-40 x 112
45 27-1086
Washer, 16
22 27-1017
Nut (key)
46 27-1095
Nut, 4-40
23 27-1012
locking cam
47 27-1076
Coin Retum Box
24 27-1011
Locking Ann
48 27-1078
WC Screw, 6-32 x 3/8
25 27-1020
Wuher
40 27-1002
Mlcroswltch
5-5
