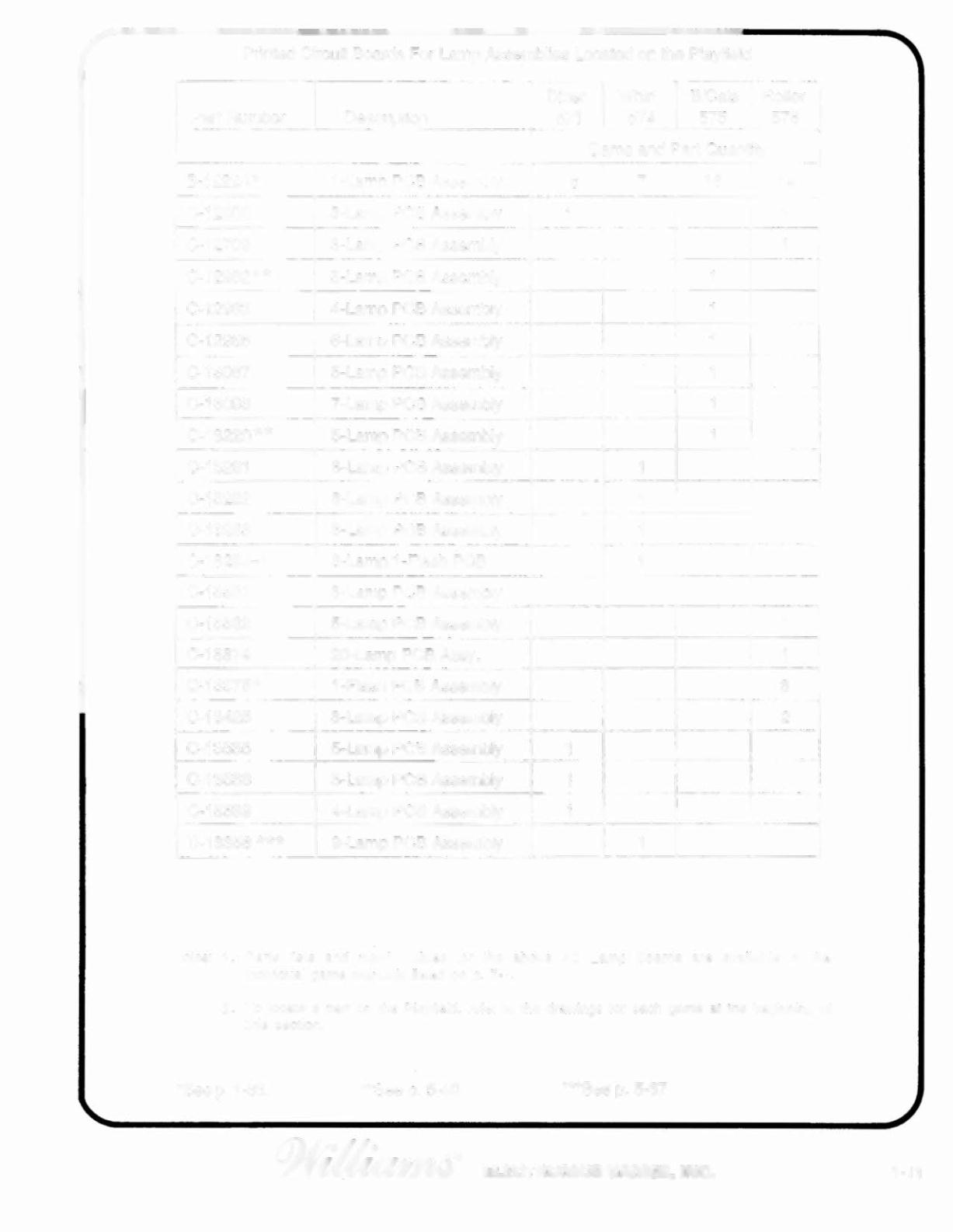

Printed Circuit Boards For Lamp Assemblies Located on the Playfield
Diner Whirl BICats ROller!
Part Number Description 571 574 575 576 .- - - I
Game and Part Quantity
B-12.224 * 1-Lamp PCB Assembly 16 7 18 14
C-12000 3-Lamp PCB Assembly 1 1
C-12709 3-Lamp PCB Assembly 1
C-12982** 3-Lamp PCB Assembly 1
C-12983 4-Lamp PCB Assembly 1
1 C-12985 s-tamp PCB Assembly 1
C-13067 5-Lamp PCB Assembly 1
C-13093 7-Lamp PCB Assembly 1
C-13220** 5-Lamp PCB Assembly 1
C-13281 6-Lamp PCB Assembly 1
C-13282 a-Lamp PCB Assembly 1
I C-13283 s-tamp PCB Assembly 1
C-13284-1 8-Lamp/1-Flash PCB 1
C-13361 3-Lamp PCB Assembly 1
C-13362 5-Lamp PCB Assembly 1
C-13374 20-Lamp PCB Assy. 1
C-13375* 1-Flash PCB Assembly 3
C-13425 3-Lamp PCB Assembly 2
C-13535 5-Lamp PCB Assembly 1
C-13538 5-Lamp PCB Assembly 1
C-13539 4-Lamp PCB Assembly 1
0-13356 *** s-tamp PCB Assembly 1
Notes: 1. Parts lists and matr ix tables for the above PC Lamp Boards are available In the
Individualgame manuals listed on p. 7-1.
2. To locate a part on the Playfleld, refer 10 the draWingsfor each game at the beginning of
this section.
·See p. 1-33. **See p. 5-40 ***8ee p. 5-37
