Unique Assemblies - cont'd
TERMINATOR 2 (50013)
Used In conjunction with
5647-12693..()3
Mini-Micro SWitch
~,
r~
<,
I
I
I
I
I
I
I
'-..J

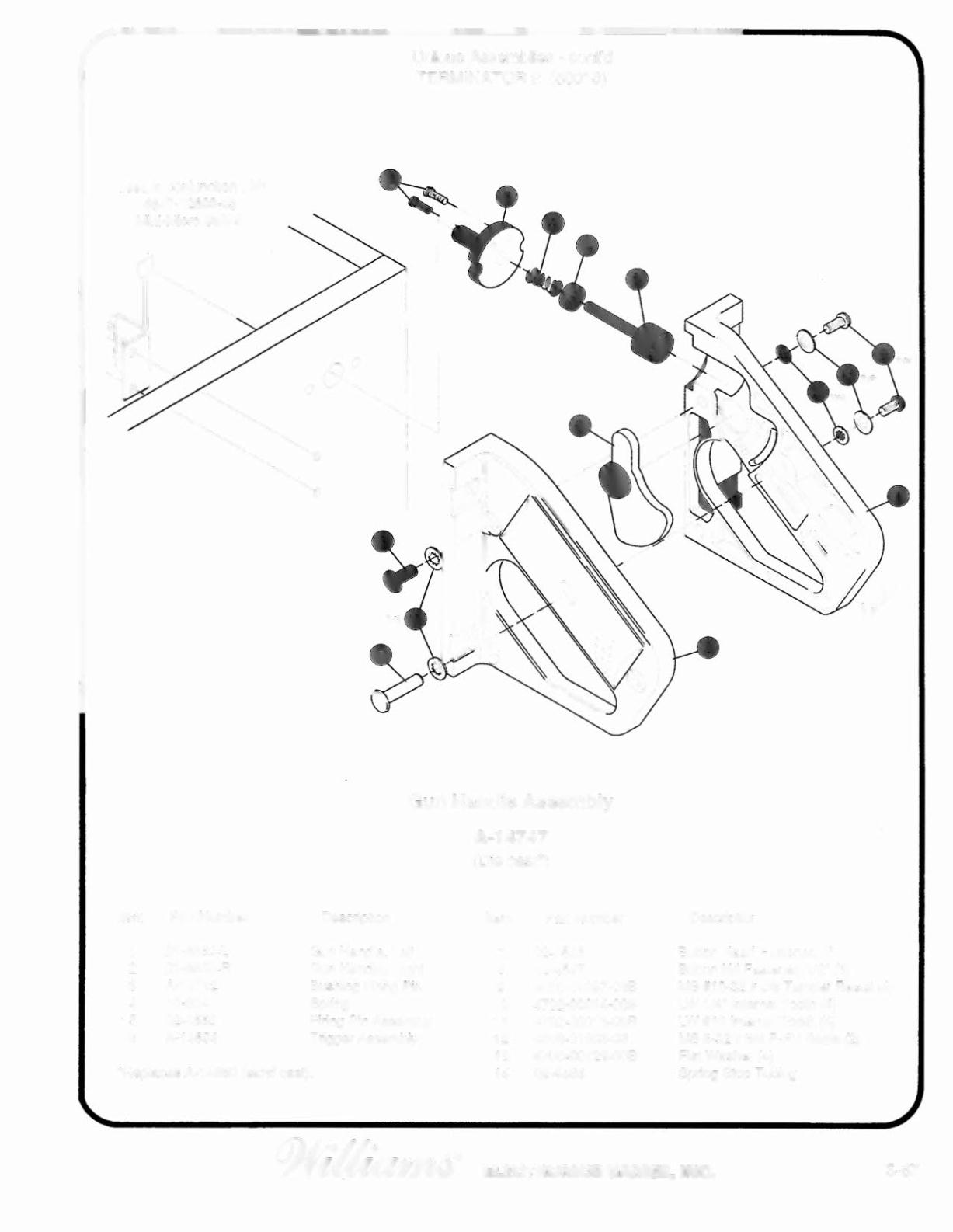

Gun Handle Assembly
A·14747
(Die
cast')
Item Part Number
Description
Item Part Number
Description
21-6688-L
Gun Handle, Left
7 02-4546
Button Head Fastener. 1"
2 21-6688-R
Gun Handle, Right
8 02-4547
Button Hd Fastener,
1/2" (3)
3 A-14712
Bushing Firing Pin
9 4010-01097-068
MS #10-32 x
3/8
Tamper Resist.(4)
4 10-304
Spring
10 4702-00014-008
LW
1/4"
Internal Tooth (4)
5 02-4558
Firing Pin Assembly
11 4702-00013-008
LW #10 Internal Tooth (4)
6 A-14694
Trigger Assembly
12 4006-01003-06
MS 6-32 x
3/8
P-PH Sems (2)
13 4700-00 129-008
Flat Washer (4)
"Replaces A-14680 (sand cast).
14 02-4588
Spring Stop Tubing
ELECTRONICS GAMEB.INC.
