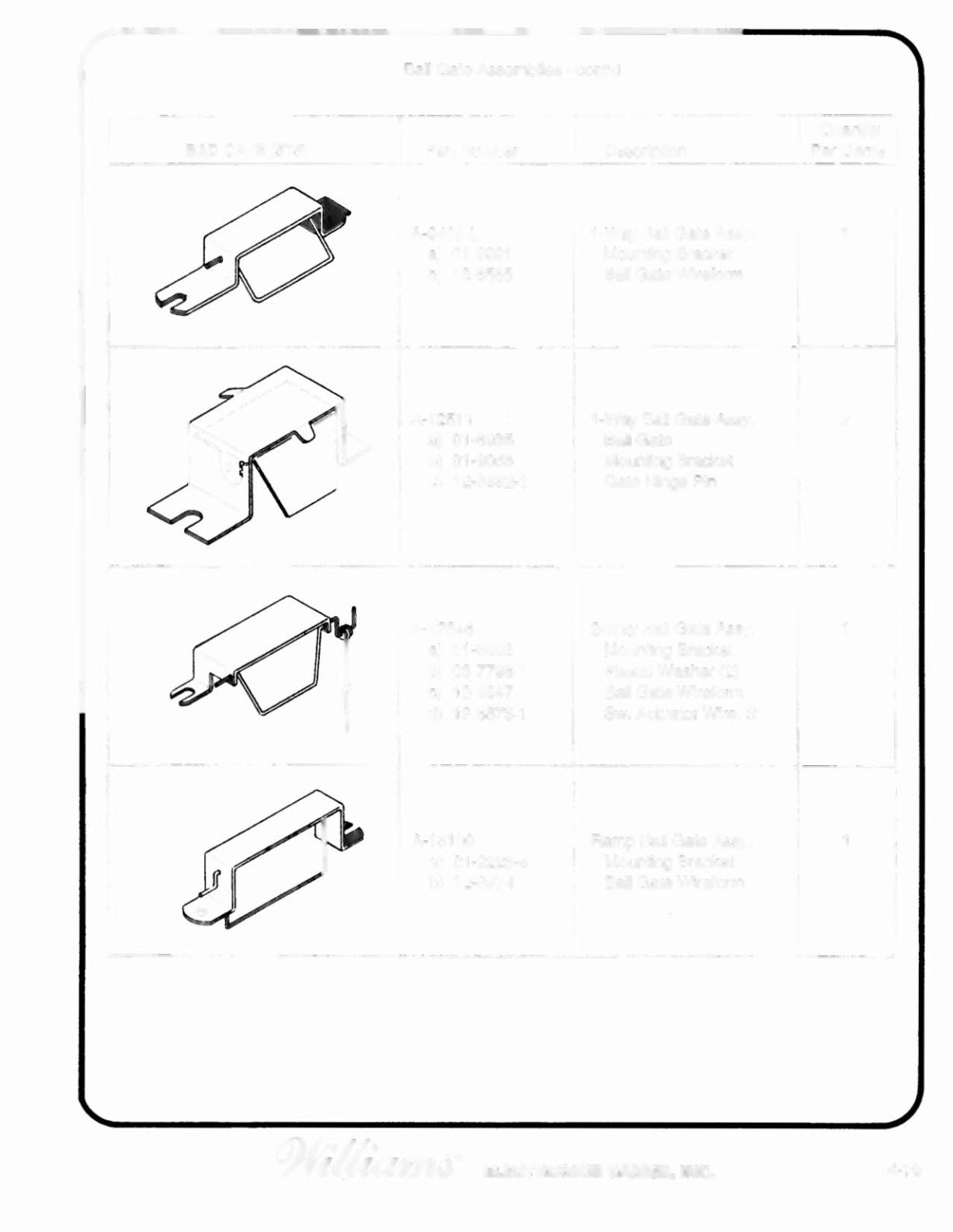

Ball Gate Assemblies - confd
Part Number
A-9465-L
a) 01-6991
b) 12-6565
A-12511
a) 01-6935
b) 01-9055
c) 12-6882-1
A-12846
a) 01-8888
b} 03-7796-1
c) 12-6847
d) 12-6873-1
A-13109
a) 01-9223-8
b) 12-6874
Description
1-Way Ball Gate Assy.
Mounting Bracket
Ball Gate Wireform
1-Way Ball Gate Assy.
Ball Gate
Mounting Bracket
Gate Hinge Pin
2-Way Ball Gate Assy.
Mounting Bracket
Plastic Washer (2)
Ball Gate Wireform
Sw. Actuator Wire, 5"
Ramp Ball Gate Assy.
Mounting Bracket
Ball Gate Wireform
-- -- , - - -- - - - - - - - -- . -- ---- - -
Quantity
Per Game
(J)",/_.
I
I_· _____
Ie
7'~
ELECTRONICSGAMEB.INC.
1
2
1
1
BAD CATS (575)
4-19
