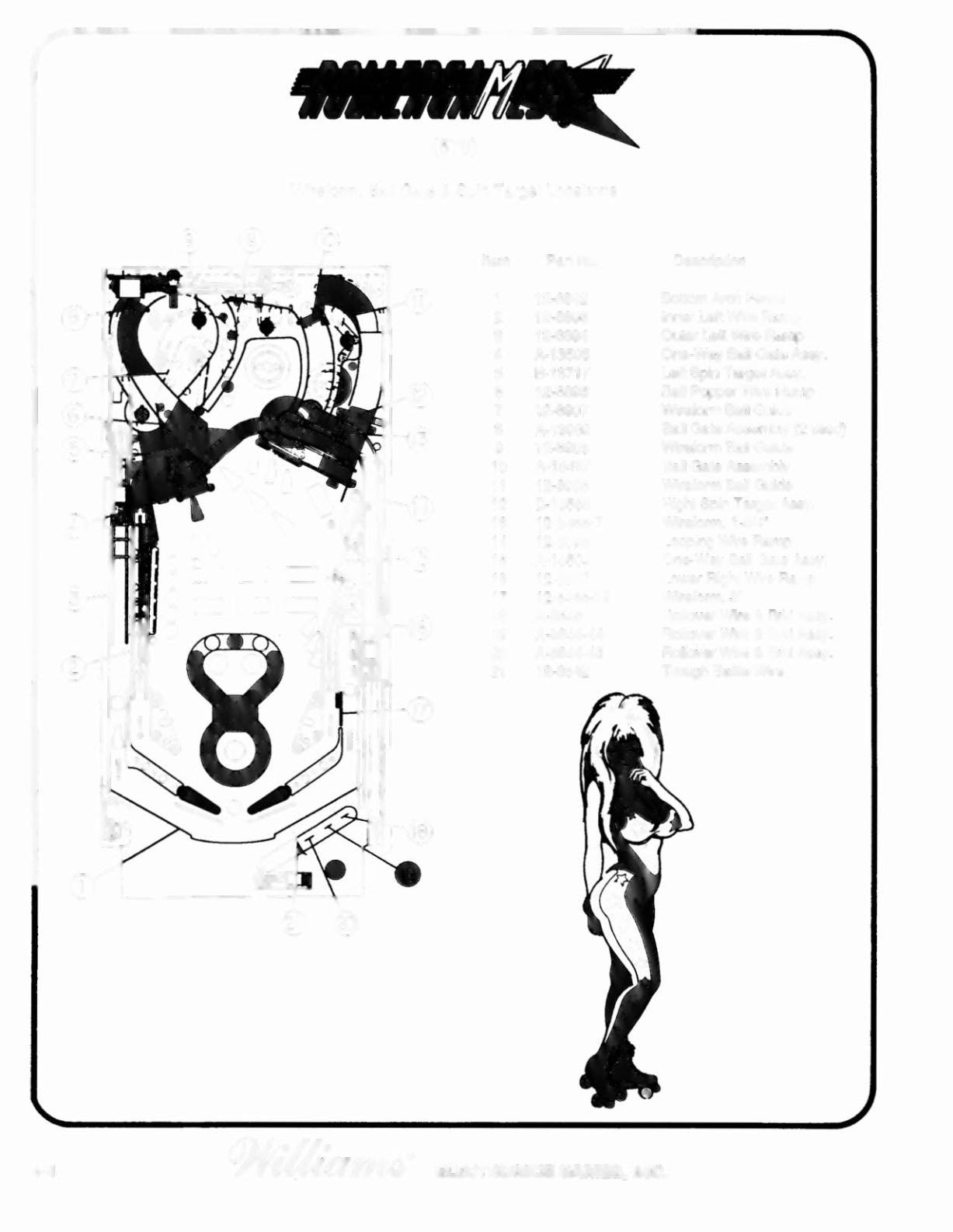

Wireform, Ball Gate
&
Spin Target Locations
Item Part No.
Description
1 12-6842
Bottom Arch Fence
2 12-6896
Inner Left Wire Ramp
3
12-6894
Outer Left Wire Ramp
4 A-13505
One-Way Ball Gate
Assy.
5 B-13717
Left Spin Target Assy.
6 12-6895
Ball Popper Wire Ramp
7 12-6907
Wireform Ball Guide
8 A-13669
Ball Gate Assembly (2 used)
9 12-6905
Wireform Ball Guide
10 A-13487
Ball Gate Assembly
11 12-6906
Wireform Ball Guide
12 B-13568
Right Spin Target Assy.
13 12-6466-7
Wi reform,
1-314-
14 12-6898
Looping Wire Ramp
15 A-13504
One-Way Ball Gate
Assy.
16 12-6897
Lower Right Wire Ramp
17 12-6466-12
Wireform,
3-
18 A-8645
Rollover Wire & Brkt
Assy.
19 A-5844-44
Rollover Wire & Brkt Assy_
20 A-5844-45
Rollover Wire & Brkt Assy.
21 12-6542
Trough Baffle Wire
4-4
