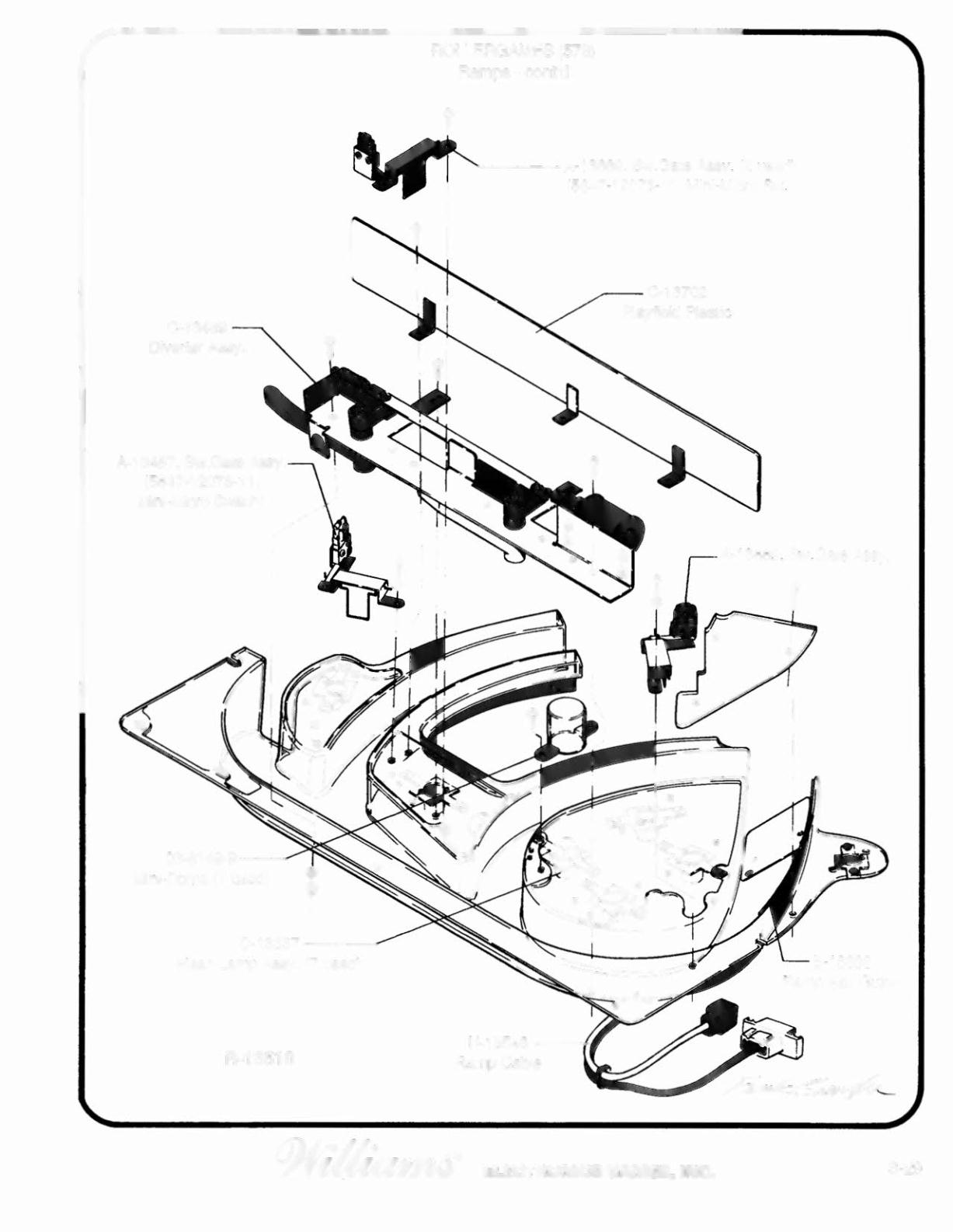

ROLLERGAMES (576)
Ramps -
cont'd
"'----A-13669,
Sw.Gate Assy. (2 used)
(5647-12073-11, Mini-Micro Sw.)
C-13489
Diverter Assy.
--C-13702
Playfield Plastic
A-13487, Sw.Gate Assy.
(5647-12073-11,
Mini-Micro Switch)
-A-13669, Sw.Gate Assy.
03-8149-9 -------
Mini-Dome (7 used)
C-13337-------"'""
Flash Lamp Assy. (7 used)
R-13510
H-13548
- - -- I ' F J
Ramp Cable
(J)",/_.
I
I_· _____
Ie
7'~
ELECTRONICSGAMEB.INC.
3-29
