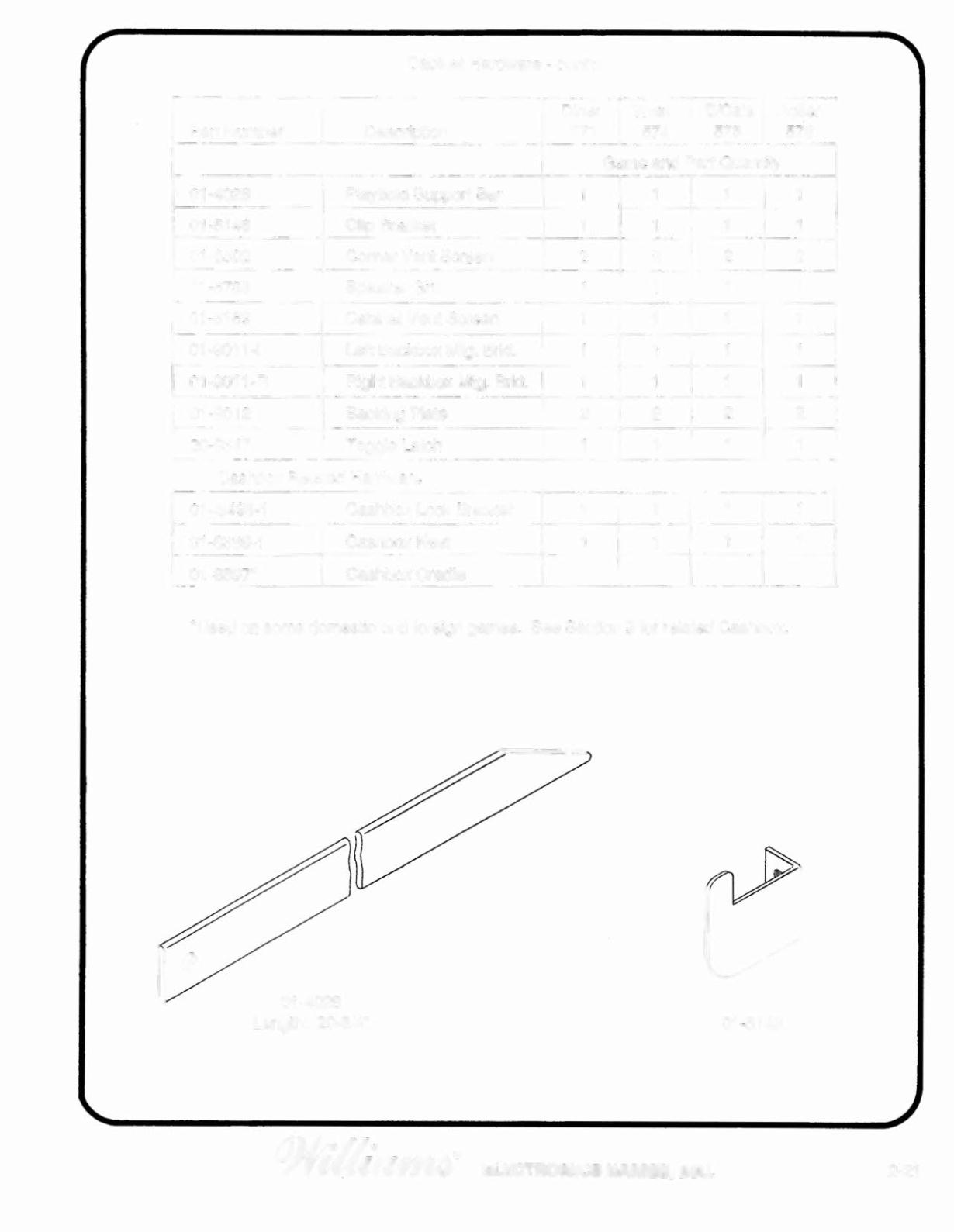

Page 191 - Williams RED Parts Catalog 16-9190-B

SEO Version

View Full Version

Table of Contents

Page 190

Page 192

Cabinet Hardware -

conrd

Diner

Whirl

BICats Roller

Part Number

Description

571

574

575

576

Game and Part Quantity

01-4028

Playfield Support Bar

1

1

1

1

--

01-5148

Clip Bracket

1

1

1

1

01-6592

Corner Vent Screen

2

2

2

2

01-6733

Speaker Grill

1

1

1

1

01-8169

Cabinet Vent Screen

1

1

1

1

01-9011-L

Left Backbox Mtg. Brkt.

1

1

1

1

01-9011-R

Right Backbox Mtg. Brkt.

1

1

1

1

01-9012

Backing Plate

2

2

2

2

20-9347

Toggle Latch

1

1

1

1

Cashbox Related Hardware

Cashbox Lock Bracket

,

1

1

1

01-3493-1

1

01-6389-1

Cashbox Nest

1

1

1

1

01-8897·

Cashbox Cradle

·Used on some domestic and foreign games. See Section 9 for related Cashbox.

01-4028

Length:

20-3/4"

01-5148

2-21
