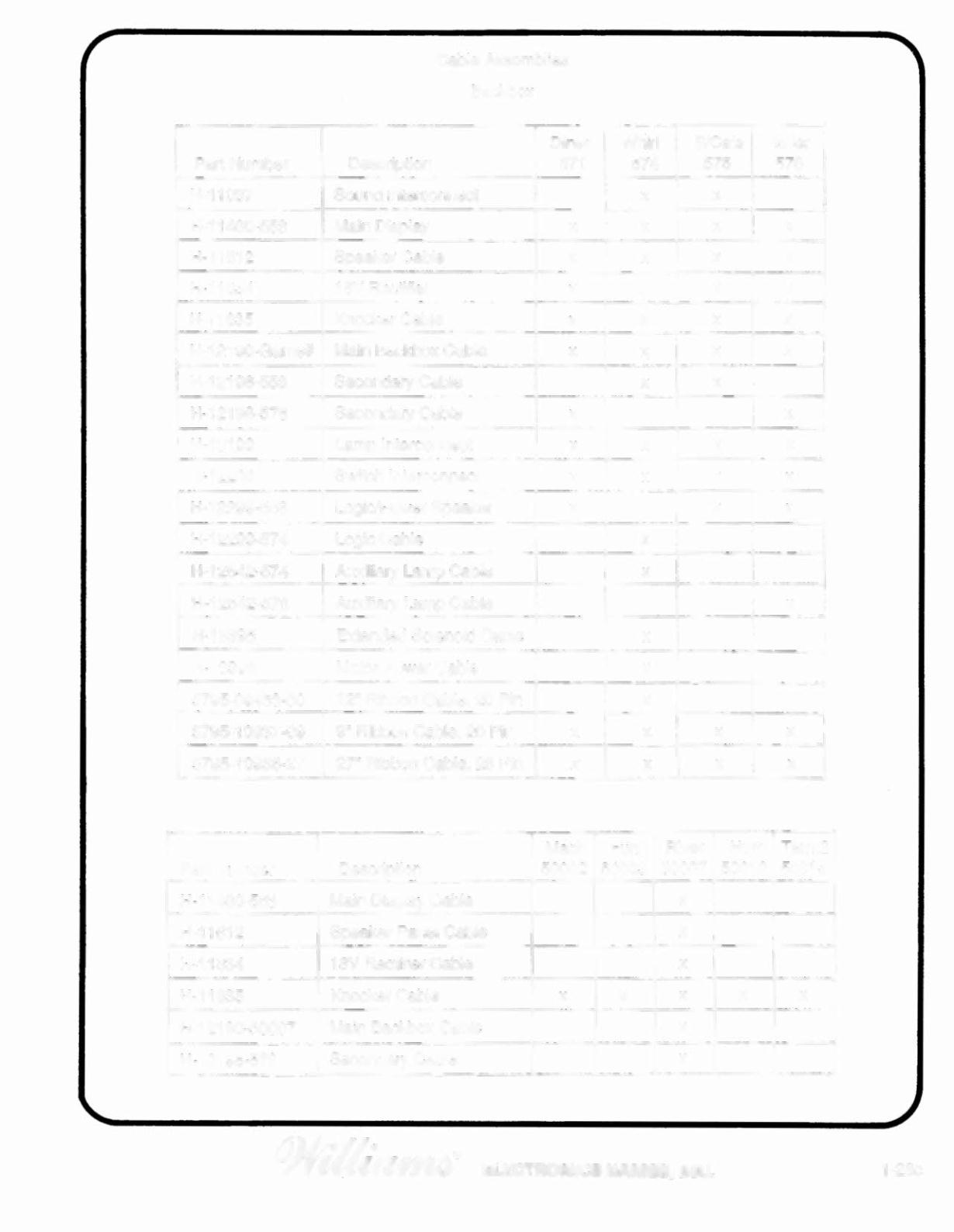

Page 109 - Williams RED Parts Catalog 16-9190-B

Cable Assemblies
Backbox
Diner Whirl BICats Roller
Part Number Description 571 574 575 576
H-11037 Sound Interconnect x x
H-11460-553 Main Display x x x x
H-11612 Speaker Cable x x x x
H-11834 18V Rectifier x x x x
H-11835 Knocker Cable x x x x
H-12190-Game# Main Backbox Cable x x x x
H-12196-553 Secondary Cable x x
H-12196-576 Secondary Cable x x
H-12199 Lamp Interconnect x x x x
H-12200 Switch Interconnect x x x x
H-12299-568 Logic/Power Speaker x x x
H-12299-574 Logic Cable x
H-12542-574 Auxiliary Lamp Cable x
H-12542-576 Auxiliary Lamp Cable x
H-13395 Extended Solenoid Cable x
H-13396 Motor Power Cable x
5795-09453-00 12" Ribbon Cable, 20 Pin x
5795-1 0937-09 9" Ribbon Cable, 20 Pin x x x x
5795-10938-27 27" Ribbon Cable, 26 Pin x x x x
Mach Fun River Hurr Term2
Part Number Description 50002 50003 50007 50012 50013
H-11460-553 Main Display Cable x
H-11612 Speaker Panel Cable x
H-11834 18V Rectifier Cable x
H-11835 Knocker Cable x x x x x
H-12190-50007 Main Backbox Cable x
H-12196-576 Secondary Cable x
1-28c
