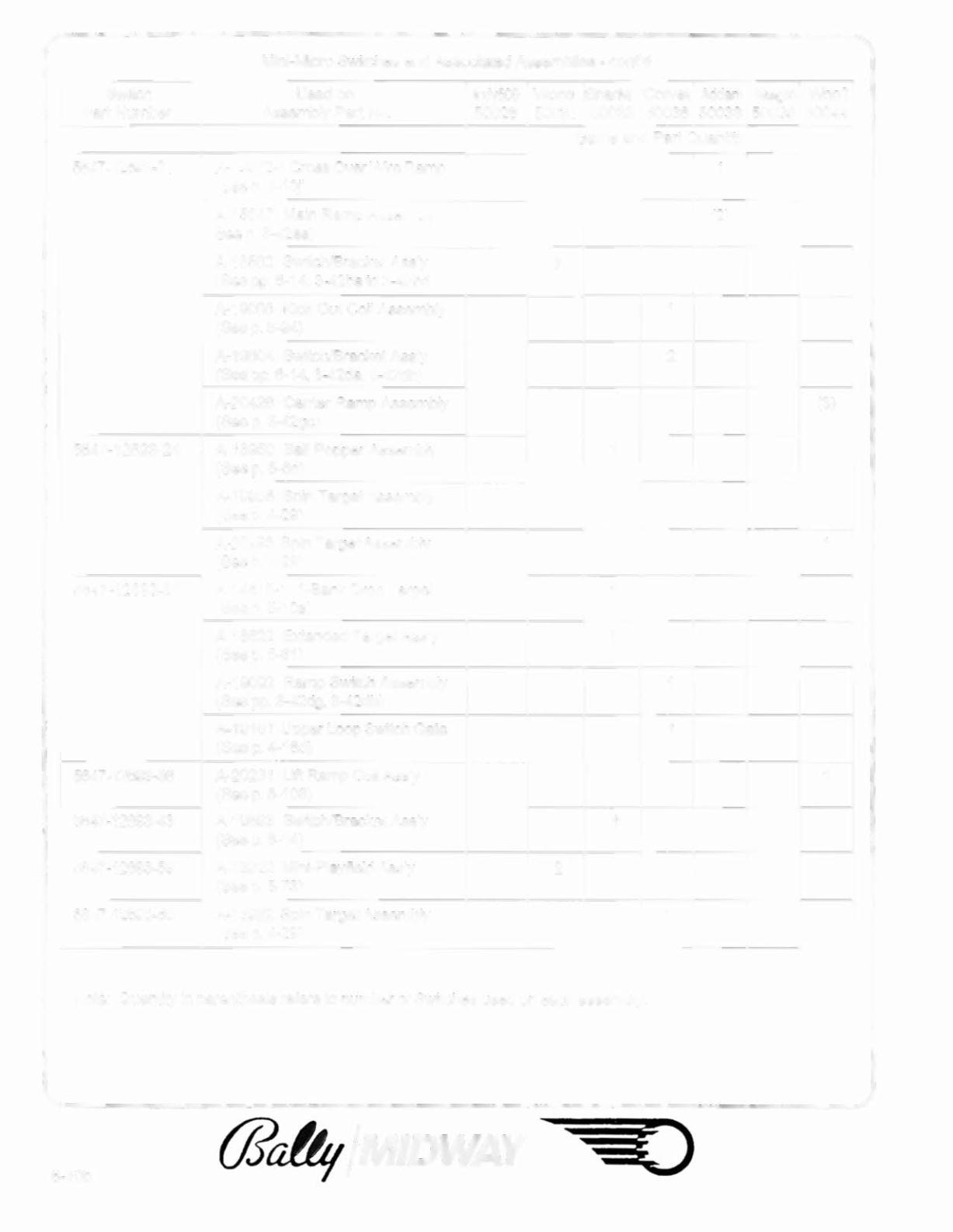

Page 552 - BallyMidway GREY Parts Catalog 16-9562-A

Mini-Micro Switches and Associated Assemblies - cont'd
Switch Used on IndySOO World Shadw Corvet Addam Magic Who?
Part Number Assembly Part No. 50026 50031 50032 50036 50038 50039 50044
Game and Part Quantity
5647-12693-21 A-14972-1 Cross Over Wire Ramp 1
(See p, 4-1 OJ)
A-15047 Main Ramp Assembly (2)
See p. 3-42ea)
A-18562 Switch/Bracket Ass'y 3
(See pp. 6-14, 3-42ba to 3-42bd
A-19006 Kick Out Coil Assembly 1
(See p. 5-94)
A-19604 Switch/Bracket Ass'y 2
(See pp. 6-14, 3-42da, 3-42db)
A-20426 Center Ramp Assembly (3)
(See p. 3-42gc)
564 7-12693-24 A-18950 Ball Popper Assembly 1
(See p. 5-5c)
A-19956 Spin Target Assembly 1
(See p. 4-29)
A-20493 Spin Target Assembly 1
(See p, 4-29)
5647-12693-31 A-14615-1 1-Bank Drop Target 1
(See p. 5-10a)
A-18622 Extended Target Ass'y 1
(See p. 5-81)
A-19092 Ramp Switch Assembly 1
(See pp. 3-42dg, 3-42dh)
A-19151 Upper Loop Switch Gate 1
(See p, 4-16d)
5647-12693-36 A-20231 Lift Ramp Coil Ass'y 1
(See p. 5-108)
5647-12693-43 A-19693 Switch/Bracket Ass'y 1
(See p. 6-14)
5647-12693-59 A-18222 Mini-Playfield Ass'y 2
(Seep. 5-73)
5647-12693-60 A-18982 Spin Target Assembly 1
(See p. 4-29)
Note: Quantity in parenthesis refers to number of Switches used on each assembly.
6-10b (jJaI!&j /MIDWAY
