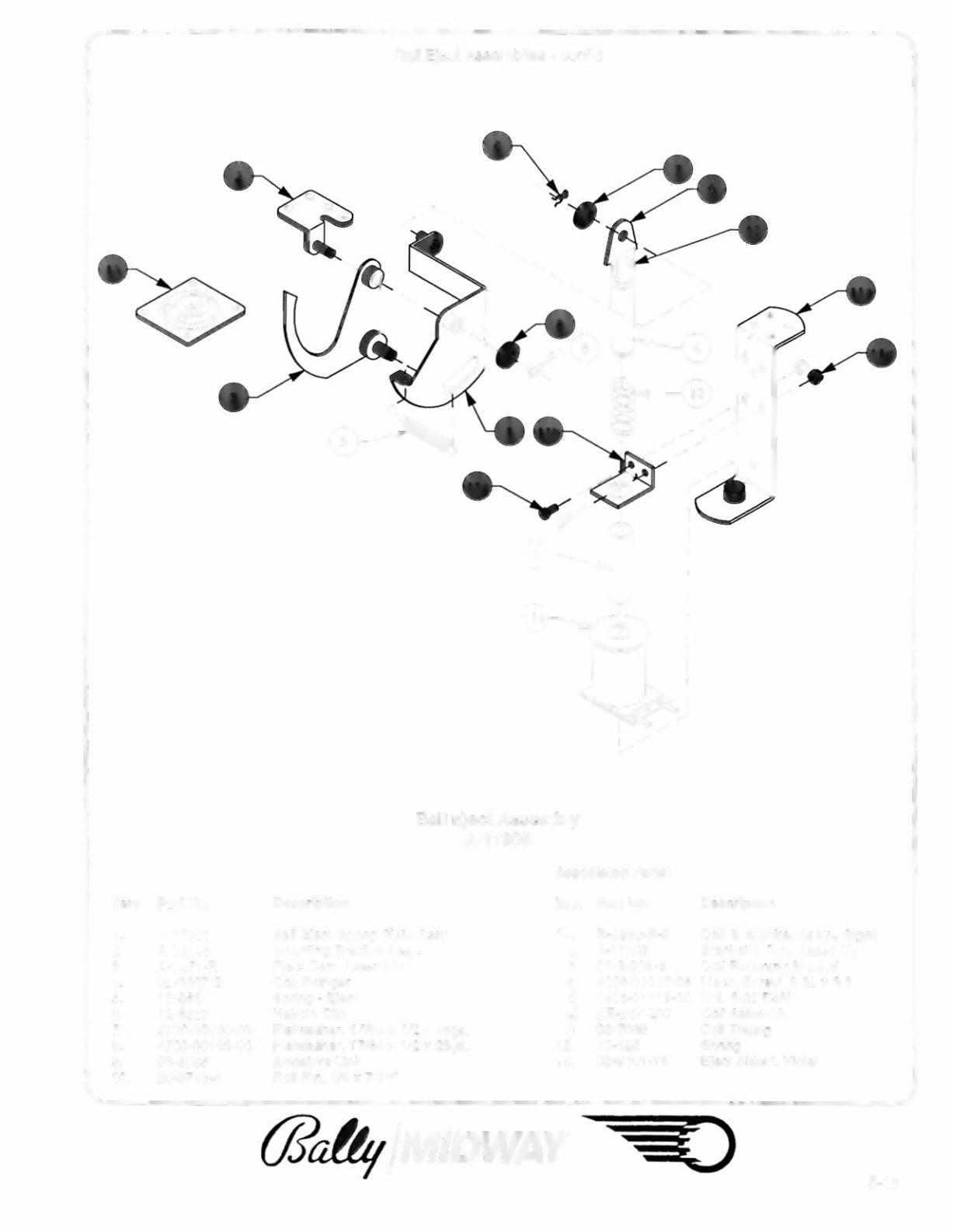

Ball Eject Assemblies - cont'd
Ball Eject Assembly
A·17908
Associated Parts:
Item Part No,
Description
Item Part No.
Description
1 .
A-17907
Ball Ejecl Spring Plate Assy.
11.
B-9362-R-3
Coil & Bracket Assy., Right
2.
A-18146
Mounting Bracket Assy.
a) A-17808
Bracket & Stop Assembly
3.
A-7471-R
Eject Cam Assembly
b) 01-8-508-S
Coil Retaining Bracket
4.
02-3407-2
Coil Plunger
c) 4006-01017-06 Mach. Screw, 6-32 x 31S'
5.
10-362
Spring - Eject
d) 4406-01119-00 Nut, 6-32 ESN
6.
12-6227
Hairpin Clip
e) AE-26-1200
Coil Assembly
7.
4700-00030-00 Flatwasher, 17/64 x 1/2 x 15ga.
f)
03-7066
Coil Tubing
S.
4700-00103-00 Flatwasher, 17/64 x 1/2 x 28ga.
12.
10-128
Spring
9.
03-8085
Armature Link
13.
03-9101-18
Eject Shield, Violet
10.
20-8716-5
Roll Pin, 1/8 x 7/16'
