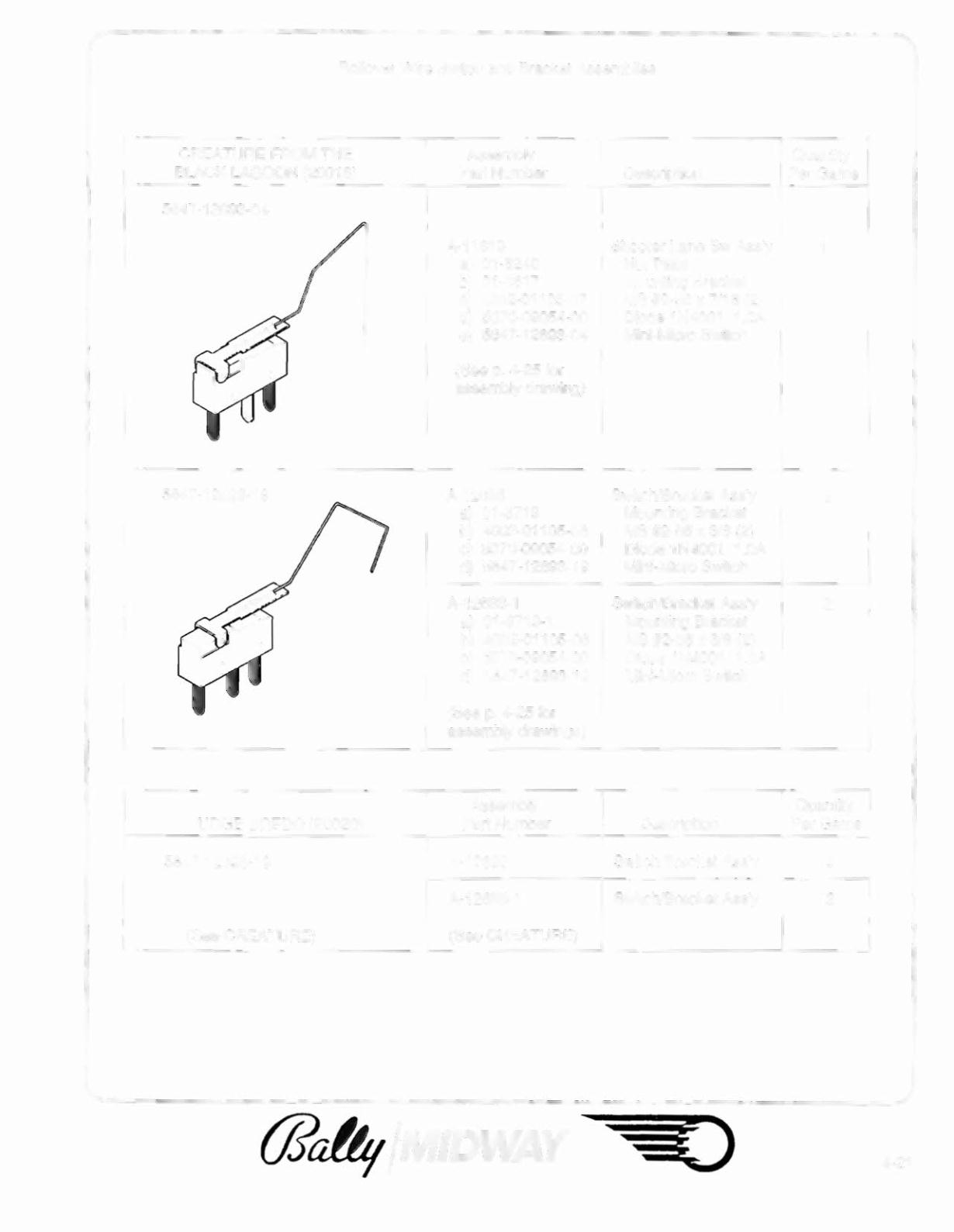

Page 371 - BallyMidway GREY Parts Catalog 16-9562-A

Rollover Wire Switch and Bracket Assemblies
CREATURE FROM THE
BLACK LAGOON (20018)
564 7-12693-04
Assembly
Part Number
A-11619
a) 01-8240
b) 01-8617
c) 4002-01105-07
d) 5070-09054-00
e) 5647-12693-04
(See p. 4-25 for
assembly drawing)
Description
Shooter Lane Sw Ass'y
Nut Plate
Mounting Bracket
MS #2-56 x 7/16 (2)
Diode 1N4001 1.OA
Mini-Micro Switch
Quantity
Per Game
5647-12693-19 A-12688
a) 01-8719
b) 4002-01105-06
c) 5070-09054-00
d) 5647-12693-19
Switch/Bracket Ass'y
Mounting Bracket
MS #2-56 x 3/8 (2)
Diode 1N4001 1 .OA
Mini-Micro Switch
8
A-12688-1
a) 01-8719-1
b} 4002-01105-06
c) 5070-09054-00
d) 5647-12693-19
(See p. 4-25 for
assembly drawings)
Switch/Bracket Ass'y
Mounting Bracket
MS #2-56 x 3/8 (2)
Diode 1N4001 1.0A
Mini-Micro Switch
2
Assembly Quantity
JUDGE DREDD (20020) Part Number Description Per Game
5647-12693-19 A-12688 Switch/Bracket Ass'y 9
A-12688-1 Switch/Bracket Ass'y 2
(See CREATURE) (See CREATURE)
(jJai!fL; /MIDWAY 4-21
