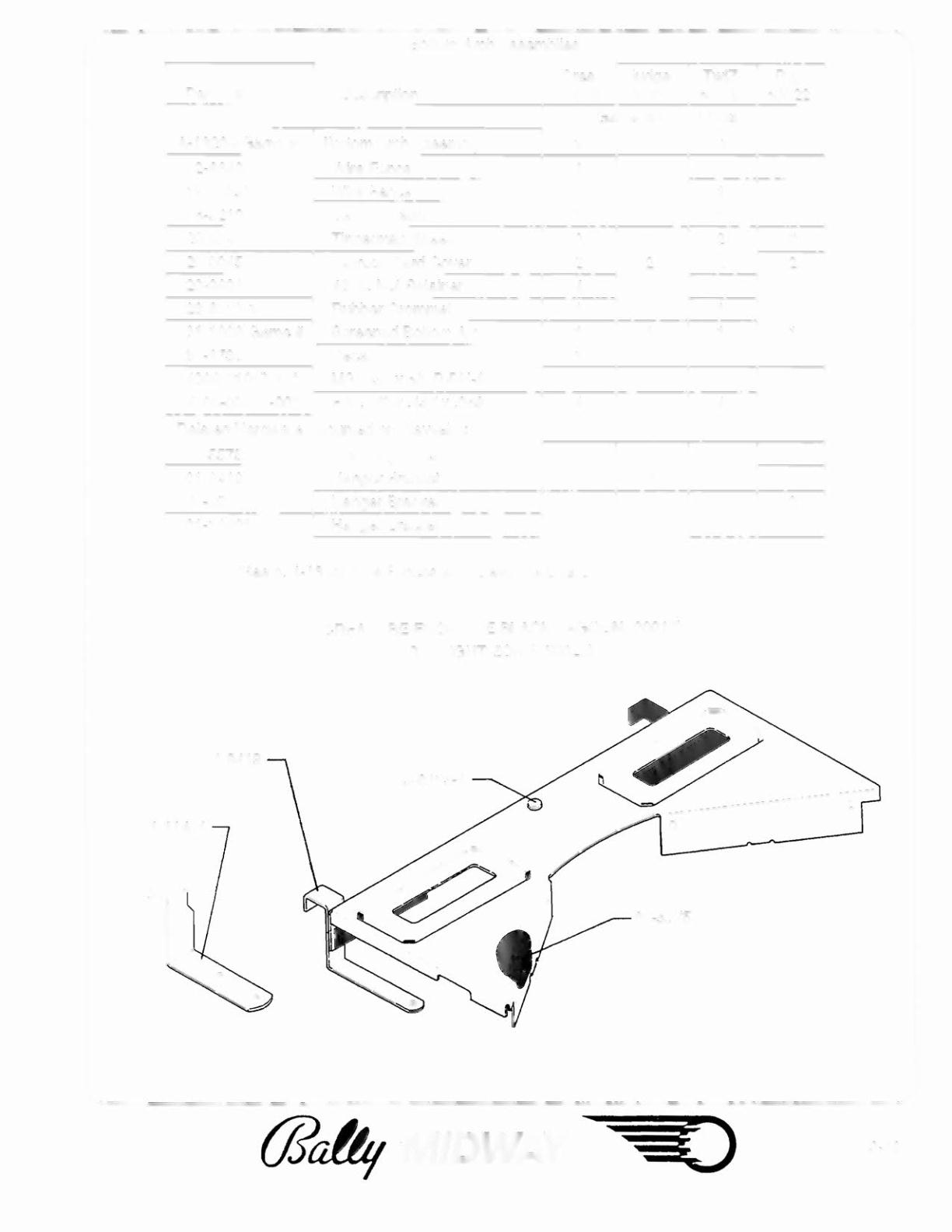

Page 305 - BallyMidway GREY Parts Catalog 16-9562-A

- -
Bottom Arch Assemblies
Crea Judge TwiZ Pop
Part Number Description 20018 20020 50020 50022
Game and Part Quantity
A-13204·Game # Bottom Arch Assembly x x x x
12-6842* Wire Fence 1
12·7089· Wire Fence 1
16-9210 Caution Label 1 1 1 1
20·9041 Tinnerman Speednut 2 2 2 2
20-9045 Instruct. Card Cover 2 2 2 2
20-9601· #8-32 Nut Retainer 4 4
23-6313-1 Rubber Grommet 1 1
31-100B-Game # Screened Bottom Arch 1 1 1 1
31-1738 Decal 1
4008-01017·10* MS 8·32 x 5/8 P·RH-S 4 4
4700-00011-00· FW .172 x .437 x .059 4 4
Related Hardware (Mounted on Playfield):
01-5575 Mounting Bracket 2 2
01-8419 Hanger Bracket 2 2
01-9211 Hanger Bracket 2
01-11401 Hanger Bracket 2
·See p. 4-13 for Wire Fences and related hardware.
CREATURE FROM THE BLACK LAGOON (20018)
lWlLlGHT ZONE (50020)
01-8419
01-11401
01-5575
(jJam; IM/DWAY 3·49
