Page 272 - BallyMidway GREY Parts Catalog 16-9562-A

SEO Version

3-42dc
CORVETTE (50036)
Ramp Assemblies - cont'd
Note: See pp.
5-87
thru
5-91
for

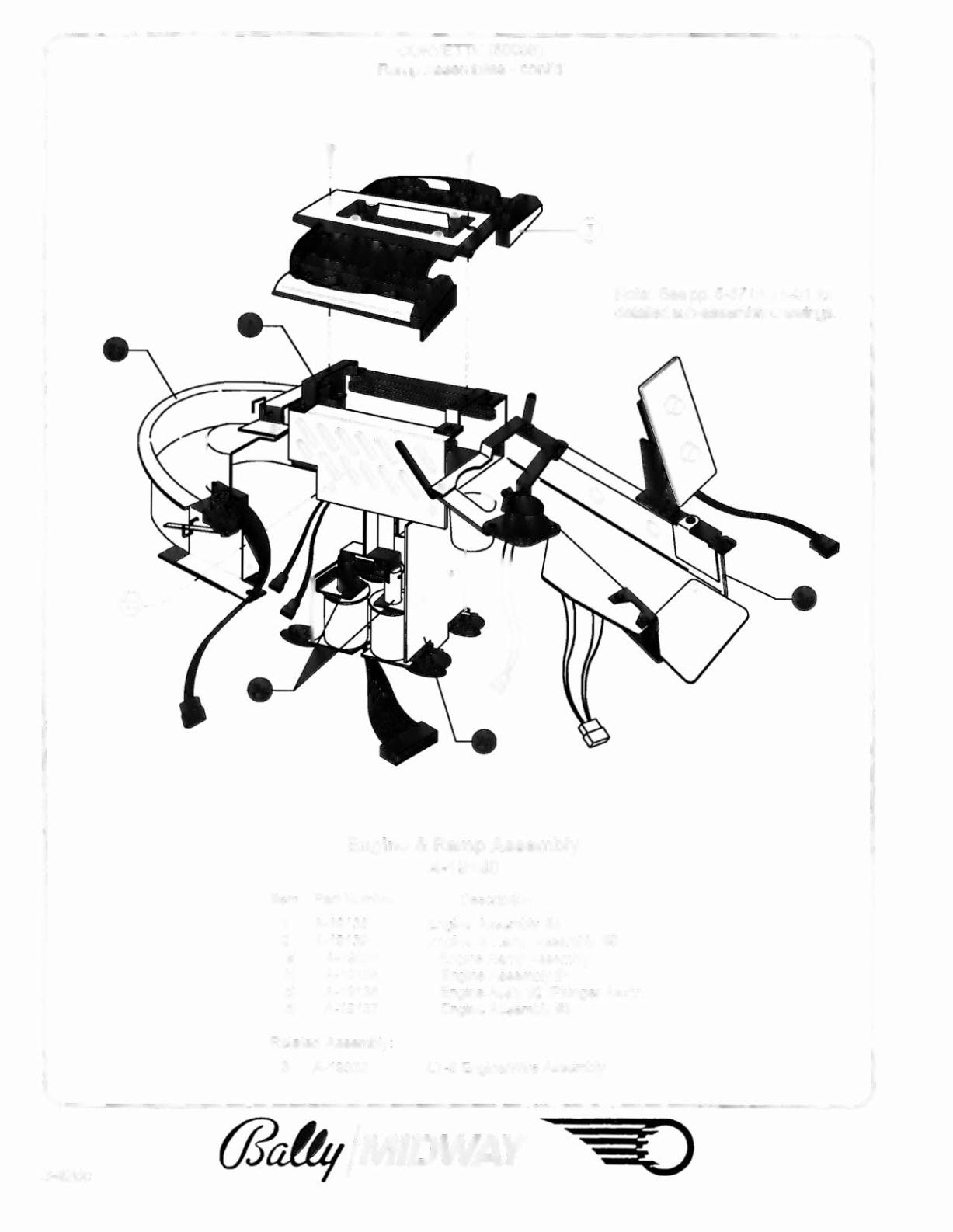

detailed sub-assembly drawings.
Engine
&
Ramp Assembly
A-19140
Item Part Number
1 A-19138
2 A-19139
a)
A-19008
b)
A-19135
c)
A-19136
d)
A-19137
Description
Engine Assembly #4
Engine & Ramp Assembly #5
Engine Ramp Assembly
Engine Assembly #1
Engine Ass'y #2 (Plunger Ass'y)
Engine Assembly #3
Related Assembly:
3 A-19332
LT-5 EnginelllVire Assembly
