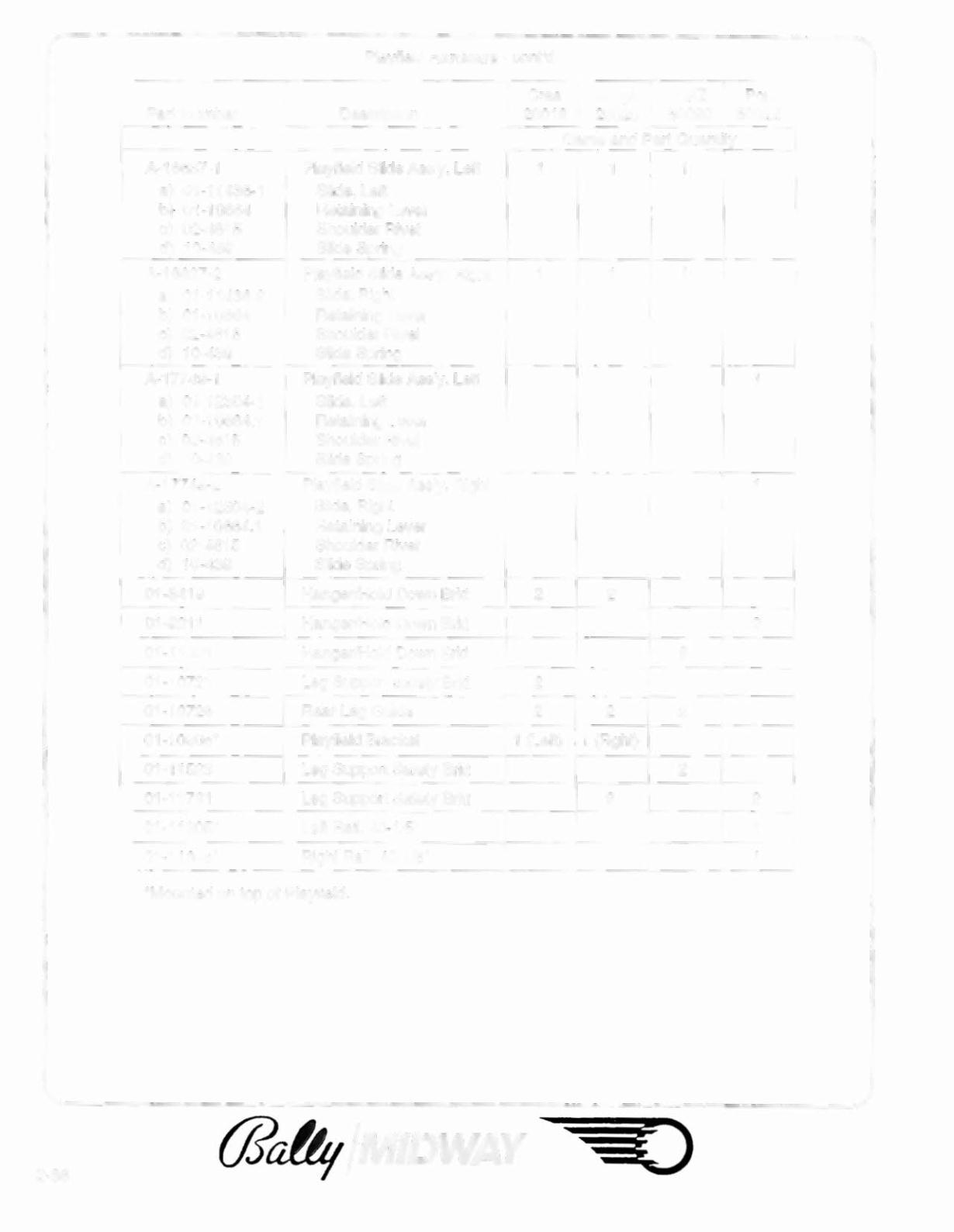

2-36
Playfield Hardware - cont'd
Crea Judge TwiZ Pop
Part Number
Description
20018 20020 50020 50022
Game and Part Quantity
A-16637-1
Playfield Slide Ass'y, Left
1
1
1
a) 01-11436-1
Slide,Left
b) 01-10664
Retaining Lever
c) 02-4615
Shoulder Rivet
d) 10-439
Slide Spring
A-16637-2
Playtield Slide Ass'y, Right
1
1
1
a) 01-11436-2
Slide, Right
b) 01-10664
Retaining Lever
c) 02-4615
Shoulder Rivet
d) 10-439
Slide Spring
A-17749-1
Playfield Slide
Ass'y,
Left
1
a) 01-12304-1
SUde,Left
b) 01-10664.1
Retaining Lever
c) 02-4615
Shoulder Rivet
d) 10-439
Slide Spring
A-17749-2
Playfield Slide Ass'y, Right
1
a) 01-12304-2
Slide, Right
b) 01-10664.1
Retaining Lever
c) 02-4615
Shoulder Rivet
d) 10-439
Slide Spring
01-8419
Hanger/Hold Down Brkt
2
2
01-9211
Hanger/Hold Down Brkt
2
01-11401
Hanger/Hold Down Brkt
2
01-10721
Leg Support Safety Brkt
2
01-10726
Rear Leg Guide
2
2
2
01-10905-
Playfield Bracket
1 (Left) 1 (Rght)
01-11523
Leg Support Safety Brkt
2
01-11781
Leg Support Safety Brkt
2
2
01-11805-
Left Rail, 40-1/5"
1
01·11806-
Right Rail, 40-1/5-
1
*Mounted on top of Playfield.
(j]af6;
/MIDWAY
