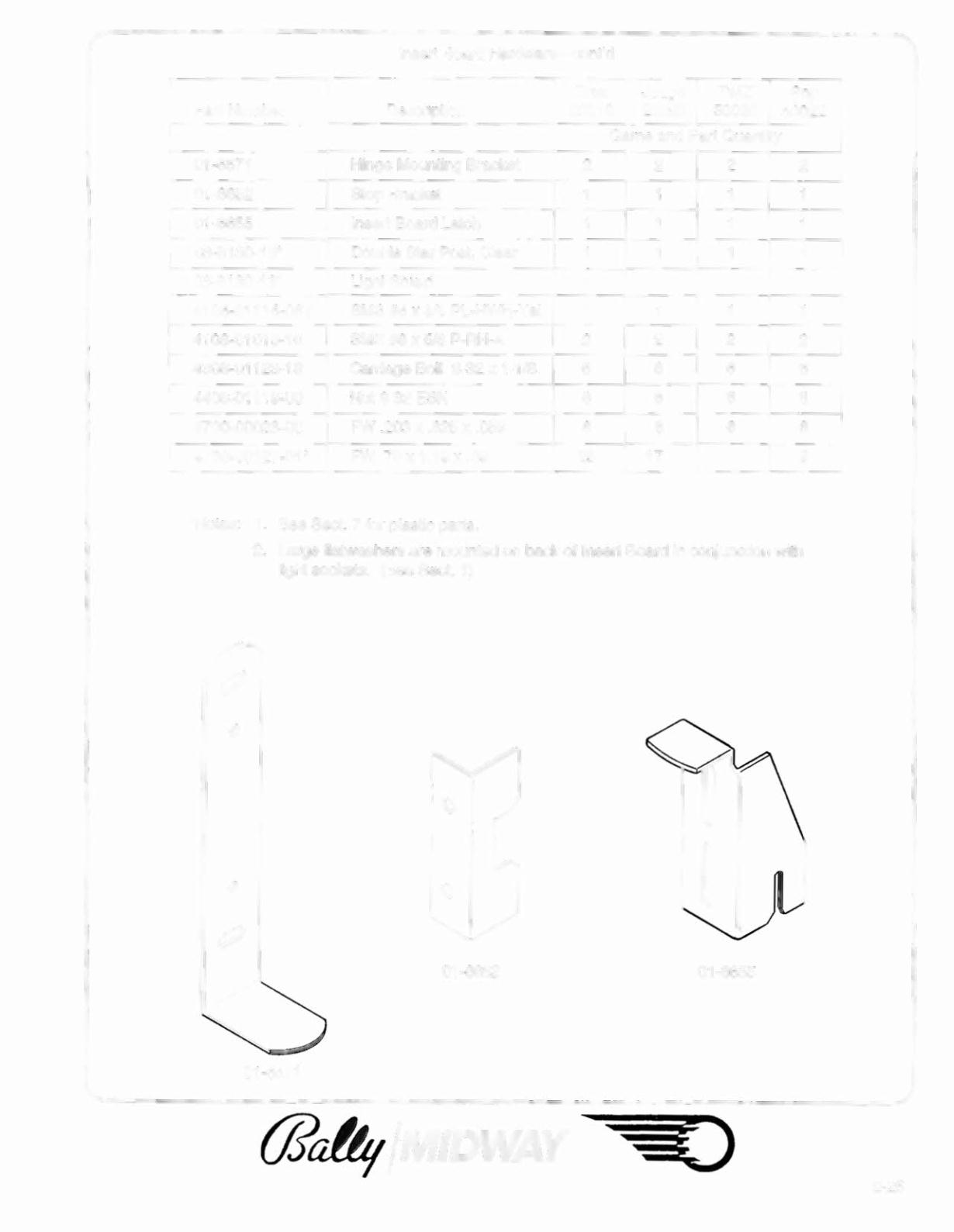

Insert Board Hardware· cont'd
Crea Judge
TwiZ
Pop
Part Number
Description
20018 20020 50020 50022
Game and Part Quantity
01·6571
Hinge Mounting Bracket
2
2
2
2
01·6652
Stop Bracket
1
1
1
1
01-6655
Insert Board Latch
1
1
1
1
03-8130-13*
Double Star Post, Clear
1
1
1
1
03-8130-13*
Ught Shield
1
4106-01115-06Y SMS #6 x 3/8 PL-HWH-Yel
1
1
1
1
4108-01019-10
5MS #8 x 5/8 P-RH-A
2
2
2
2
4308-01123·18
Carriage Bolt 8·32 x 1-1/8
6
6
6
6
4408·01119·00
Nut 8·32 ESN
6
6
6
6
4700-00023-00
FW .203 x .625 x .059
6
6
6
6
4700-00127-01 *
FW .70 x 1.19 x .09
25
17
8
*Notes: 1. See Sect. 7 for plastic parts.
2. Large flatwashers are mounted on back of Insert Board in conjunction with
light sockets. (See Sect. 1)
(/)
01-6652
01·6571
(jJai!fL;
/MIDWAY
2-25
