Page 117 - BallyMidway GREY Parts Catalog 16-9562-A

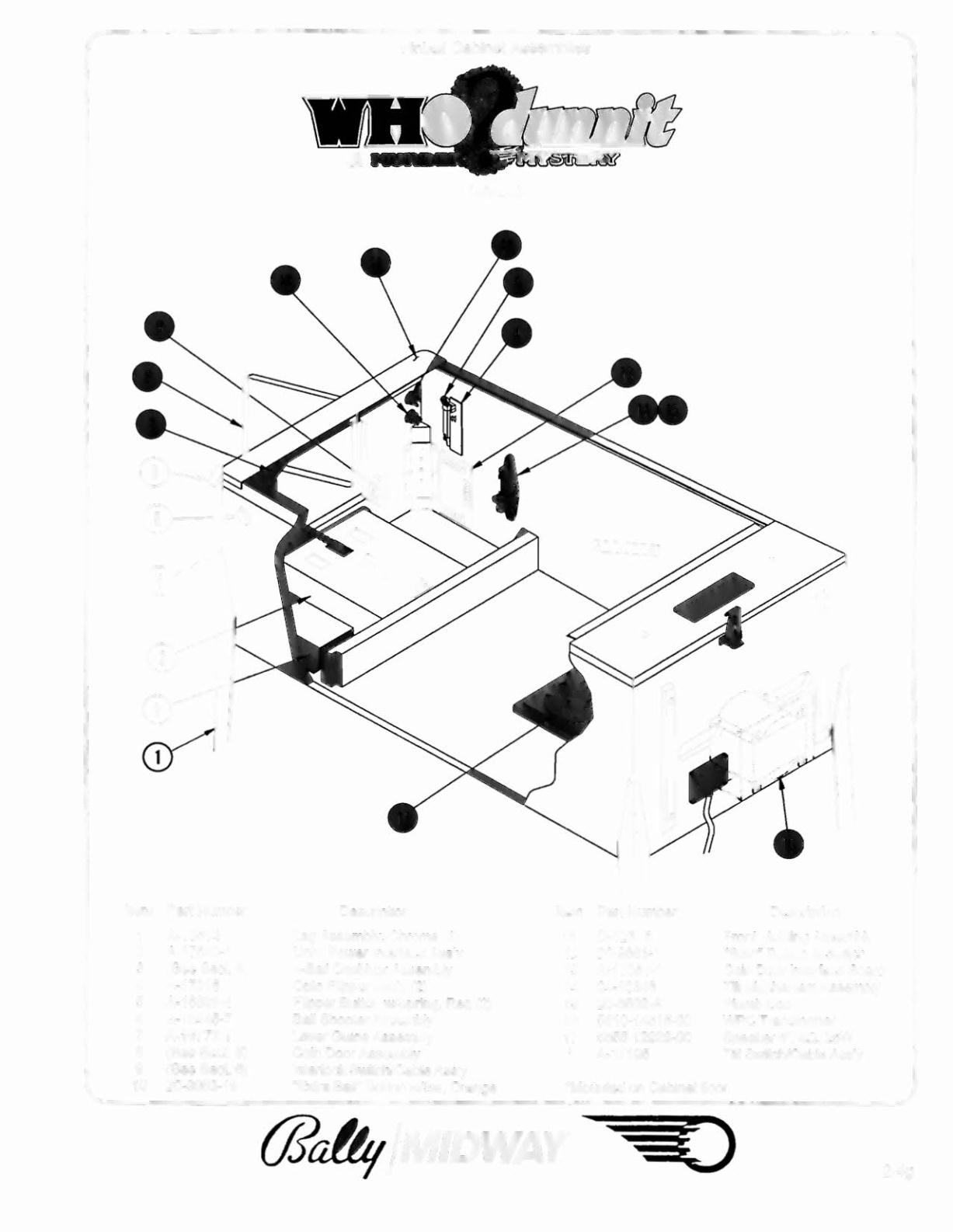

Pinball Cabinet Assemblies
(50044)
Item Part Number Description Item Part Number Description
1 A-19514 leg Assembly, Chrome (4) 11 0-12615 Front Molding Assembly
2 A-17540-1 Unlv. Power Interface Ass'y 12 20-9663-1 "Start" Button w/Swilch
3 (See Sect 8) 4-Ball Cashbox Assembly 13 A-17051-1 Coin Door Interface Board
4 A-17316 Opto Flipper Ass'y (2) 14 04-10346 Tilt Mechanism Assembly
5 A-16883-4 Flipper Button w/Spring, Red (2) 15 20-6502-A Plumb Bob
6 B-12445-7 Ball Shooter Assembly 16 5610-14515-00 WPC Transformer
7 A-16773-1 lever Guide Assembly 17 5555-12929-00 Speaker 6", 40, 25W
8 (See Sect. 8) Coin Door Assembly A-17195 Tilt Switch/Cable Ass'y
9 (See Sect. 6) Interlock Switch/Cable Ass'y
10 20-9663-18 "Extra Ball" Button w/Sw, Orange ·Mounted on Cabinet floor.
