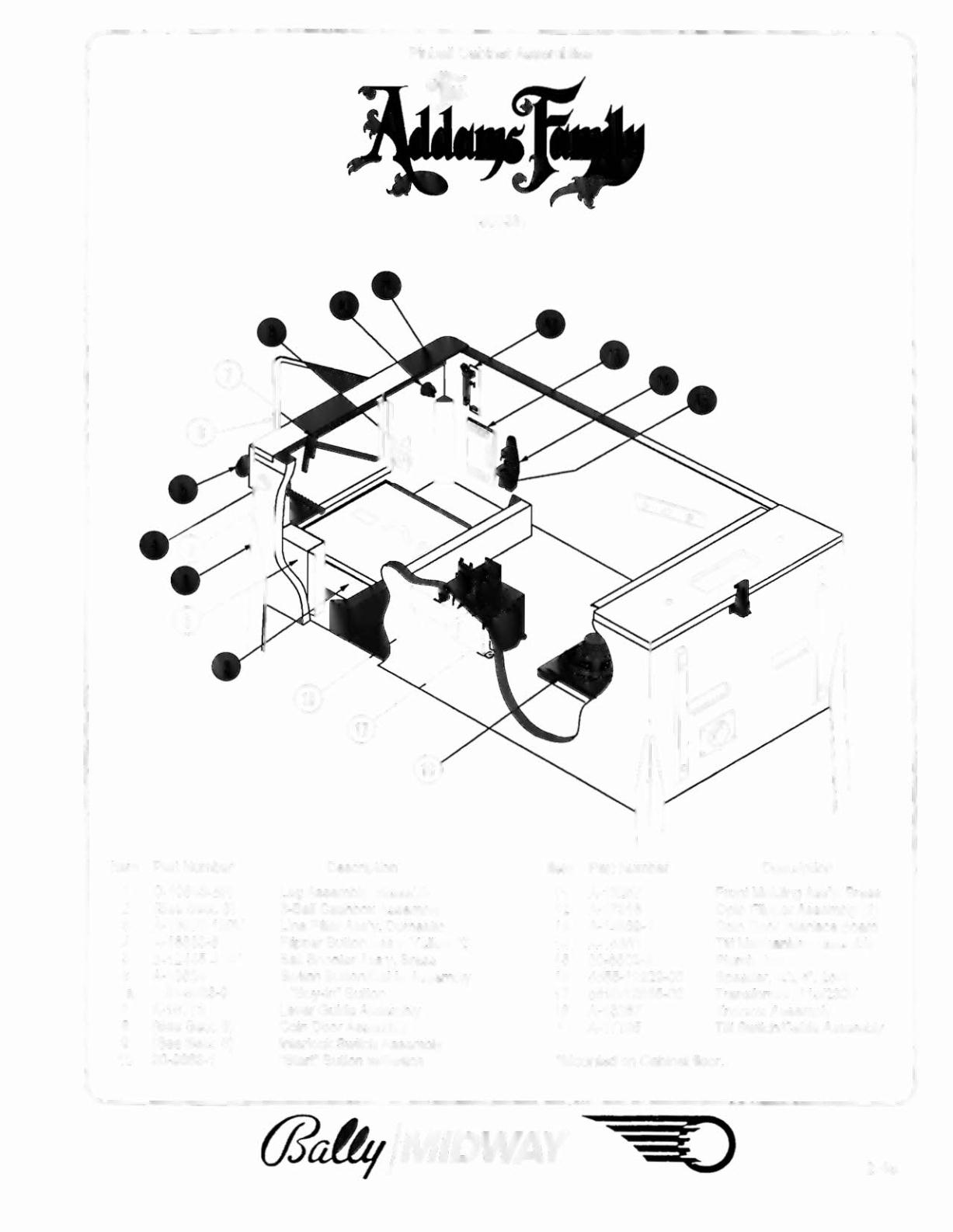

Pinball Cabinet Assemblies
(S003S)
/
/
/
/
® / '
@
Item Part Number
Description
Item Part Number
Description
1 C-10843-BR
Leg Assembly, Brass(4)
11 A-18257
Front Molding Ass'y, Brass
2 (See Sect. 8)
3-Ball Cashbox Assembly
12 A-17316
Oplo Flipper Assembly (2)
3 A-16970-120V
Line Filter Ass'y, Domestic
13 A-14669-1
Coin Door Interface Board
4
A-16883-6
Flipper Button Ass'y, Yellow (2)
14
A-15361
Tilt Mechanism Assembly
5 B-12445-4-BR
Ball Shooter Ass'y, Brass
15 20-6502-A
Plumb Bob
6 A-18524
Switch Button/Cable Assembly
16 5555-12929-00
Speaker, 40, 6", 25W
a)
20-9663-9
~Buy-In" Button
17 5610-12835-00
Transformer, 1151230V
7 A-16773
Lever Guide Assembly
18 A-15267
Knocker Assembly
8 (See Sect. 8)
Coin Door Assembly
*
A-17195
Tilt Switch/Cable Assembly
9 (See Sect. 6)
Interlock Switch Assembly
10 20-9663-1
"Start" Button w/Switch
*Mounted on Cabinet floor.
