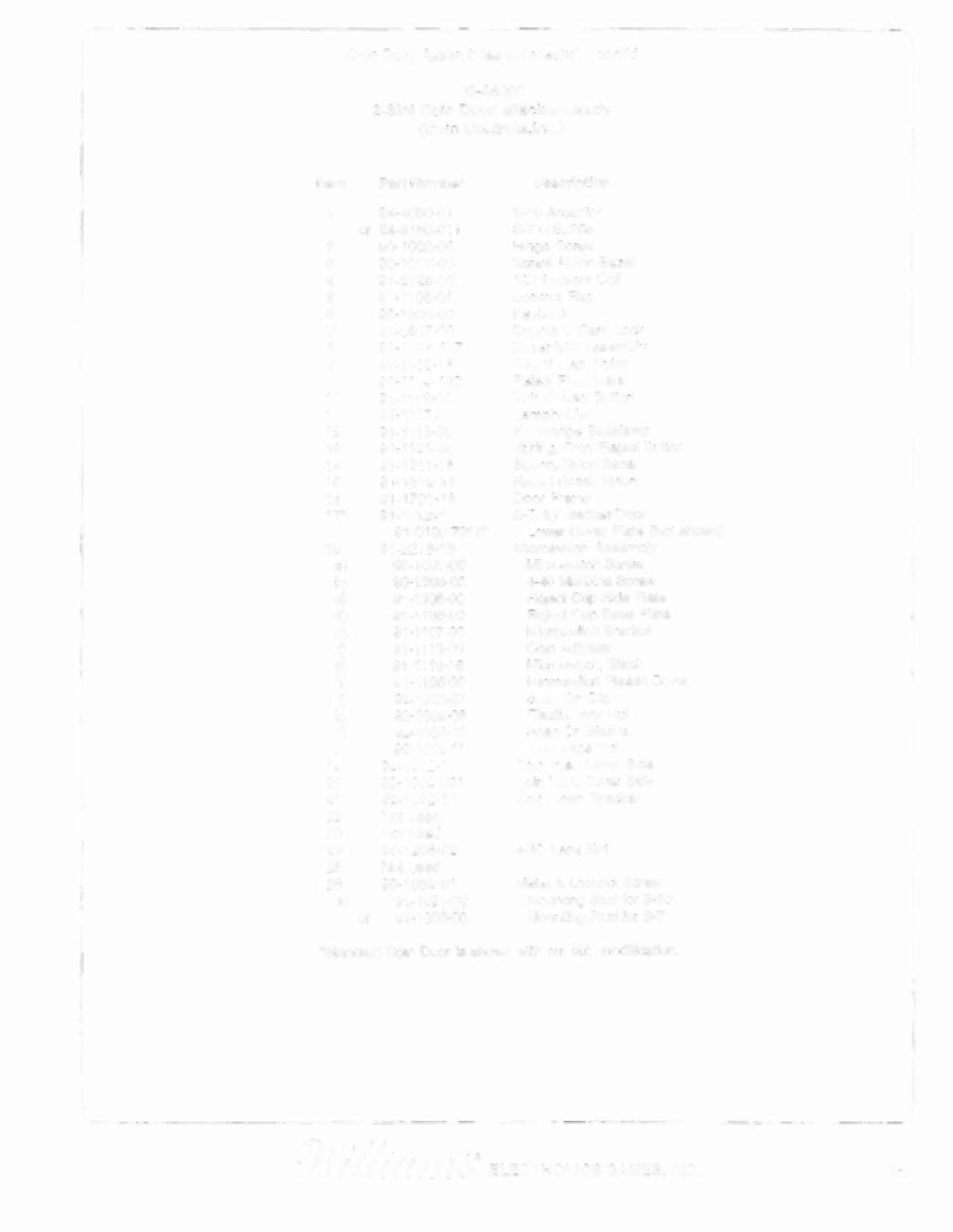

"Standard Coin Door is shown with cut out modification.
Coin Door Assemblies (Domestic) - cont'd
09-46000
2-Slot Coin Door, Stacker Ready
(Coin Controls,lnc.)
Item Part Number
Description
24·4050-01
S-10 Acceptor
or 24-4150-011
S-7 U.S. 25~
2
90-1002-00
Hinge Screw
3
90-1017-00
Screw, Nylon Bezel
4
91-2125-00
12V Lockout Coil
5
91-1108-01
Lockout Flap
6
90-1300-00
Keyhook
7
91-0547-00
Double D Cam Lock
8
91-1008-107
Baseplate Assembly
9
91-1109-16
Reject Flap, Nylon
91 -1109-162
Reject Flap, Metal
10
91-1113-02
Entry/Rejeci Button
11
91-1117-00
Lampholder
12
91-1118-00
6V Wedge Baselamp
13
91-1121-00
Spring, Entry/Reject Button
14
91-1311-16
Button, Nylon Bezel
15
91-1312-16
Reject Bezel, Nylon
16
91-1701-16
Door Frame
IT*
91-1702-·
2-Entry Stacker Door
91-0100-7016"
Lower Cover Plate (Not shown)
18
91-2216-16
Microswilch Assembly
a)
90-1007-00
Microswitch Screw
b)
90-1206-02
4-40 Machine Screw
c)
91-1105-00
Reject Cup Side Plate
d)
91-1106-00
Reject Cup Base Plate
e)
91-1107-00
Microswitch Bracket
f)
91-1110-00
Coin Adjuster
g)
9101116-16
Microswitch, Black
h)
91-1125-00
Microswitch Plastic Cover
j)
92-1002-07
Snap On Clip
k)
92-1002-08
Elastic Lock Nut
I)
92-1002-09
Snap On Sleeve
m)
92-1002-11
4-40 Keps Nut
19
92-1002-01
Coin Inlet, Lamp Side
20
92-1002-021
Coin Inlet, Cover Side
21
92-1002-10
Hold Down Bracket
22
Not used
23
Not used
24
90-1206-02
4-40 Keps Nut
25
Not used
26
90-1032-01
Meter & Lockout Screw
a)
91-1021-00
Mounting Stud for S-1 0
or
91-1036-00
Mounting Stud for S-7
O)f~®
