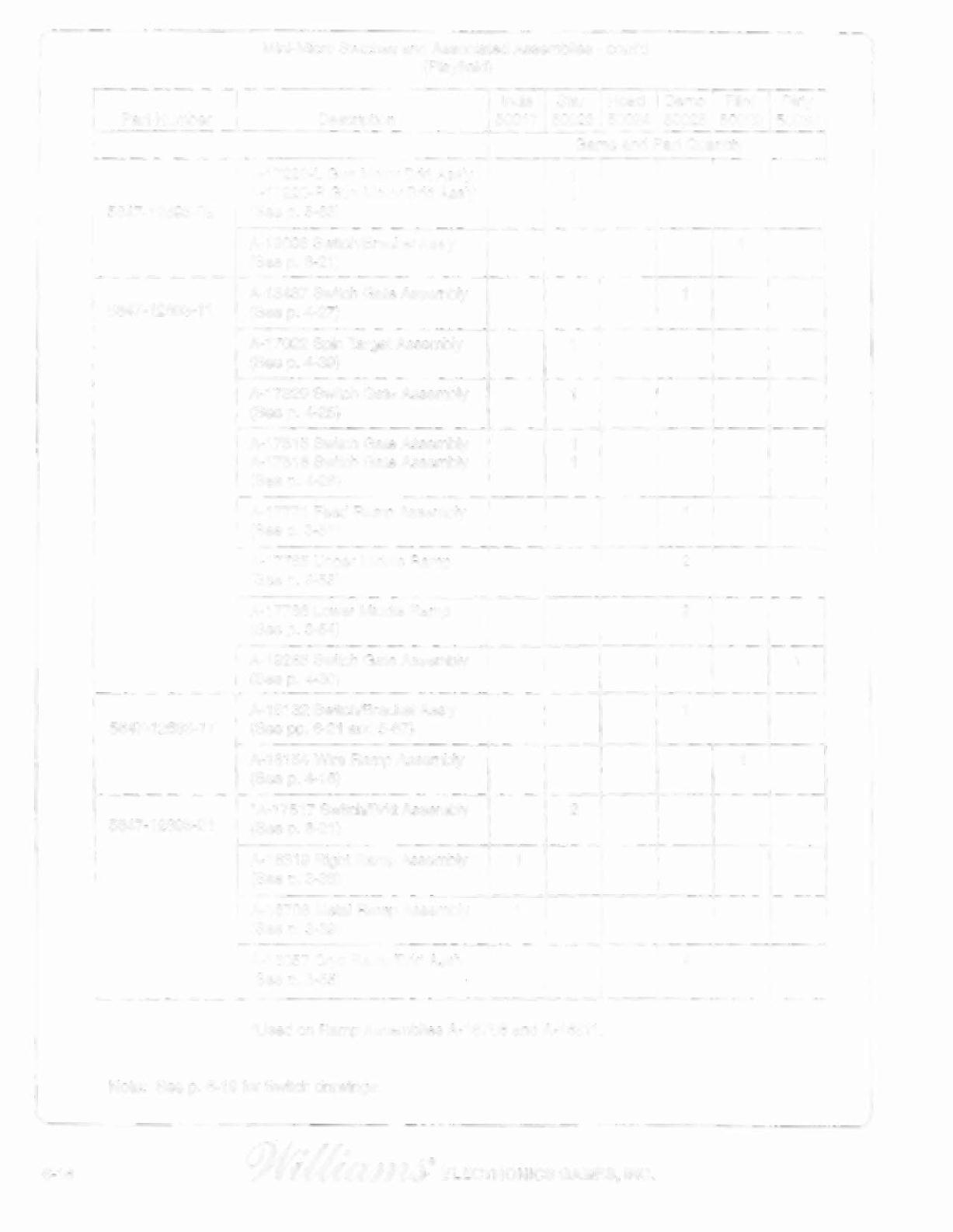

Page 346 - Williams GREEN Parts Catalog 16-9932

SEO Version

6-16
Mini-Micro Swtches and Associated Assemblies - cont'd
(Playfield)
India Star
Road Demo Flint
Dirty
Part Number
Description
50017 50023 50024 50028 50029 50030
Game and Part Quantity
A-17220-L Gun Motor Brkt Ass'y
1
A-17220-R Gun Motor Brkt Ass'y
1
5647-12693-08
(See p. 5-63)
A-19098 Switch/Bracket Ass'y
1
(See p. 6-21)
A-13487 Switch Gate Assembly
1
5647-12693-11
(See p. 4-27)
A-17022 Spin Target Assembly
'1
(See p. 4-39)
A-17329 Switch Gate Assembly
'1
(See p. 4-25)
A-17515 Switch Gate Assembly
1
A-17516 Switch Gate Assembly
1
(See p. 4-26)
A-17771 Feed Ramp Assembly
'1
(See p. 3-51)
A-1778S Upper Middle Ramp
2
(See p. 3-53)
A-17786 Lower Middle Ramp
2
(See p. 3-54)
A-19265 Switch Gate Assembly
1
(See p. 4-30)
A-18132 Switchl8racket Ass'y
1
5647-12693-17
(See pp. 6-21 and 5-67)
A-181S4 Wire Ramp Assembly
1
(See p. 4-16)
*A-17517 Switch/Brkt Assembly
2
5647-12693-21
(See p. 6-21)
A-16319 Right Ramp Assembly
1
(See p. 3-38)
A-16706 Metal Ramp Assembly
'1
(See p. 3-39)
A-180S7 Cryo Ramp/Brkt Ass'y
4
(See p. 3-55)
"Used on Ramp Assemblies A-16756 and A-16811.
Note: See p. 6-19 for Switch drawings.
