Unique Assemblies - cont'd

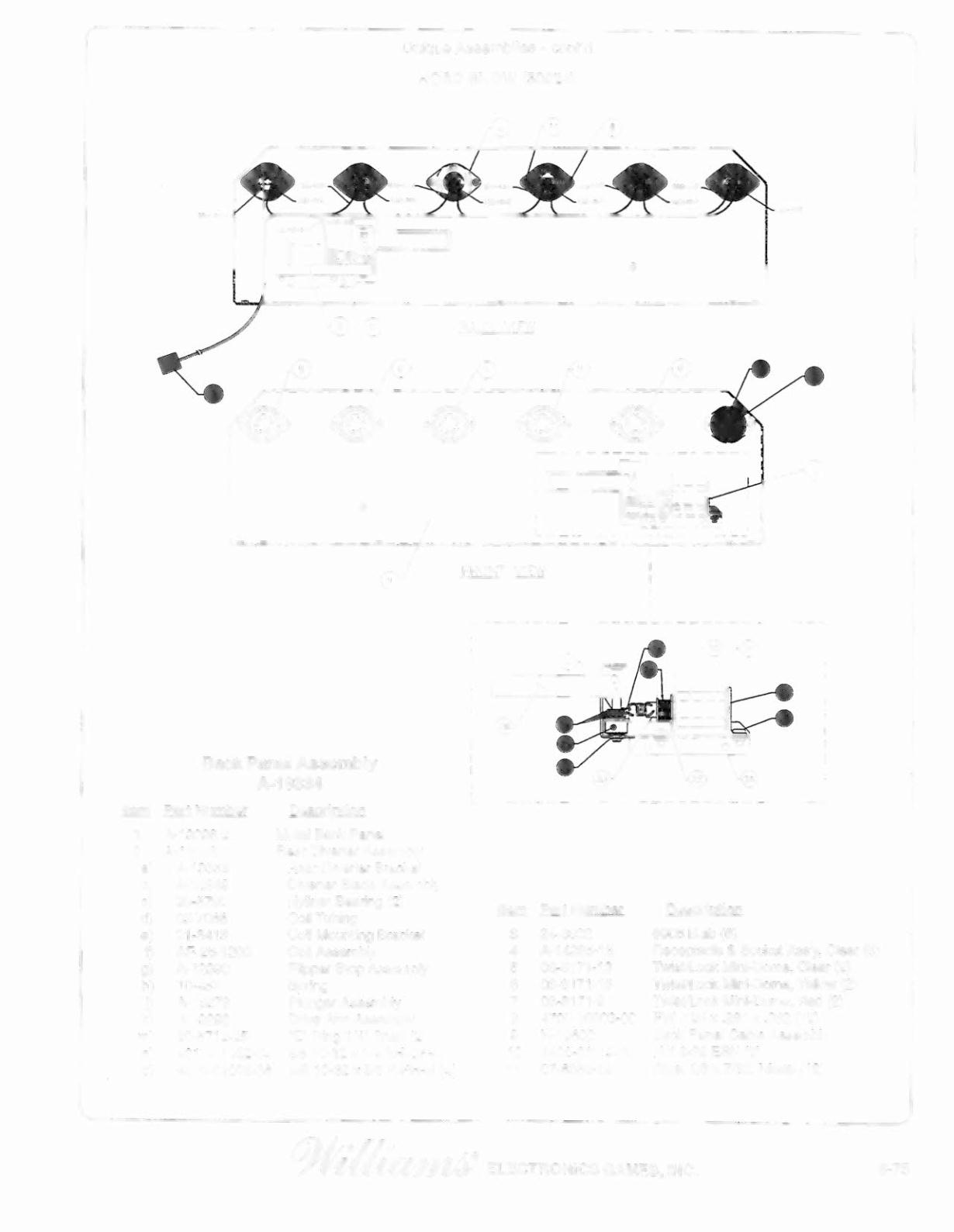

ROAD SHOW (50024)
Back Panel Assembly
A-19334
Item Part Number
A-19298.2
2 A-18948
a) A-19333
b) A-18949
c) 20-8790
d) 03-7066
e) 01-8413
f)
AE-26-1200
g) A-12390
h)
10-437
j)
A-13278
k)
A-19293
m) 20-8712-25
n) 4010-01082-04
p) 4010-01008-06
Description
Metal Back Panel
Rear Diverter Assembly
Rear Diverter Bracket
Diverter Blade Assembly
Nyliner Bearing (2)
Coil Tubing
Coil Mounting Bracket
Coil Assembly
Flipper Stop Assembly
Spring
Plunger Assembly
Drive Arm Assembly
"E" Ring 1/4" Shaft (2)
SS 10-32 x
1/4
SH-CP-N
MS 10-32 x
3/8
P-PH-N (4)
BACK VIEW
I
I
I
I
I
r------------L-----------l
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
L
J
FRONT VIEW
Item Part Number
3 24-8802
4 A-14265-13
5 03-8171-13
6 03-8171-16
7 03-8171-9
8 4700-00003-00
9 H-19602
10 4408-01119-00
11 07-6688-19
Description
#906 Bulb (6)
Receptacle
&
Socket Ass'y, Clear (6)
Twist/Lock Mini-Dome, Clear (2)
Twist/Lock Mini-Dome, Yellow (2)
Twist/Lock Mini-Dome, Red (2)
FW .125 x .281 x .032 (12)
Back Panel Cable Assembly
Nut 8-32 ESN (2)
Rivet 1/8 x 7/32, Nickel (12)
6).f'~®
ELECTRONICS GAMES, INC.
5-75
