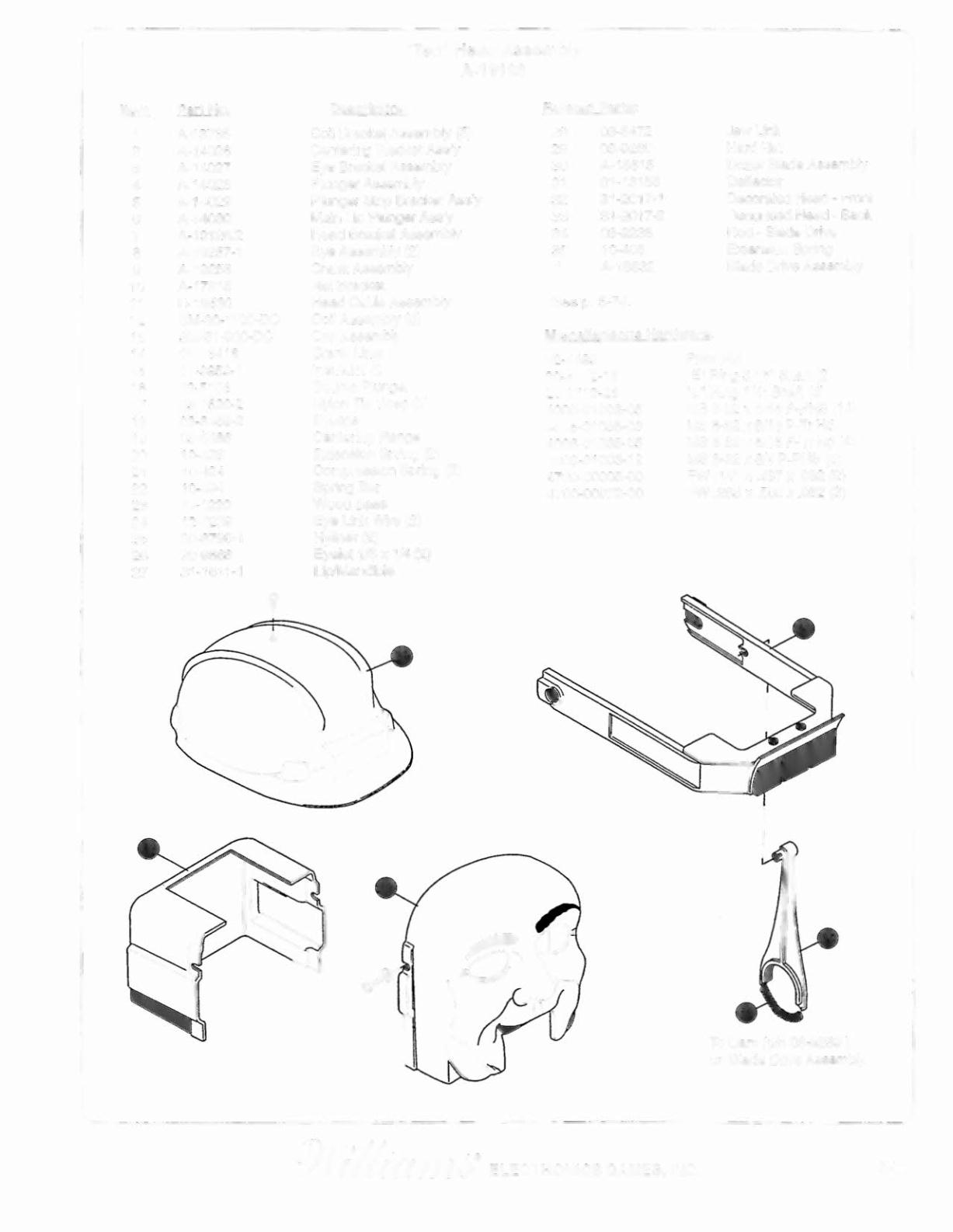

"Ted"
Head Assembly
A-19128
Item Part No.
Description
Related Parts:
1
A-1373S
Coil Bracket Assembly (5)
28
03-8472
Jaw Link
2
A-14026
Centering Bracket ASs'y
29
03-9280
Hard Hat
3
A-14027
Eye Bracket Assembly
30
A-1861S
Dozer Blade Assembly
4
A-14028
Plunger Assembly
31
01-13158
Deflector
5
A-14029
Plunger Stop Bracket Ass'y
32
31-2017-1
Decorated Head - Front
6
A-14030
Main Lid Plunger Ass'y
33
31-2017-2
Decorated Head - Back
7
A-19126.2
Head Bracket Assembly
34
03-9238
Rod - Blade Drive
8
A-19257-1
Eye Assembly (2)
35
10-408
Extension Spring
9
A-19258
Crank Assembly
A-18832
Blade Drive Assembly
10 A-17918
Hat Bracket
11 H-19530
Head Cable Assembly
·See p. 5-74.
12 SM-30-1100-DC Coil Assembly (3)
13 SM-31-900-0C
Coil Assembly
Miscellaneous
Hardware:
14 01-13416
Crank Liner
02-4499
Pivot Pin
15
01-9959-1
Insulator (2)
20-8712-18
"E' Ring 3/16" Shaft (2)
16 02-5103
Double Plunger
20-8712-25
"E" Ring
1/4"
Shaft (3)
17 03-7520-2
Nylon Tie Wrap (5)
4006-01003-05
MS 6-32
x
5/16 P-PHS
(14)
18 03-8469-2
Eyelids
4006-01 035-03
MS 6-32
x
3116 P-Tr Hd
19 03-8486
Centering Flange
4006-01 035-05
MS 6-32
x
5/16 P-Tr Hd (4)
20
10-423
Extension Spring (2)
4008-01003-12
MS 8-32
x
3/4
P-PHS (6)
21
10-424
Compression Spring (2)
4700-00005-00
FW .141
x
.437
x
.032 (2)
22
10-494
Spring Bar
4700-00072-00
FW .265
x
.500
x
_032 (3)
23
11-1220
Wood Base
24
12-7239
Eye Link Wire (2)
25
20-8790-1
Nyliner (2)
26
20-9668
Eyelet 1/8
x
1/4
(2)
27
31-1611-1
Lip/Mandible
~
To Cam
(pIn
03-9239 )
on Blade Drive Assembly
O)f~®
ELECTRONICS GAMES, INC.
5-73
