Page 197 - Williams GREEN Parts Catalog 16-9932

(50024)

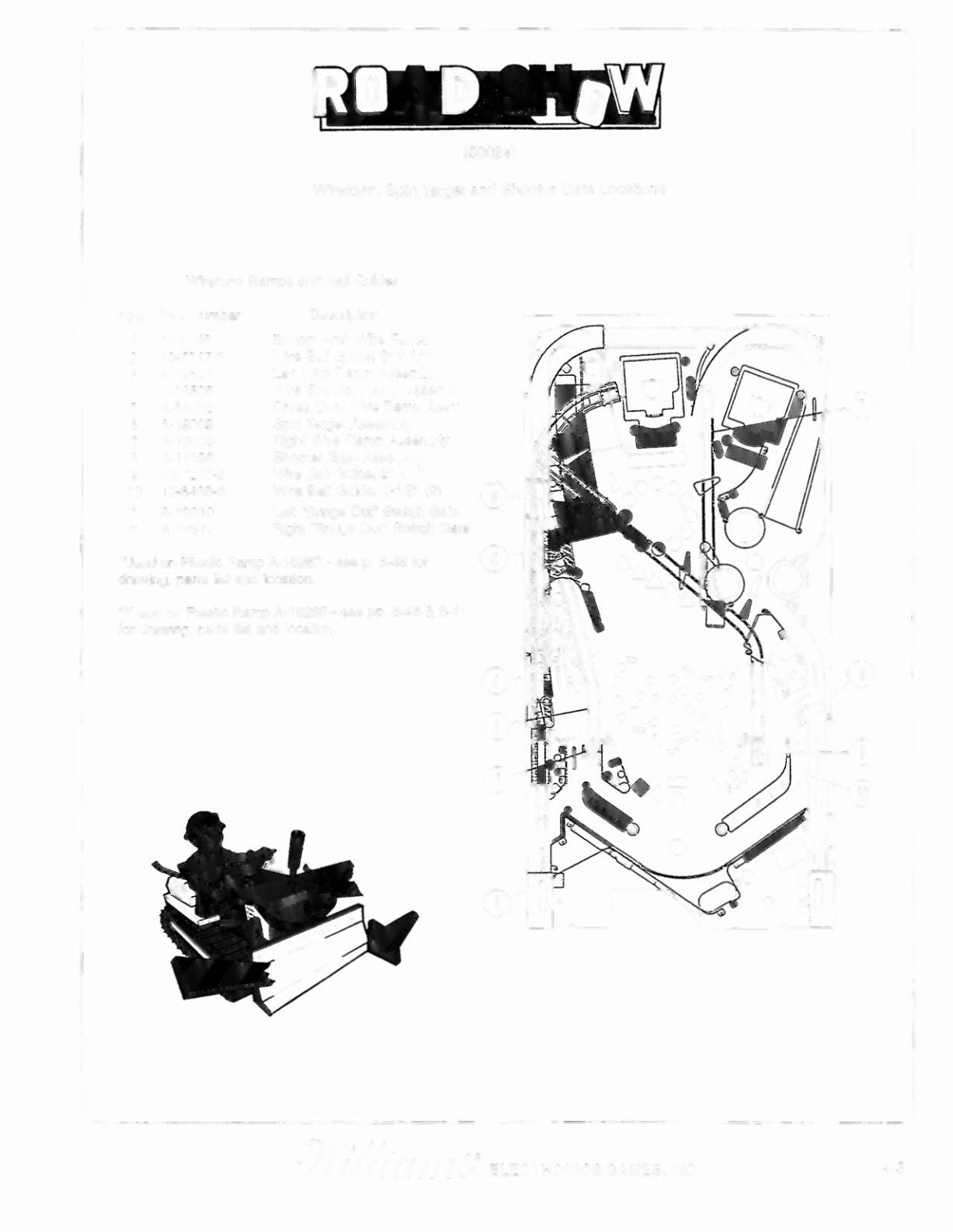

Wireform, Spin Target and Shooter Gate Locations
Wireform Ramps and Ball Guides
Item Part Number Description
1 12-7248 Bottom Arch Wire Fence
2 12-7247-1 Wire Ball Guide, 2' x 1/2"
3 A-18507 Left Wire Ramp Assembly
4 A-18506 Wire Shooter Ramp Assembly
5 A-1850B Cross Over Wire Ramp Ass'y
6 A-19309 Spin Target Assembly
7 A·18509 Right Wire Ramp Assembly
8 A-14196 Shooter Gate Assembly
9 12-7247-2 Wire Ball Guide. 2' x 1"
10 12-6466-6 Wire Ball Guide. 1-1/2" (2)
A-19310 Left "Bridge Out" Switch Gate
A-19311 Right "Bridge Out" Switch Gale
"Used on Plastic Ramp A-1B262 - see p. 3-48 for
drawing, parts list and location.
"'Used on Plastic Ramp A-18235· see pp, 3-46 & 3-47
for drawing, parts list and location.
O)f~® ELECTRONICS GAMES, INC. 4-3
