and the
[j,/Jl} §1T t:&J {fJ} §C!J f!j) g
(50017)

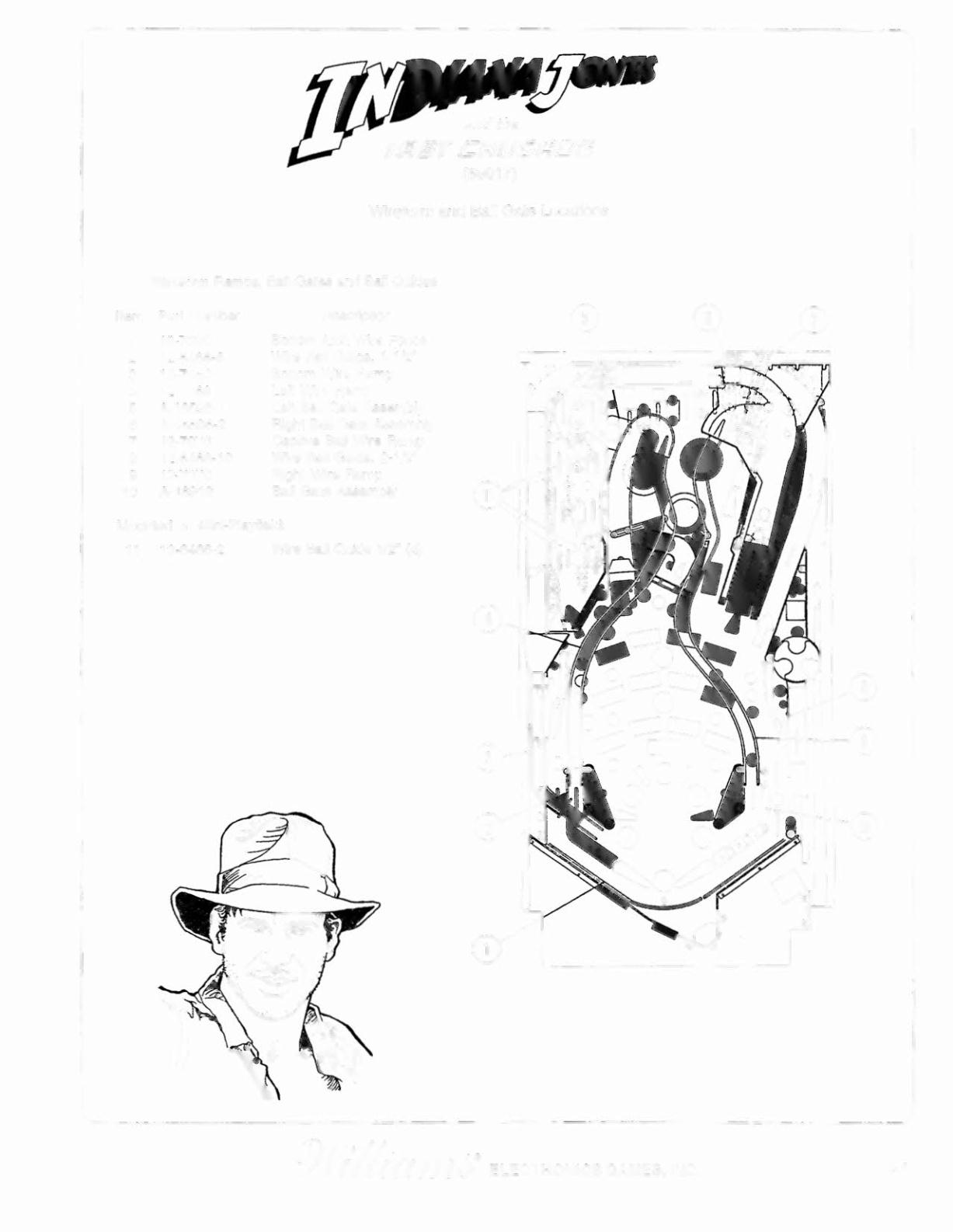

Wireform and Ball Gate Locations
Wireform Ramps, Ball Gates and Ball Guides
Item Part Number
1 12·7090
2 12·6466·6
3 12-7080
4 12-7069
5 A-16596 -1
6 A-16S9S-2
7 12-7076
8 12-6466 -10
9 12-7070
10 A-1691B
Description
Bottom Arch Wire Fence
Wire Ball Guide, 1-1/2"
Bottom Wire Ramp
left Wire Ramp
Left BaH Gate Assembly
Right BaH Gate Assembly
Captive Ball Wire Ramp
Wire Ball Guide, 2-1/2"
Right Wire Ramp
Ball Gate Assembly
Mounted on Mini-Playfield:
11 12-6466-2 Wire Ball Guide 1/2" (4)
6)f~® ELECTRONICS GAMES, INC. 4-1
