Page 181 - Williams GREEN Parts Catalog 16-9932

SEO Version

15
DIRTY HARRY (50030)
Ramps
I
®

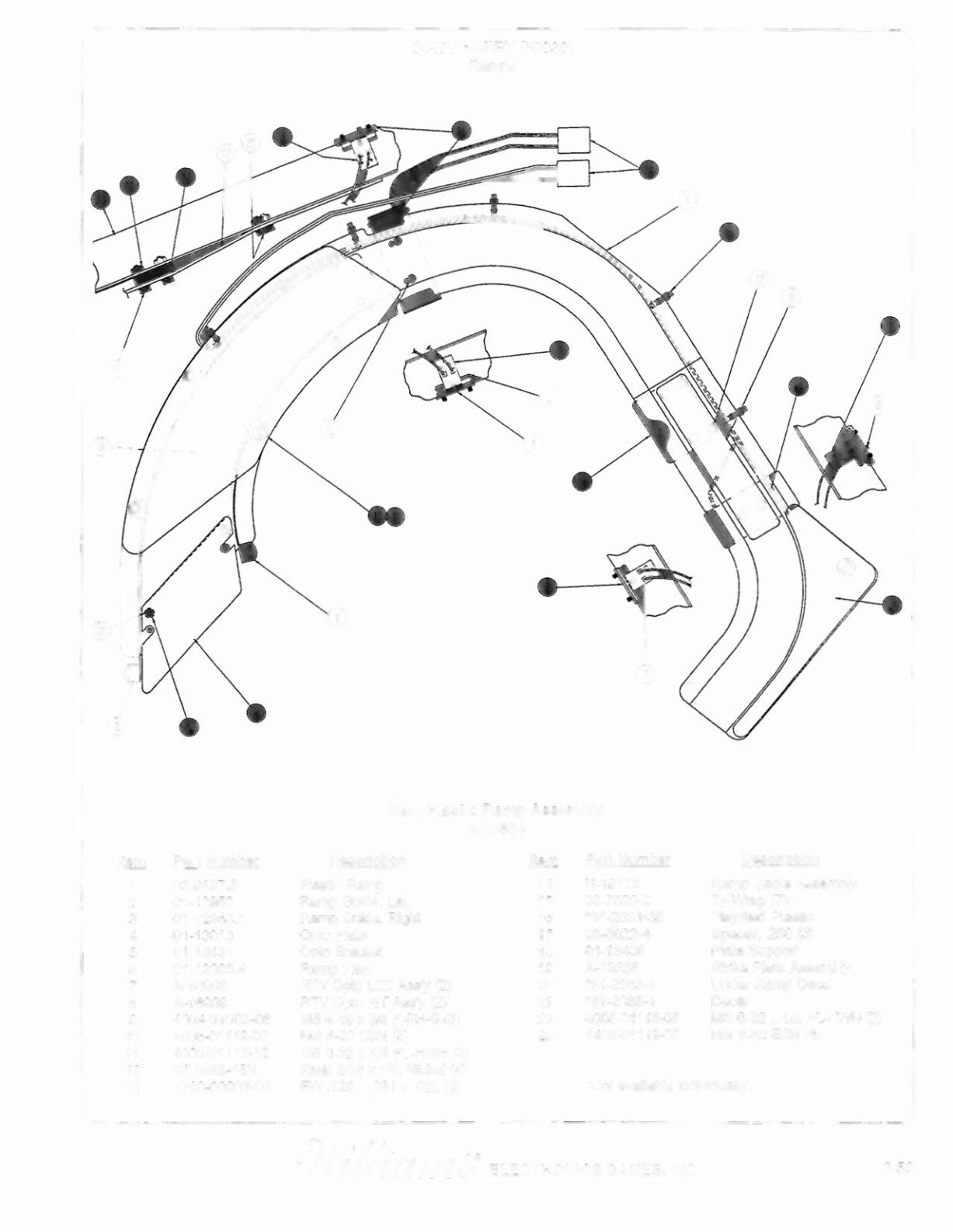

Main Plastic Ramp Assembly
A-18604
Item Part Number
Description
Item Part Number
Description
1 03·9197.3
Plastic Ramp
14 H·19773
Ramp Cable Assembly
2 01-12952
Ramp Guide. Left
15 03·7520·2
Ty·Wrap (7)
3 01-12953.1
Ramp Guide. Right
16 *31-2031-38
Playfield Plastic
4 01-13013
Opto Plate
17 03-8022-4
Spacer, .250 (3)
5 01-13431
Opto Bracket
18 01-13408
Plate Support
6 01-13003.4
Ramp Flap
19 A-19336
Strike Plate Assembly
7 A-16908
RTV Opto LED Ass'y (2)
20 *31·2063-1
Under Ramp Decal
8 A-16909
RTV Opto PIT Ass'y (2)
21 *31-2065-1
Decal
9 4004-01003-06 MS 4-40 x
3/8
P-PH-S (8)
22 4006-01113-08 MS 6-32 x
1/2
PL-HWH (2)
10 4406-01119·00 Nut 6-32 ESN (5)
23 4408-01119-00 Nut 8-32 ESN (6)
11 4006-01113-12 MS 6-32 x
3/4
PL-HWH (3)
12 07-6688-18N Rivet
3/16
x
1/8,
Nickel (4)
13 4700-00003-00 FW .125 x .281 x .032 (2)
*Not available individually.
