DEMOLITION MAN (50028)
Ramps - cont'd
4

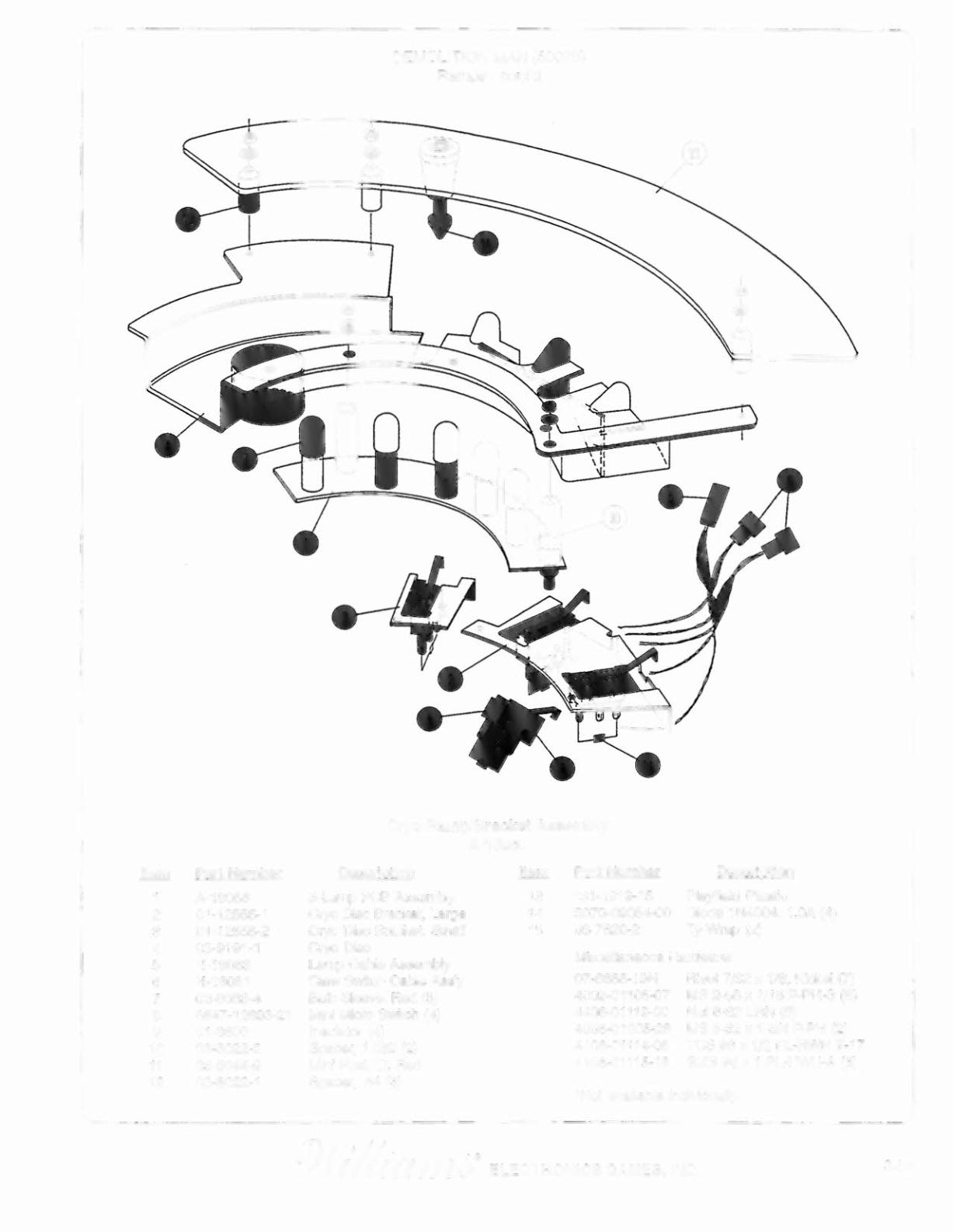

Cryo RamplBracket Assembly
A-180S7
Item Part Number
Description
Item Part Number
Description
1
A-18056
5-Lamp PCB Assembly
13 *31-1919-15
Playfield Plastic
2
01-12555-1
Cryo Disc Bracket, Large
14 5070-09054-00 Diode IN4004, I.OA (4)
3
01-12555-2
Cryo Disc Bracket, Small
15 03-7520-2
Ty-Wrap (2)
4
03-9191-1
Cryo Disc
5
H-18063
Lamp Cable Assembly
Miscellaneous Hardware:
6
H-18081
Claw Switch Cable Ass'y
07 -6688-19N Rivet 7/32 x 1/8, Nickel (7)
7
03-8063-4
Bulb Sleeve, Red (5)
4002-01105-07 MS 2-56 x 7/16 P-PH-S (8)
8
5647-12693-21 Mini Micro Switch (4)
4406-01119-00 Nut 6-32 ESN (3)
9
01-8600
Insulator (4)
4006-01005-28 MS 6-32 x 1-3/4 P-PH (2)
10 03-8022-2
Spacer, 1.062 (2)
4106-01114-08 TCS #6 x 1/2 PL-HWH T-17
11 03-8044-9
Mini Post, Tr. Red
4106-01115-16 SMS #6 x 1 PL-HWH-A (3)
12 03-8022-1
Spacer, .54 (3)
*Not available individually.
