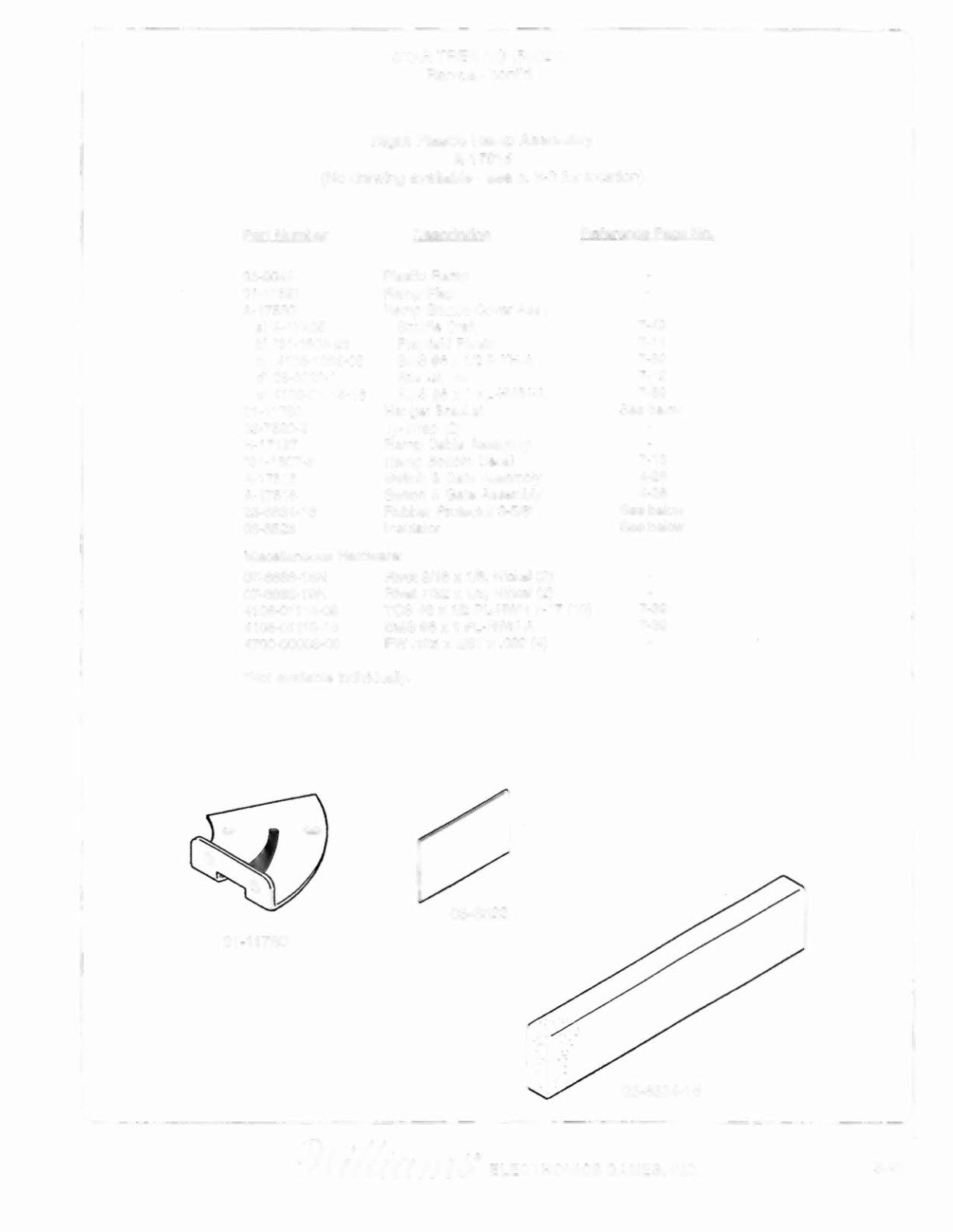

STAR TREK NG (50023)
Ramps - cont'd
Reference Page No.
Right Plastic Ramp Assembly
A-17015
(No drawing available - see p. 3-31or location)
Miscellaneous Hardware:
07-66S8-l8N
Rivet
3/16
x 1/8, Nickel (2)
07-6688·19N
Rivet 7/32 x 1/8, Nickel (2)
4106-01114-08
TCS #6 x 1/2 PL-HWH T-17 (10)
7-39
4106-01115·16
SMS #6 x 1 PL-HWH-A
7-39
4700-00003-00
FW .125 x .281 x .032 (4)
Part Number
03-9048
01-11591
A-17530
a) A-17485
b) *31-1-803-25
c) 4106-1033-0B
d) 03-8022-1
e) 4106-01115-16
01-11780
03-7520-2
H-17197
*31-1807-3
A-17515
A-17516
23-6534-16
03-8523
"Not available individually.
01-11780
Description
Plastic Ramp
Ramp Flap
Ramp Shuttle Cover Ass'y
Shuttle Craft
Playfield Plastic
SMS #6 x 1/2 P-TH-A
Spacer, .541
SMS #6 x 1 PL-HWH-A
Hanger Bracket
Ty-Wrap (2)
Ramp Cable Assembly
Ramp Bottom Decal
Switch & Gate Assembly
Switch
&
Gate Assembly
Rubber Protector 3-5/S"
Insulator
7-49
7-14
7-39
7-19
7-39
See below
7-13
4-26
4-26
See below
See below
23-6534-16
03-8523
