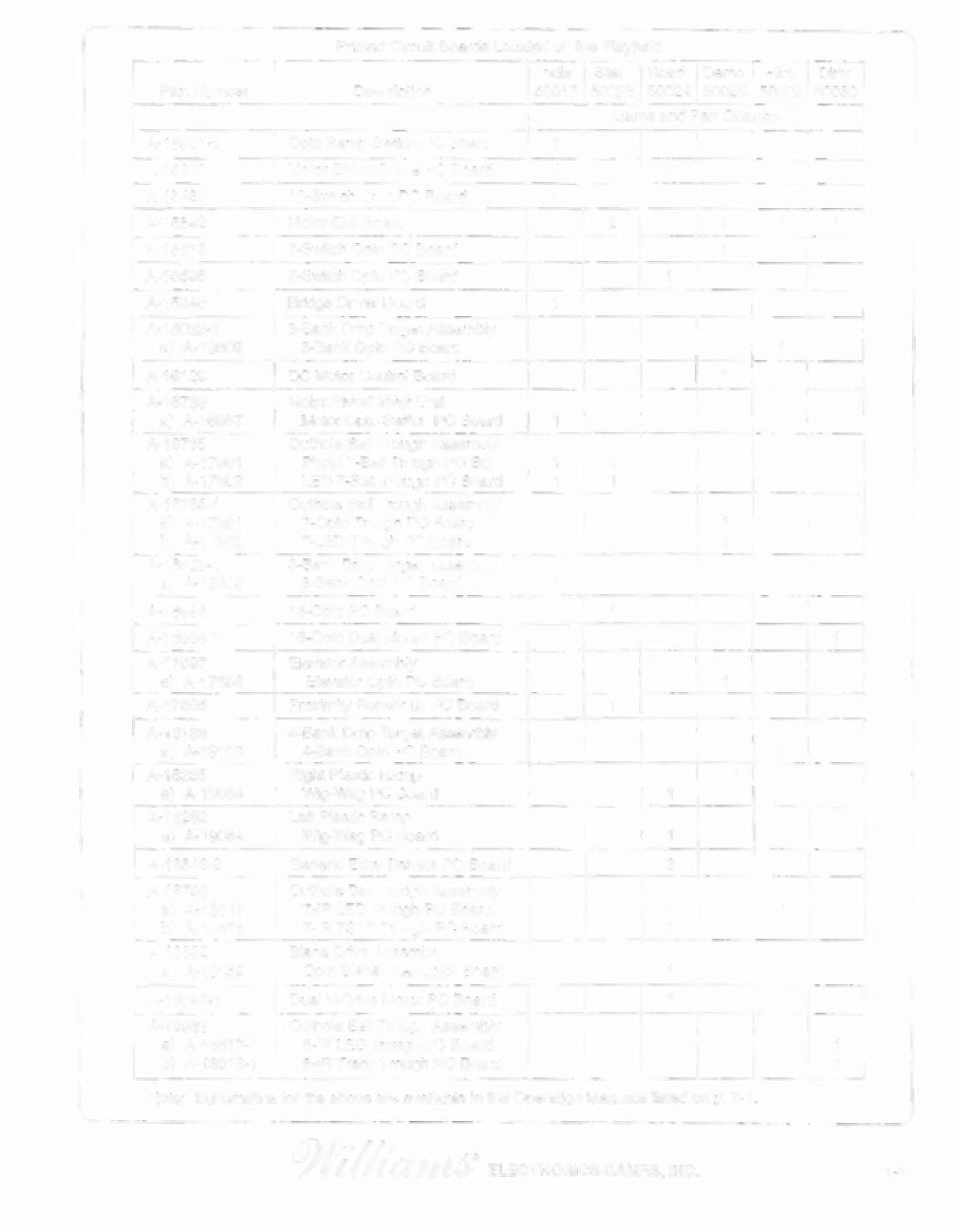

Printed Circuit Boards Located on the PJayfield
India Star
Road Demo Flint
Dirty
Part Number
Description
50017 50023 50024 50028 50029 50030
Game and Part Quantity
A-13901-2
Opto Ramp Switch PC Board
1
A-15340
Motor EMI w/Brake PC Board
1
1
A-15430
1O-Switch Opto PC Board
1
A-15542
Motor EMI Board
2
1
1
1
A-15576
7-Switch Opto PC Board
1
1
A-15595
7-Switch Opto PC Board
1
A-15946
Bridge Driver Board
1
A-16032-1
3-Bank Drop Target Assembly
a) A-13609
3-Bank Opto PC Board
1
A-16l20
DC Motor Control Board
1
A-16738
Motor PivoVDriver Unit
a) A-166S7
Motor Opto Switch PC Board
1
A-16765
Outhole Ball Trough Assembly
a) A-1798l
Photo 7-Ball Trough PC Bd
1
1
b) A-17982
LED 7-Ball Trough PC Board
1
1
A-16765-'
Outhole Ball Trough Assembly
a) A-1798l
7-0pto Trough PC Board
1
b) A-17982
7-LED Trough PC Board
1
A-16929-l
3-Bank Drop Target Assembly
a) A-13609
3-Bank Opto PC Board
1
A-16998
ta-optc
PC Board
1
A-16998.1
16-0pto Dual Mount PC Board
1
A-17597
Elevator Assembly
a) A-17596
Elevator Opto PC Board
1
A-17565
Proximity Sensor III PC Board
1
A-18188
4-Bank Drop Target Assembly
a) A-19103
4-Bank Opto PC Board
1
A-18235
Right Plastic Ramp
a) A-19064
Wig-Wag PC Board
1
A-18262
Left Plastic Ramp
a) A-19064
Wig-Wag PC Board
1
A-18543-2
Generic Eddy Sensor PC Board
3
A-18753
Outhole Ball Trough Assembly
a} A-18617
7-IR LED Trough PC Board
1
1
b) A-18618
7-IR TSTR Trough PC Board
1
1
A-18832
Blade Drive Assembly
a) A-193S9
Opto Blade Interruptor Board
1
A-19242-1
Dual H-Drive Motor PC Board
1
A-19963
Outhole Ball Trough Assembly
a) A-18617-1
S-IR LED Trough PC Board
1
b) A-18618-1
5-IR Trans Trough PC Board
1
Note: Schematics for the above are available in the Operation Manuals listed on
p.
7-1.
O).f~®
ELECTRONICS GAMES, INC.
1-7
