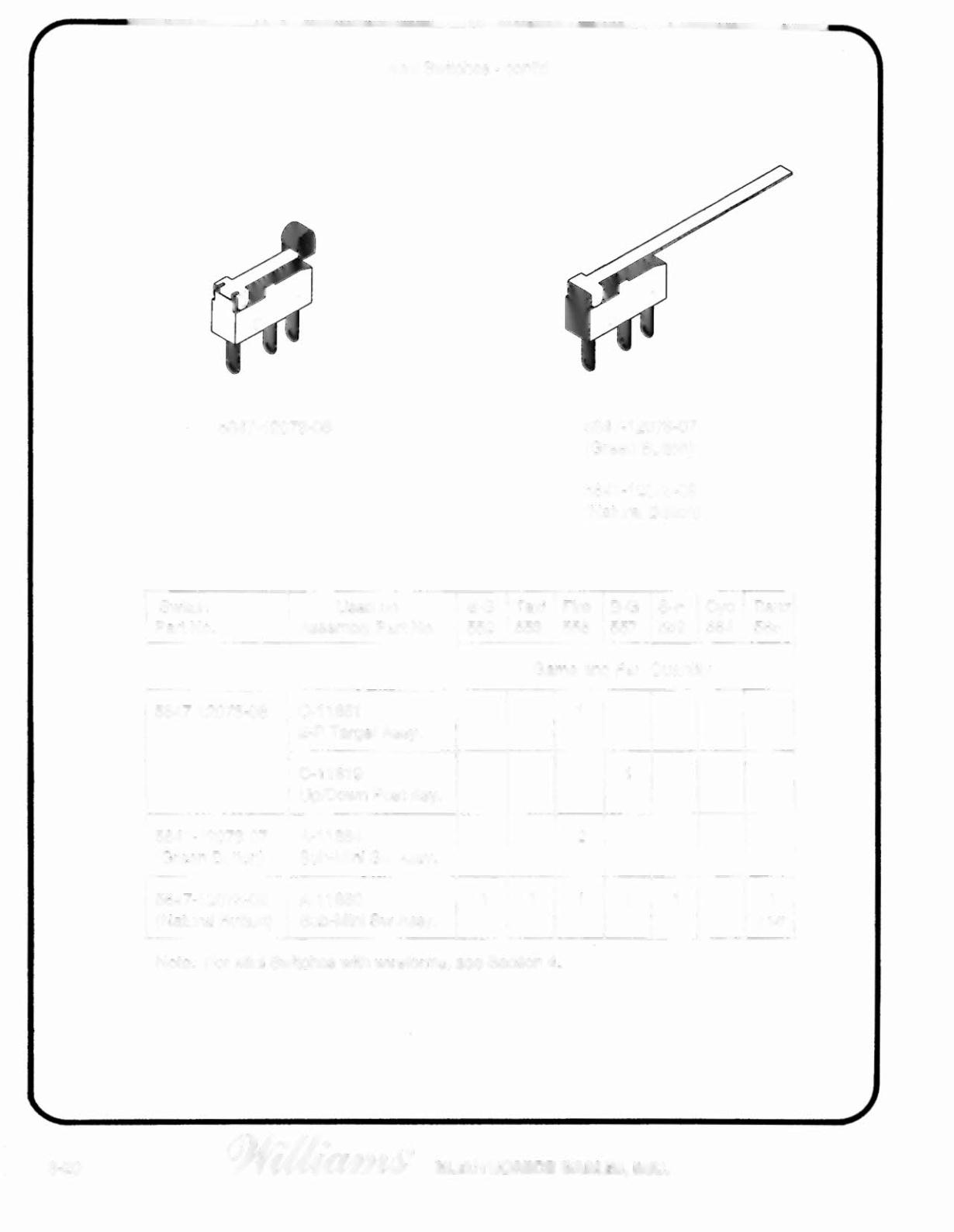

Page 496 - Williams BLUE Parts Catalog 16-9064-B

Mini Switches - conrd
5647-12073-06 5647-12073-07
(Green Button)
5647-12073-08
(Natural Button)
Switch Used on S-S Taxi Fire B-G S-F eyc Banz
Part No. Assembly Part No. 552 553 556 557 559 564 566
Game and Part Quantity
5647-12073-06 C-11661 1
2-P Target Assy.
C-11819 1
Up/Down Post Asy.
5647-12073-07 A-11884 2
(Green Button) Sub-Mini Sw Assy.
5647-12073-08 A-11680 1 1 1 1 1 1
(Natural Button) Sub-Mini Sw Assy. Lwr
Note: For Mini Switches with wireforms, see Section 4.
