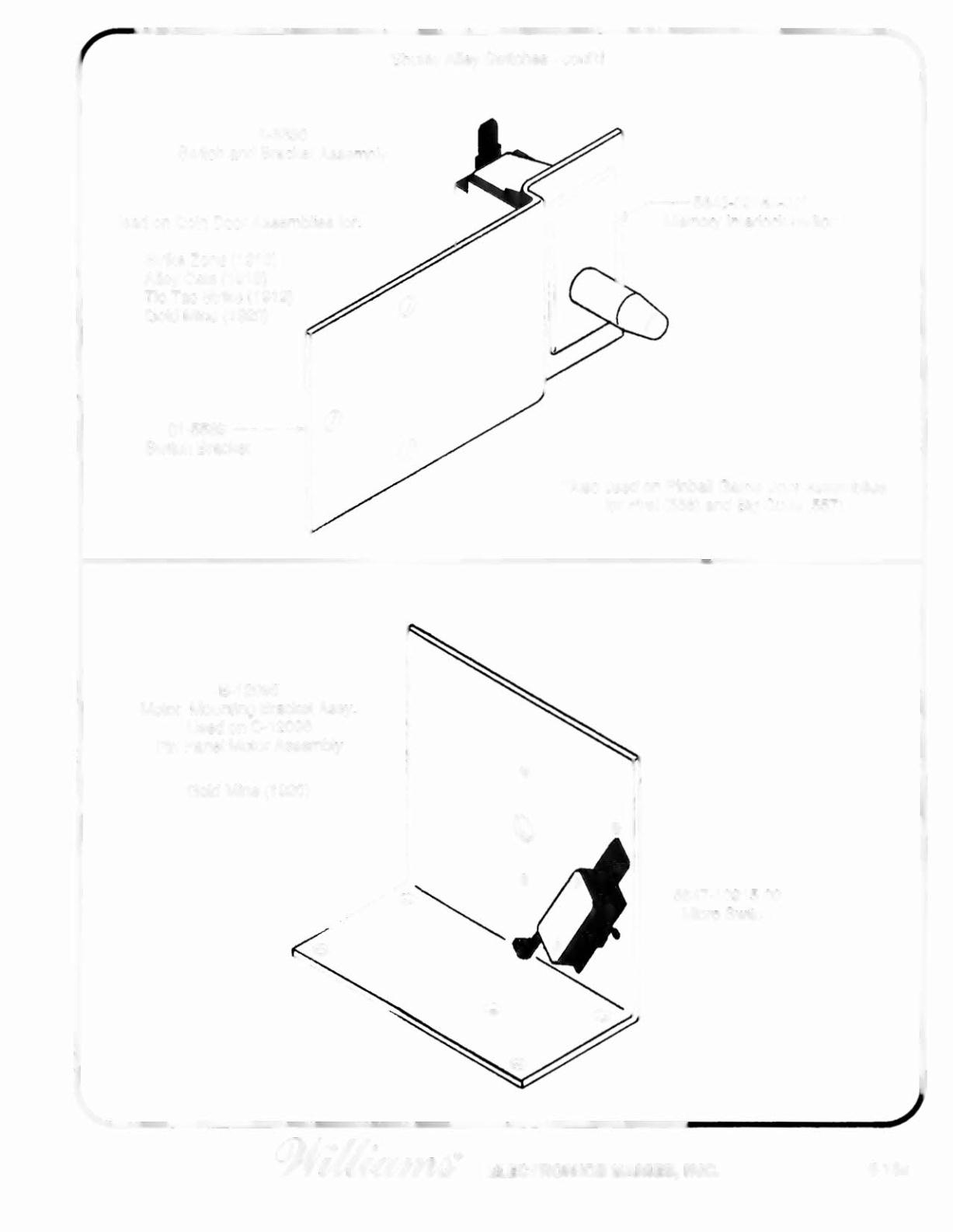

Shuffle Alley Switches - cont'd
Strike Zone (1916)
Alley Cats (1918)
Tic Tac Strike (1919)
Gold Mine (1920)
A-8630
Switch and Bracket Assembly
Used on Coin Door Assemblies for:
--
5643-09268-00·
Memory Interlock Switch
01-5589 --.'-
..
Switch Bracket
*
Also used on Pinball Game Door Assemblies
for Fire! (556) and Big Guns (557)
B-12095
Motor Mounting Bracket Assy.
Used on C-12096
Pin Panel Motor Assembly
Gold Mine (1920)
5647-10915-00
Micro Switch
ELECTRONICS GAMES. INC.
6-16a
