Page 333 - Williams BLUE Parts Catalog 16-9064-B

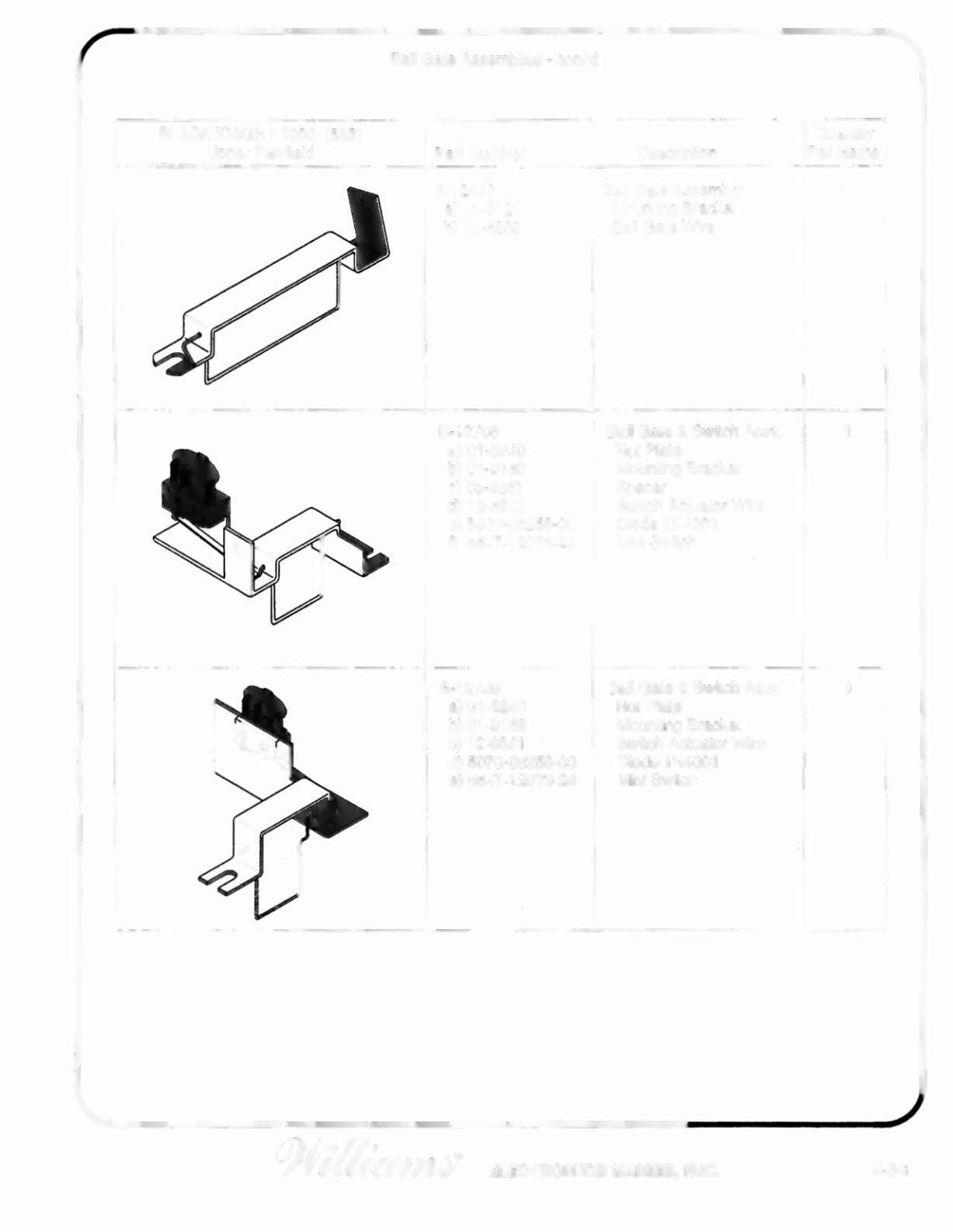

Ball Gate AssembUes - cont'd
BLACK KNIGHT 2000 (563)
Upper Playfield Part Number
A-12640
a) 01-9121
b) 12-6833
8-12708
a) 01-8240
b) 01-9160
c) 03-8267
d} 12-6840
e) 5070-06258-00
f) 5647-12073-24
8-12720
a) 01-8240
b) 01·9163
c) 12-6841
d) 5070-06258-00
e) 5647-12073-24
Description
Ball Gate Assembly
Mounting Bracket
Ball Gate Wire
Ball Gate & Switch Assy.
Nut Plate
Mounting Bracket
Spacer
Switch Actuator Wire
Diode 1N4001
Mini Switch
Ball Gate & Switch Assy.
Nut Plate
Mounting Bracket
Switch Actuator Wire
Diode 1N4001
Mini Switch
Quantity
Per Game
1
1
1
ELECTRONICS GAMES. INC. 4-34i
