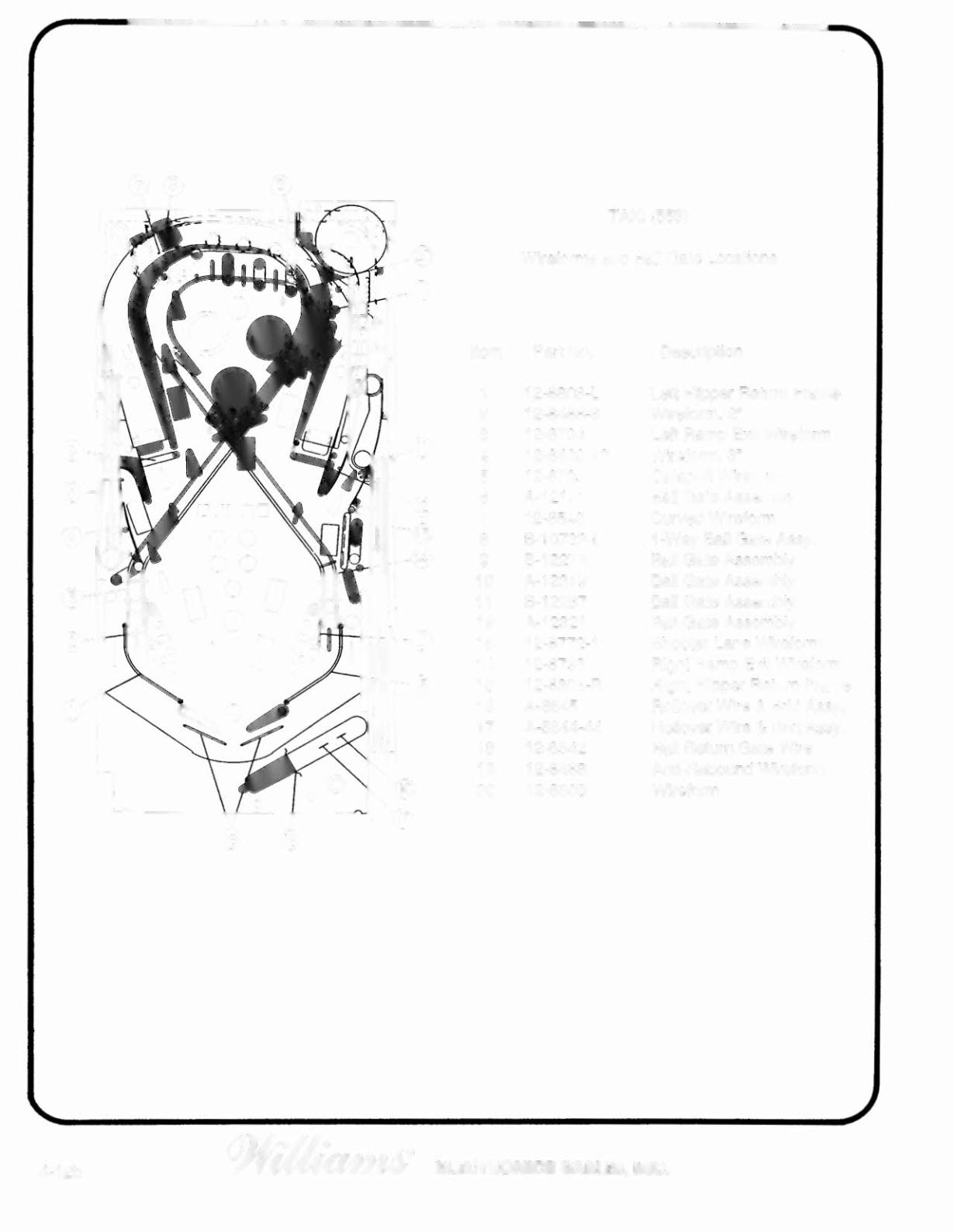

Page 268 - Williams BLUE Parts Catalog 16-9064-B

TAXI (553)
Wireforms and Ball Gate Locations
Item Part No. Description
1 12-6803-L Left Flipper Return Frame
2 12-6466-8 Wireform.2"
3 12-6794 Left Ramp Exit Wireform
4 12-6466-12 Wireform.3"
5 12-6795 Catapult Wire form
6 A-12171 Ball Gate Assembly
7 12-6548 Curved Wireform
8 B-10732-L 1-Way Ball Gate Assy.
9 B-12274 Ball Gate Assembly
10 A-12319 Ball Gate Assembly
11 B-12267 Ball Gate Assembly
12 A-12321 Ball Gate Assembly
13 12-6772-1 Shooter Lane Wireform
14 12-6793 Right Ramp Exit Wireform
15 12-6803-R Right Flipper Return Frame
16 A-8645 Rollover Wire & Brkt Assy.
17 A-5844-44 Rollover Wire & Brkt Assy.
18 12-6542 Ball Return Gate Wire
19 12-6468 Anti-Rebound Wireform
20 12-6808 Wireform
4-12b
