Page 14 - 77_78_WMS_PARTS_ASPIRE

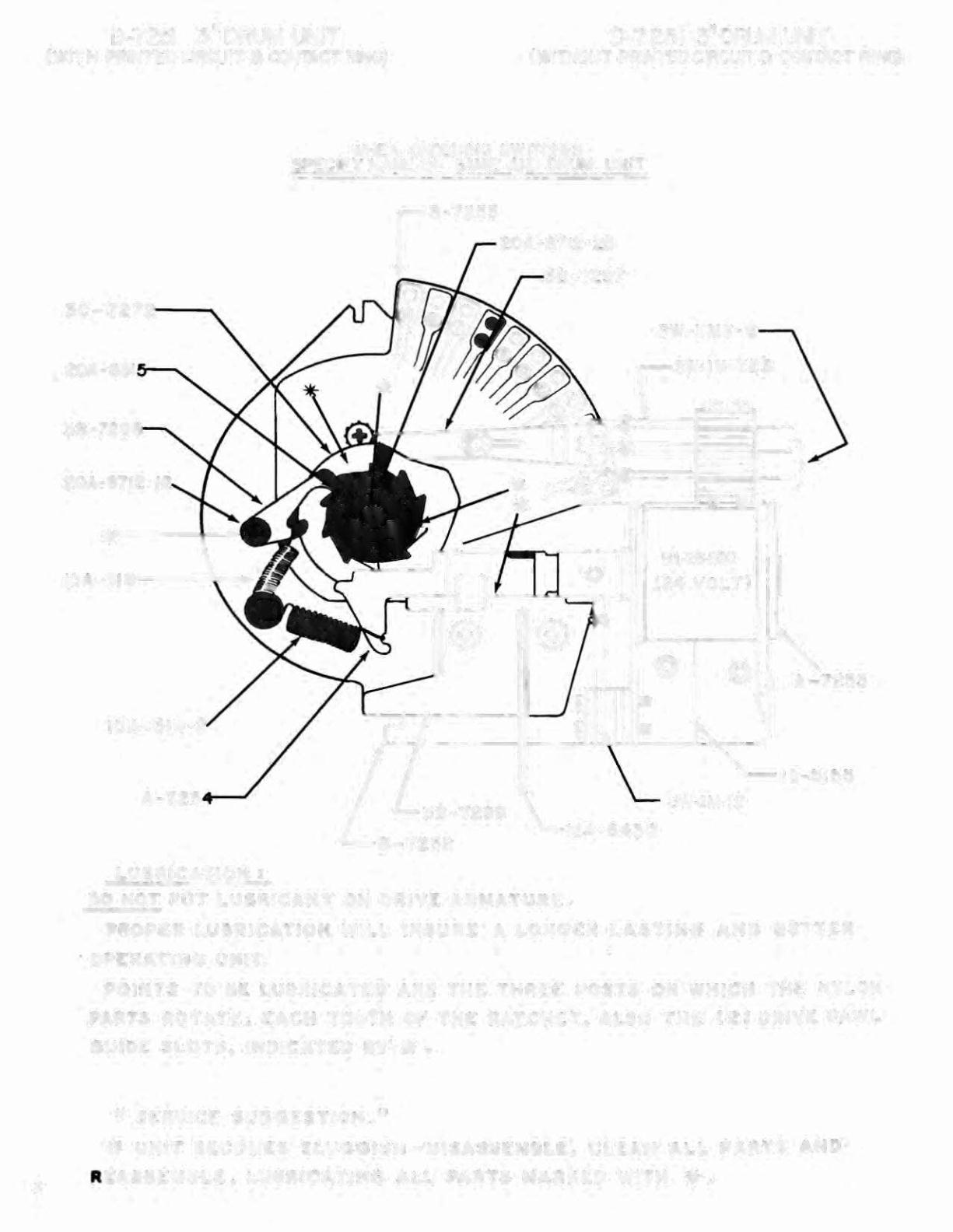

D-7251 3 I IDRUM UNIT
(WIT H PRINTED CIRCUIT a OONTACT RING)
0-7251 3" DRUMUNIT
(WITHOUT PRINTED CIRCUIT a CONTACT RING)
20A-8712
3C-7272--"
SW-IIMS-6
20A-881
B1-26-800
(24 VOLT)
18-5155
LUBRICATION:
DO NOT PUT LUBRICANT ON DRIVE ARMATURE.
PROPER LUBRICATION WILL INSURE A LONGER LASTIN -G, AND BETTER
. OPERAT1N -G UNIT.
POINTS TO 9E LUBRICATED ARE THE THREE POSTS ON WHICH THE NYLON
PARTS ROTAT 'E. EACH TOOTH OF THE ' RATCHET. AL.SO THE (2 J DRIVE PAW L
GUIDE SLOTS. INDICATED BY' * ..
" SERVICE SUGGESTION . "
IF UNIT BECOMES SLUG GISH - OISAS:iEMBLE. CLEAN ALL PARTS AND
REASSEMBLE. LUBRICATfNG ALL PARTS MARKED WITH *.
