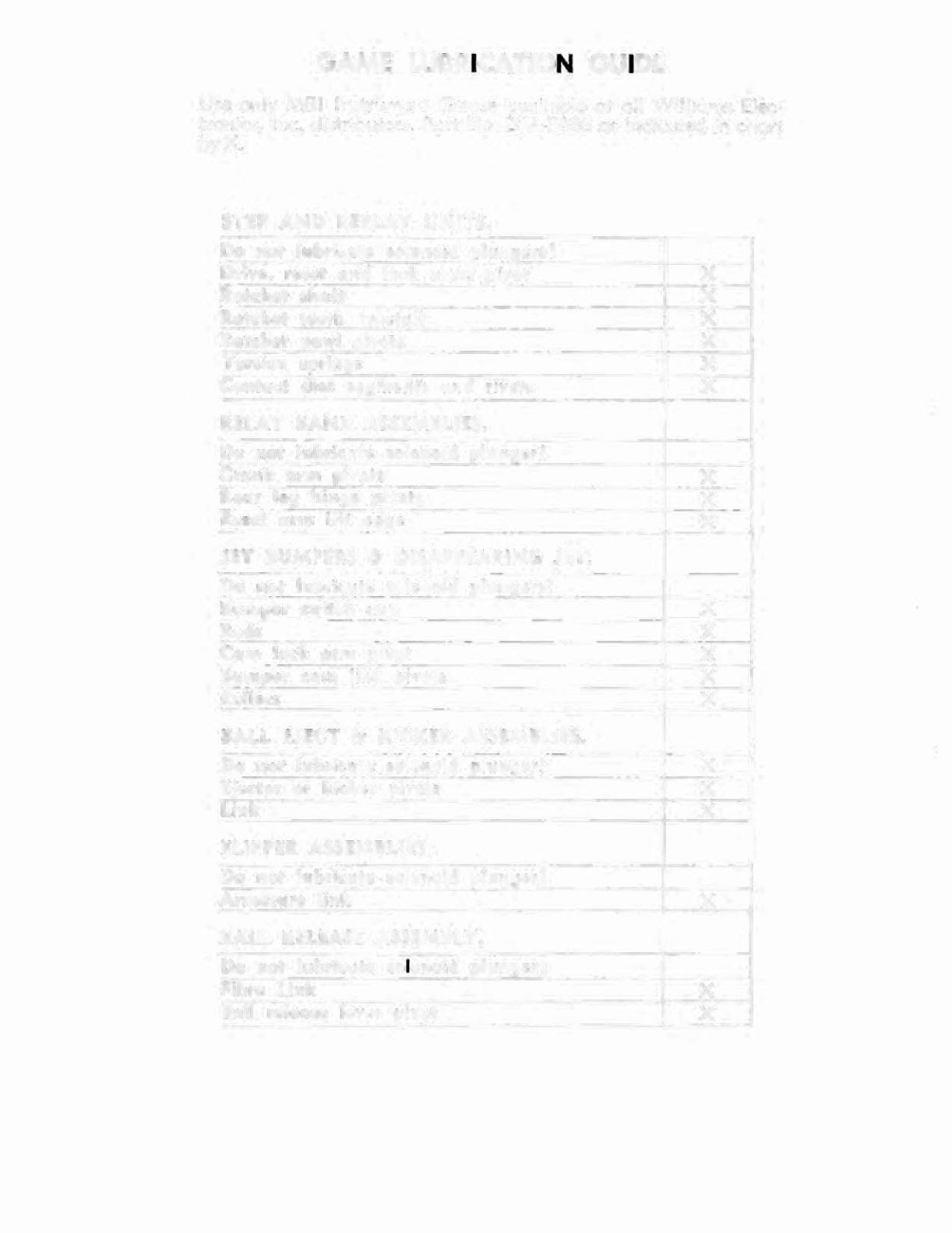

GAME LUBRICATION GUIDE
Useonly MBI Instrum entGr ea seava ilableat all W illiam s Fle e-
tron ics, Inc . dis tri butors .Pa rt No. 20A ..888 6as ind icated in chart
byX ,
STEP AND REPLAY UNITS ..
Do not lubricate solenoid pl.ungers!
Drive, reset and lock arms pivot X
.Ratchet shaft X
Ratchet teeth (metal) X
Ratchet pawl pivots X
Torsion springs X
Contact disc segments and rivet·s X
RELAY BANK ASSEMBLIES.
Do not lubricate. solenoid plunger!
Crank arm pivots X
Rear leg hinge pivats X
Reset arm lift edge X
JET BUMPERS & DISAPPEARING JET.
Do not lubricate solenoid plungers!
Bumper switch cup X
Rods X
Cam lock arm pivot X
Bumper cam link pivots X
Rollers X
BALL EJECT & KICKER ASSEMBLIES.
Do not lubricate solenoid plunger! X
Ejector or kicker pivoh X
Link X
FL.IPPER ASS,EMBtl ES.
Do not lubricate solenoid plunger!
Armature link X
BALL RELEASE ASSEMBLY.
Do not lubricate solenoid plunger!
Fibre Link X
Ball release lever pivot X
