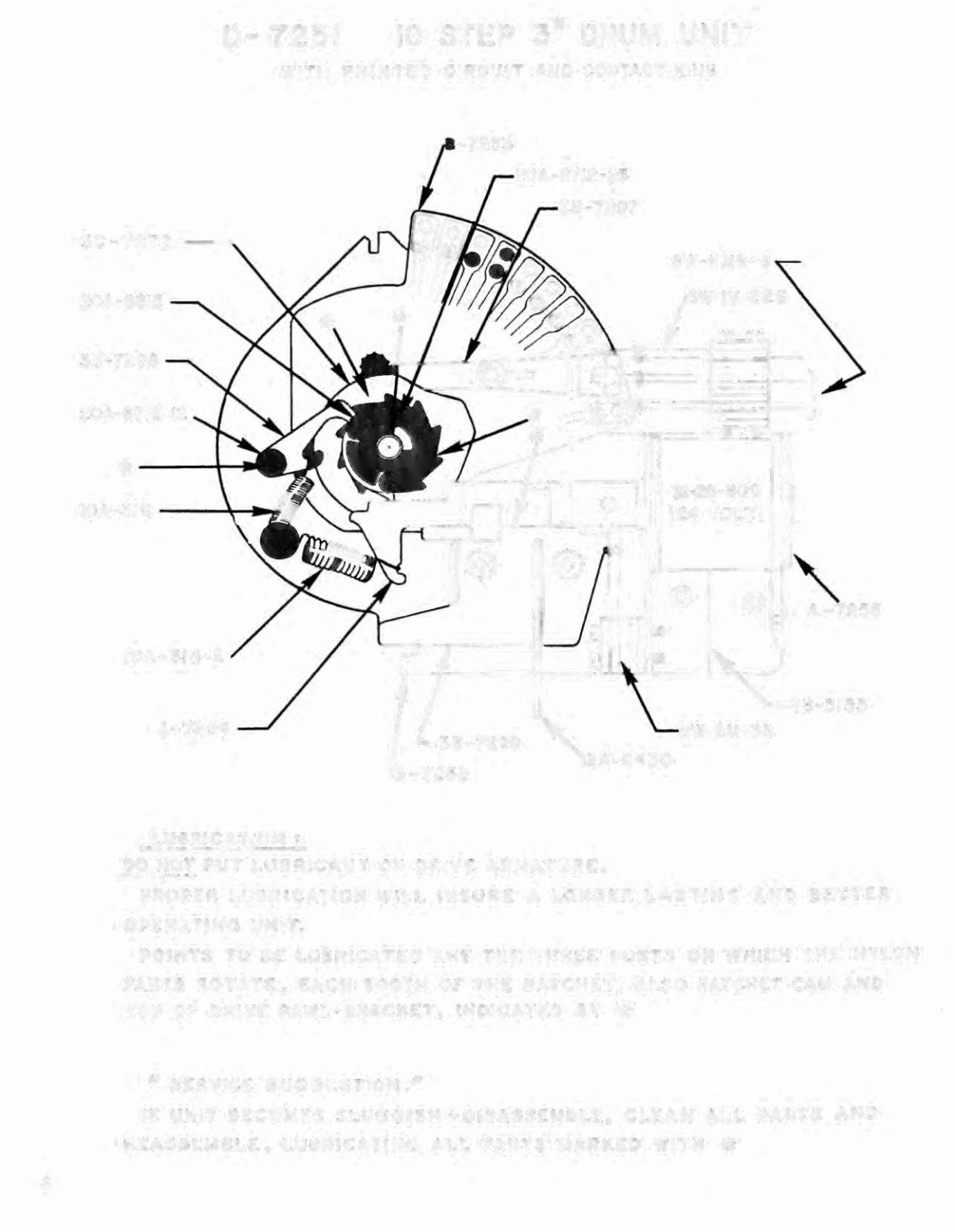

0- 7251 10 STE.P 3" DRUM UNIT
WITH PRINTED CIRCUIT AND CONTACT RING
3B- 72 -98
-72 53
20A-87 12- 25
3C -7 272--
SW-II MS-6
20A -8815
81 -26-800
(24 VOLT) -,A -7 255
18-5155
LUBRICATION ;
DO NOT PUT LUBRICANT ON DRIVE ARMATURE.
PROPER LUBRICATION WILL INSURE A LONG ER LASTING AND BETTER
OPERATING UNIT.
POINTS TO BE LUBRICATED ARE THE THREE POSTS ON WHICH THE NYLON
PARTS ROTATE .• EACH TOOTH Or THE RATCHET. ALSO RATCHET CAM AND
TOP OF' DRIVE PAWL- BRACKET I INDICATED BY *"
,. SERVICE SUG GES TlON ."
IF UNIT BECOMES SLUGGISH - DISASSEMBLE. CLEAN ALL PARTS AND
REASSEMBLE .• LUBRICATING ALL PARTS MARKED WITH *
