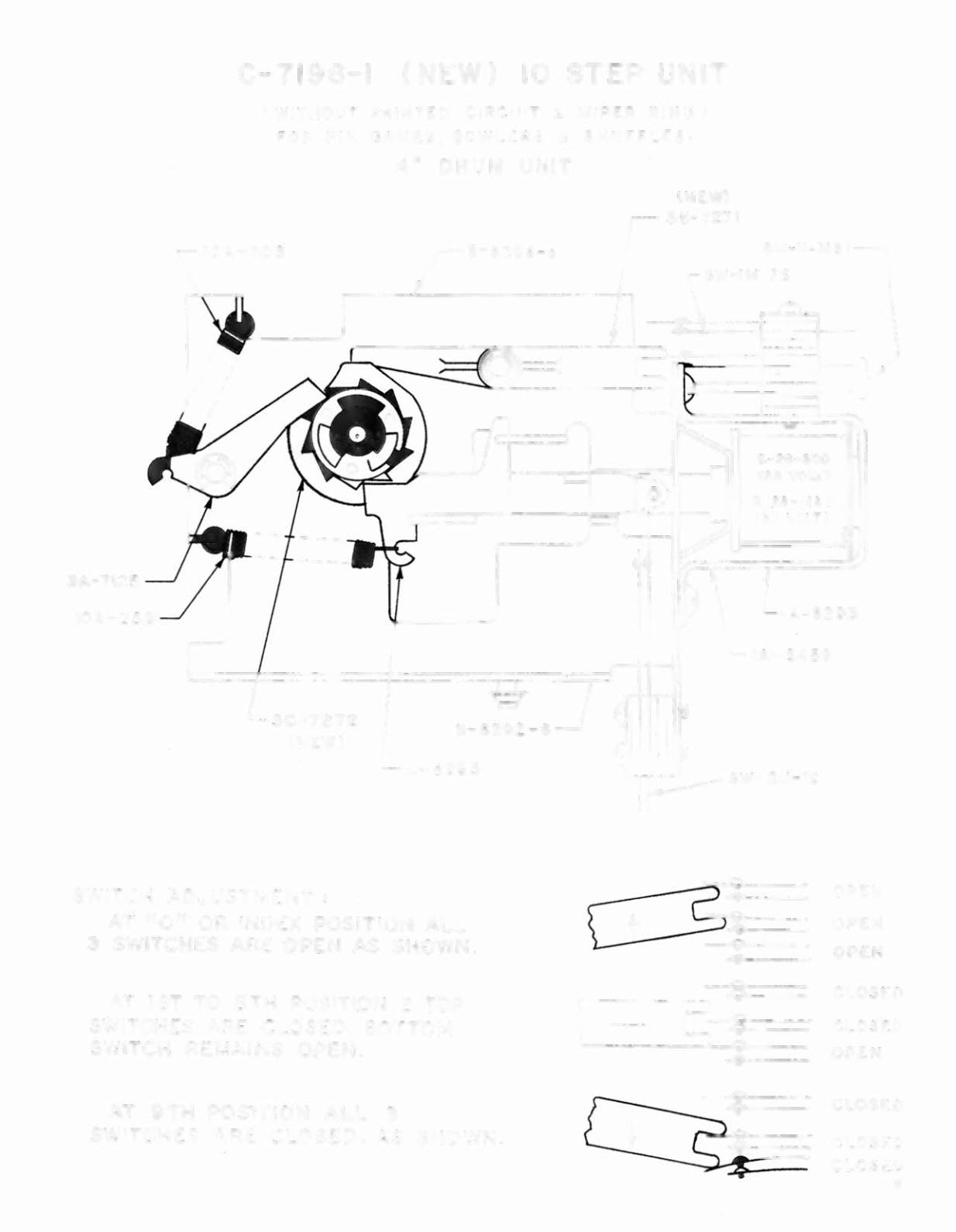

C-7196-1 (NEW) 10 STEP UNIT
(WITHOUT PRINTED CIRCU IT & WIPER RING)
FOR PIN GAMES. BOW LERS & SHUFFLES .
4" DRUM UNIT
3A-7125
lNEW)
38-7271
IOA-203 8-6296-6 SW-II- MS I
B-26 ~800
(24 VOLT)
8-_28 -1450
(50 VOL T)
3C -7272
(NEW)
IA -3459
A-6295 sw- 2U-12
SWITCH ADJUSTI\,1ENT :
AT "0" OR INDEX POSITrON ALL
3 SWITCHES ARE OPEN AS SHOWN.
OPEN
OPEN
•• OPEN
8 CLOSED c; ~
CLOSED
OPEN
9
CLOSED
CLOSED
CLOS!ZO
6
AT I ST TO 8 TH POSITION 2 TOP
SWITCHES ARE CLOSED. BOTTOM
SWITCH REMt\INS OPEN.
AT 9TH POSlTION AL.L 3
S\VITCHES ARE CLOSED. AS SHO\"J~~.
