Page 735 - BallyMidway YELLOW Parts Catalog 16-9147-B

Video Upright Cabinets - conrd
TERMINATOR 2 (40009)

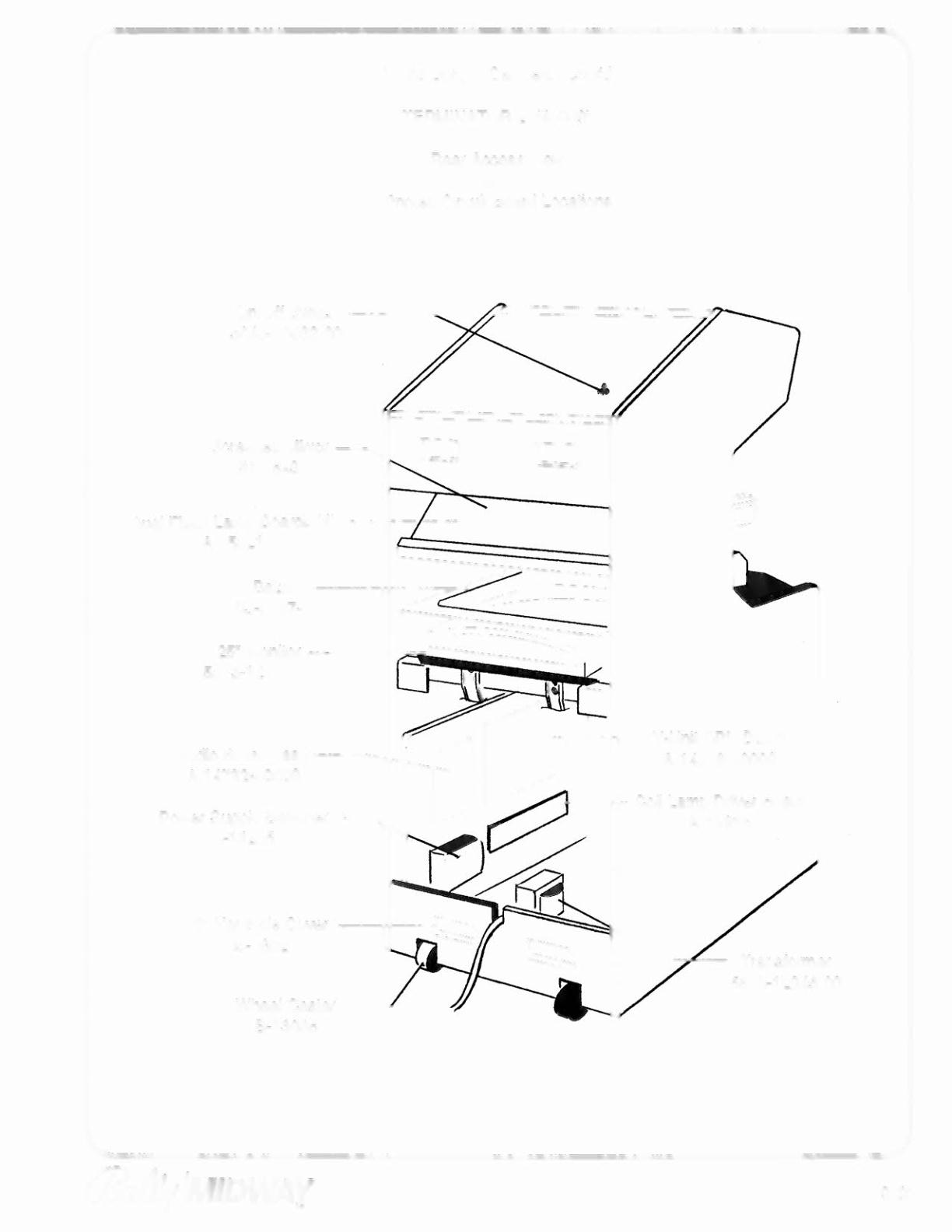

Rear Access View
and
Printed Circuit Board Locations
On/Off Switch --- __
5640-1 0932-00
Screened Mirror
31-1643
Dual Flash Lamp Boards (4) --
A-15021
Bezel -----H---
03-8497-1
25" Monitor ----++-~
5675-12787-00
--+--+--+i- Y-Unit CPU Board
A-14818-40009 Audio Board Ass'y ---u_
A-14732-4oo09
Power Supply Switcher-----._
A-14205
+--t--t+- Coli lamp Driver Board
A-14915
20" Venthole Cover -----.!+---++_
03-7602
~~- Transformer
561 0-12945-00
Wheel Caster ---'
B-13086
@af!tt/MIDWAY 9-5f
