Page 60 - BallyMidway YELLOW Parts Catalog 16-9147-B

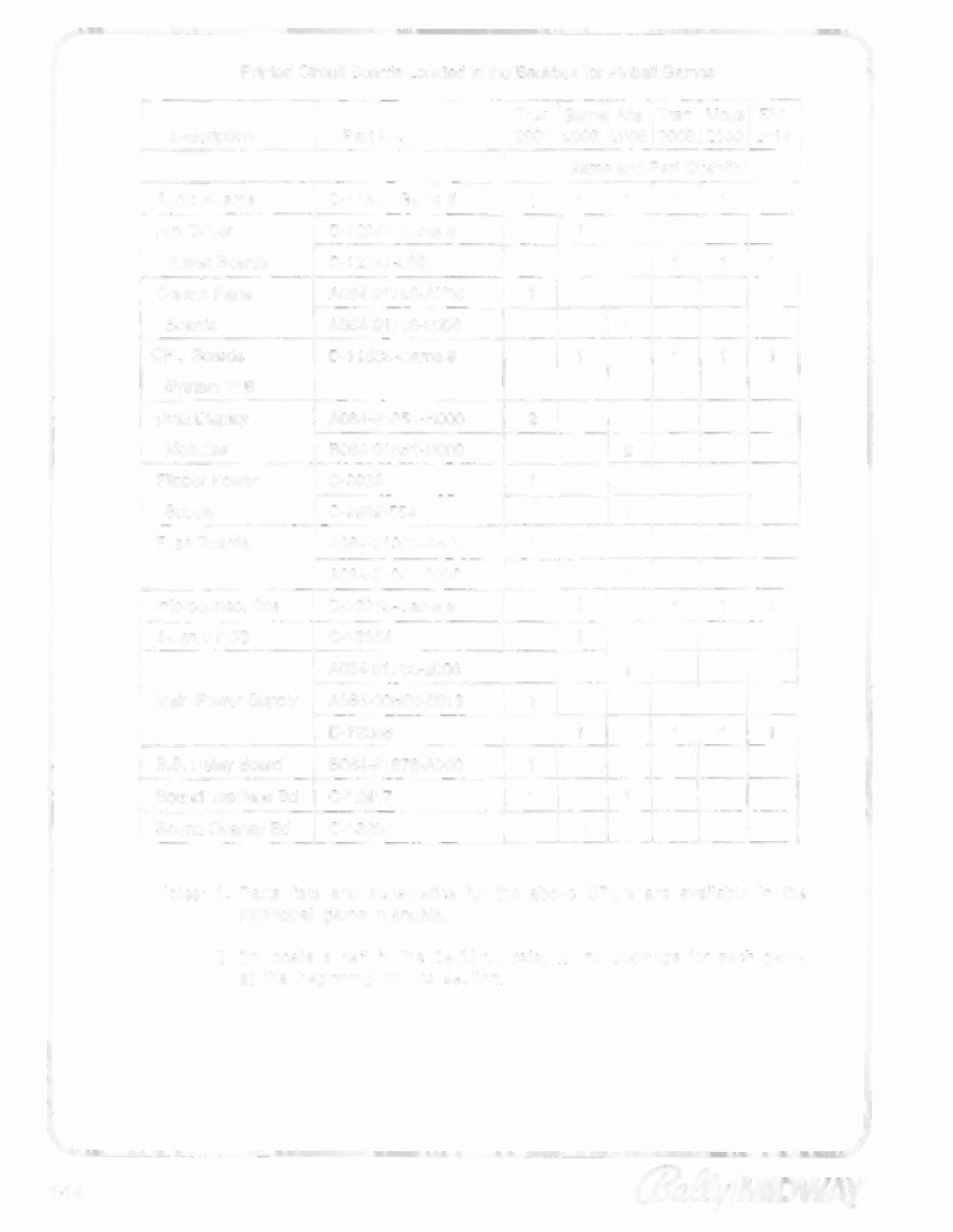

Printed Circuit Boards Located in the Backbox for Pinball Games
Trck Game Atla Tran Mous "Eivi
Description Part No. 2001 2003 2006 2008 2009 2011
Game and Part Quantity
Audio Boards 0-11581-Game # 1 1 1 1 1 1
Aux Driver 0-12247 -Game # 1
Power Boards D-12247-566- 1 1 1
Control Panel A084-91786-AH08 1
Boards A084-91786-2006 1
CPU Boards D-11883-Game # 1 1 1 1
System 11B
Dual Display A084-91851-HOOO 2
Modules B084-91851-HOOO 2
Flipper Power C-9939 1
Supply C-9939-554 1
Fuse Boards A084-91901-AH08 1
A084-91901-2006 1
Interconnect Bds 0-12313-Game # 1 1 1 1
4-Lamp PCB C-13354 1
A084-91785-2006 1
Main Power Supply A365-00H08-0013 1
0-12246 1 1 1 1
S.S. Relay Board B084-91878-AOOO 1
Sound Interface Bd C-12417 1 1
Sound Overlay Bd C-13286 1
Notes: 1. Parts lists and schematics for the above CPU's are available in the
individual game manuals.
2. To locate a part in the Backbox. refer to the drawings for each game
at the beginning of this section.
1-14 (J?~/MIDWAY
