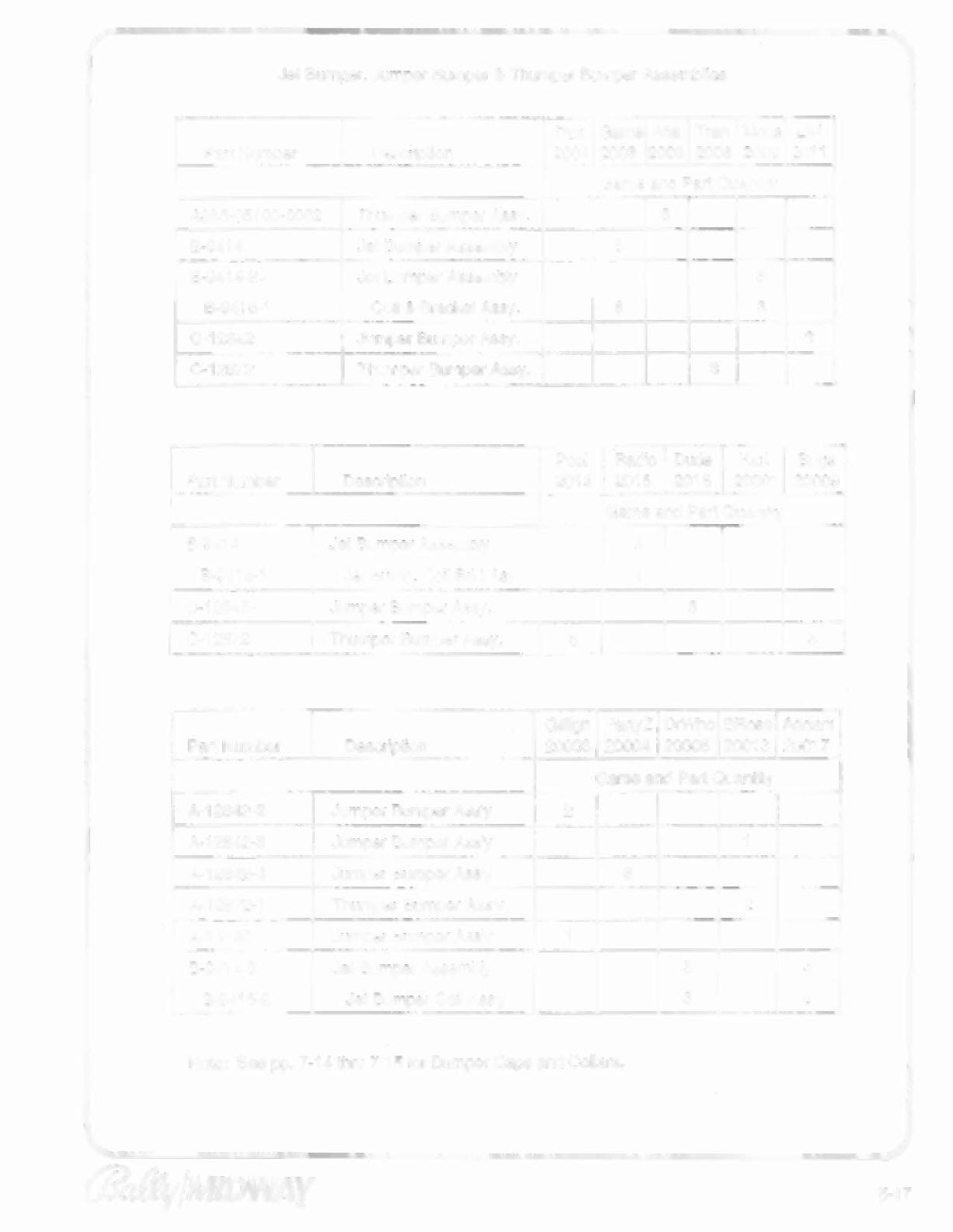

Page 439 - BallyMidway YELLOW Parts Catalog 16-9147-B

Jet Bumper, Jumper Bumper & Thumper Bumper Assemblies
Trek Game Atla Tran Mous Elvi
Part Number Description 2001 2003 2006 2008 2009 2011
Game and Part Quantity
A365-051 00-0002 Thumper Bumper Assy. 3
8-9414 Jet Bumper Assembly 3
8-9414-2 Jet Bumper Assembly 3
B-9415-1 Coil & Bracket Assy. 3 3
C-12842 Jumper 8umper Assy. 3
C-12872 Thumper Bumper Assy. 3
Pool Radic Dude Harl Bugs
Part Number Description 2014 2015 2016 20001 20009
Game and Part Quantity
8-9414 Jet Bumper Assembly 4
B-9415-1 Jet Bump. Coil/Brkt Asy. 4
C-12842-1 Jumper Bumper Assy. 3
C-12872 Thumper Bumper Assy. 3 3
Gillign PartyZ DrWho BRose Addam
Part Number Description 20003 20004 20006 20013 20017
Game and Part Quantity
A-12842-2 Jumper Bumper Ass'y 2
A-12842-3 Jumper Bumper Ass'y 1
A-12842-4 Jumper Bumper Ass'y 3
A-12872-1 Thumper Bumper Ass'y 2
A-14746 Jumper Bumper Ass'y 1
8-9414-3 Jet Bumper Assembly 3 5
B-9415-2 Jet 8umper Coil Ass'y 3 5
Note: See pp. 7-14 thru 7-15 for Bumper Caps and Collars.
@aI'fy/MIDWAY 5-17
