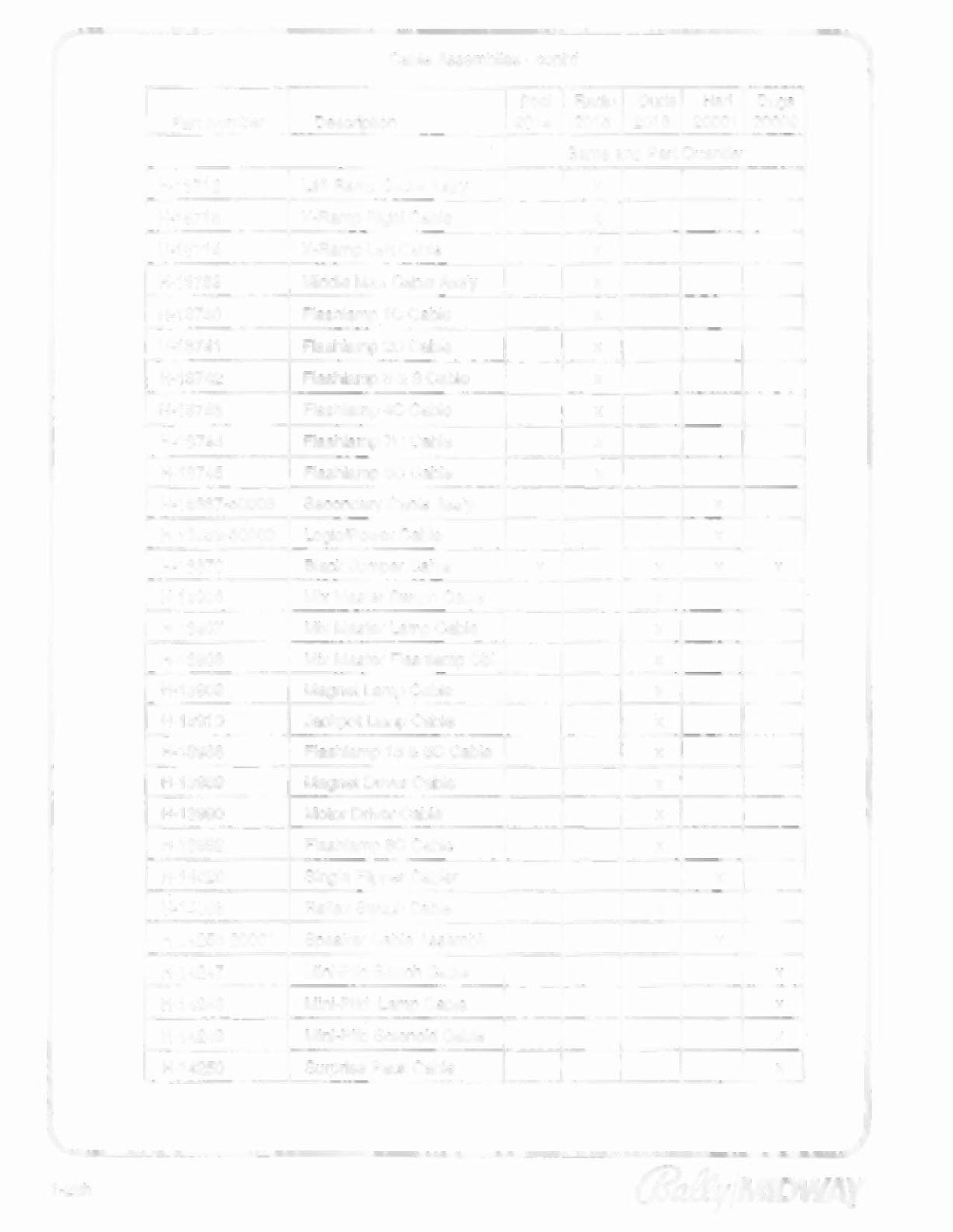

Page 102 - BallyMidway YELLOW Parts Catalog 16-9147-B

SEO Version

Cable Assemblies - cont'd
Pool
Radic Dude Harl
Bugs
Part Number
Description
2014 2015 2016 20001 20009
Game and Part Quantity
H-13712
Left Ramp Cable Ass'y
x
H-13713
X-Ramp Right Cable
x
H-13714
X-Ramp Left Cable
x
H-13739
Middle Man Cable Ass'y
x
H-13740
Flashlamp 1C Cable
x
H-13741
Flashlamp 2C Cable
x
H-13742
Flashlamp 3 & 6 Cable
x
H-13743
Flashlamp 4C Cable
x
H-13744
Flashlamp 7C Cable
x
H-13745
Flashlamp 8C Cable
x
H-13837 -50003 Secondary Cable Ass'y
x
H-13838-S0003 Logic/Power Cable
x
H-13870
Black Jumper Cable
x
x
x
x
x
H-13906
Mix Master Switch Cable
x
H-13907
Mix Master Lamp Cable
x
H-13908
Mix Master Flashlamp Cbl
x
H-13909
Magnet Lamp Cable
x
H-13910
Jackpot Lamp Cable
x
H-13988
Flashlamp 15 & 5C Cable
x
H-13989
Magnet Driver Cable
x
H-13990
Motor Driver Cable
x
H-13992
Flashlamp 8C Cable
x
H-14020
Single Flipper Cabler
x
H-14088
Reflex Switch Cable
x
H-14256-20001 Speaker Cable Assembly
x
H-14247
Mini-Plfd Switch Cable
x
H-14248
Mini-Plfd Lamp Cable
x
H-14249
Mini-Plfd Solenoid Cable
x
H-14250
Surprise Pack Cable
x
1-28h
(J?~/MIDWAY
