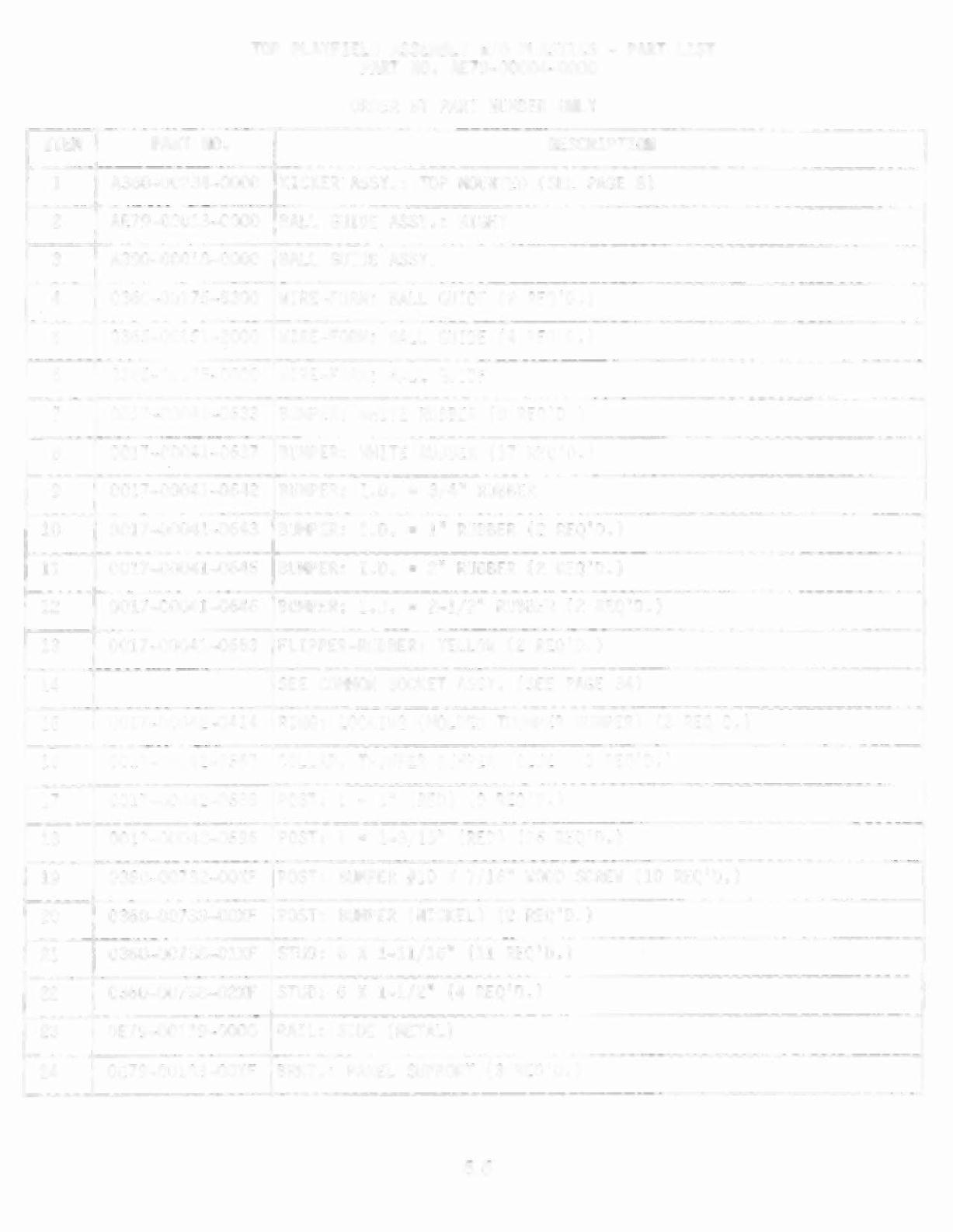

Page 64 - 1987_BALLY_ASPIRE

TOP PLAYFIELD ASSEMBLY W/O PlASTICS - PART LIST
PART NO. AE79-00004- 000
ORDER BY PART NUMBER ONLY
--
ITEM PART NO. DESCRIPTION
1 A360-0234-000 KICKER' ASSY.: TOP MOUNTED (SEE PAGE 8)
2 AE79-00013-0000 BALL GUIDE ASSY.: RIGHT
3 A390-00018-0000 BALL GUIDE ASSY.
4 0360-00175-5300 WIRE -FORt4: BALL GUIDE (2 REQ 10. )
5 0365-00151-200 WIRE-FORM: BALL GUIDE (4 REQ 1 D. )
6 0365-00175-000 WIRE-FORM: BALL GUIDE
7 0017-00041-0633 BUMPER: WHITE RUBBER (9 REQ'D.)
8 0017-00041-0637 BUMPER: WHITE RUBBER (17 REQ'D.)
9 0017-00041-0642 BUMPER: LO. = 3/4" RUBBER
10 0017-00041-0643 BUMPER: I.D. = I" RUBBER (2 REQ'D.)
11 0017-00041-0645 BUMPER: I.O. = 2" RUBBER (2 REQ'O.)
12 0017-00041-0646 BUt4PER: 1. 0 . = 2-1/2" RUBBER (2 REQ'D.)
13 0017-00041-0653 FLIPPER-RUBBER: YELLOW (2 REQ'D.)
14 SEE COMMON SOCKET ASSY. (SEE PAGE 34)
15 0017-00042-0414 RING: LOCKING (MOLDED THUMPER BUMPER) D REQ'D.)
16 0017-00042-0567 COLLAR: THUMPER BUMPER (BLUE) (3 REQ' O. )
17 0017-00042-0588 POST: L = I" (RED) (9 REQ'D.)
18 0017-00042-0596 POST: L = 1-3/16'1 (RED) (26 REQ'D.)
19 0360-00732-00XF POST: BUMPER #10 X 7/16" WOOD SCREW (10 REQID.)
20 0360-00733-00XF POST: BUMPER (NICKEL) (2 REQ'D.)
21 0360-00738-01XF STUD: 6 X 1-11/1611 (11 REO I D. )
22 0360-00738-02XF STUD: 6 X 1-1/2" (4 REQ'D.)
23 OE79-00119-0000 RAIL: SIDE (METAL)
24 OE79··00103-00XF BRKT.: PANEL SUPPORT (3 REQ I O. )
5.5
