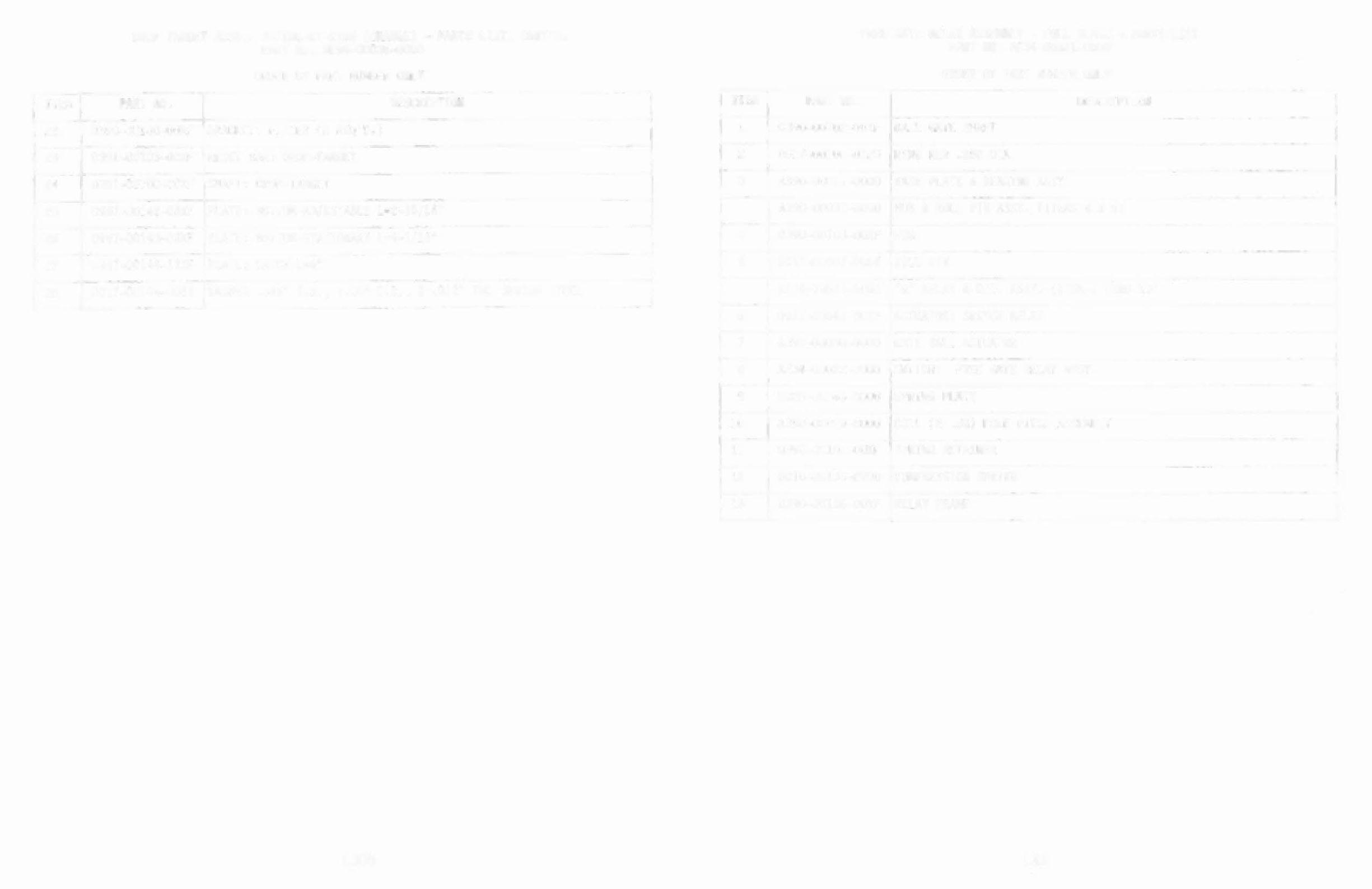

DROP TARGET ASSY.: 3-SIDE-8Y-SIDE (ORANGE) - PARTS LIST, CONTID.PART NO. AE94-00035-0000
ORDER BY PART NUMBER ONLY
FREE GATE RELAY ASSEMBLY - FULL PLATE - PARTS LISTPART NO. AE34-00021-0000
ORDER BY PART NUMBER ONLY
ItEM PART NO. DESCRIPTION
22 0390-001 0-00XF BRACKET: FILLER (2 REQ'D.)
23 0391-00l03-00XF RESET BAR: DROP-TARGET
24 0391-00700-00XF SHAFT: DROP-TARGET
25 0967-00142-03XF PLATE: BOTTOM-ADJUSTABLE L=2-15/16"
-
26 0967-00143-03XF PLATE: BOTTOM-STATIONARY L=4-l/16"
27 0967-00144-13XF PLATE: LATCH L=4"
28 0017-00104-0063 WASHER .645" 1.0., 1.00" 0.0., & .012" TH. SPRING STEEL
ITEM PART NO. DESCRIPTION
,
1 0390-00702.-00XF BALL GATE SHAFT
2 0017-00100 ..•0120 RING RER .250 DIA.
3 A390-0002l-0000 BASE PLATE & BEARING ASSY. I
A390-0003l-0000 HUB & ROLL PIN ASSY. (ITEMS 4 & 5) ,
4 0390-00703-00XF HUB
5 0017-00007-0066 ROLL PIN
AE34-00023-0000 "G" RELAY & COIL ASSY. (ITEM 6 THRU 13)
6 0017-00042-0627 ACTUATOR: SWITCH RELAY
7 A390-00030-0000 GATE BALL ACTUATOR
8 AE34-00022-0000 SWITCH: FREE GATE RELAY ASSY.
9 0020-00243-0000 SPRING PLATE
10 A390-00029-0000 COIL (2 LUG) POLE PIECE ASSEMBLY
, 11 0390-00107-00XF SPRING RETAINER
12 0010-00135-0200 COMPRESSION SPRING
13 0390-00106-00XF RELAY FRAME
1.30b 1.42
