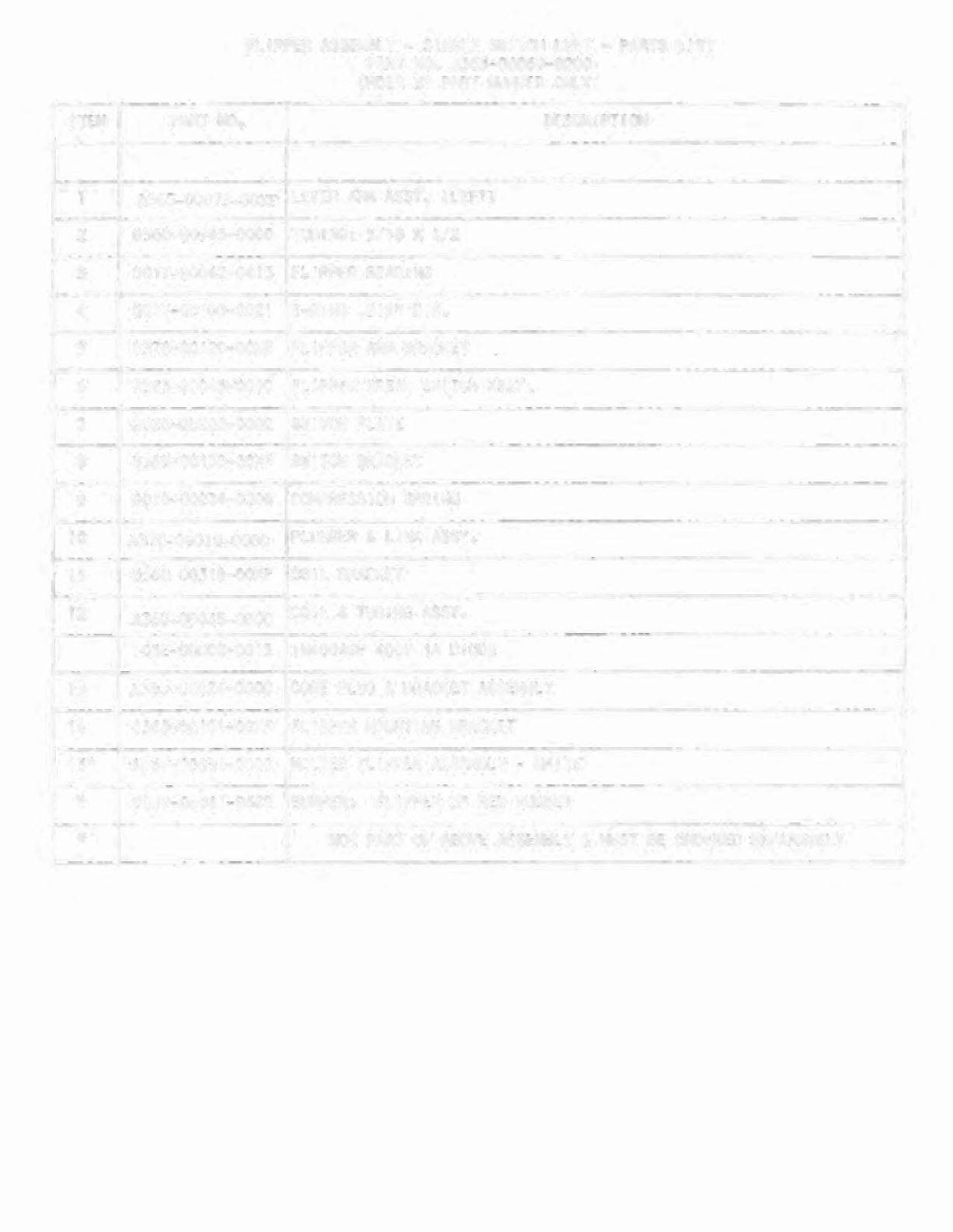

fLIPPER ASSEMBLY - SINGLE SWITCH LEFT - PARTS LISTPART NO. A365-0006g...020
ORDER BY PART NUMBER ONLY
ITEM PART NO. DESCRIPTION
:
1 A365-00073-00XF LEVER ARM ASSY. (LEFT)
2 0360-00945-0000 TUBING: 5/16 X 1/2
3 0017-00042-0413 FLIPPER BEARING
4 0017 -00100-0021 E-RING .219" OIA.
5 0370-00120-00XF FLIPER ARM BRACKET
6 A365-00045-000 FLIPPER BREAK SWITCH ASSY.
7 0020-00202-0000 SWITCH PLATE
8 0365-00 130-00XF SWITCH BRACKET
9 0010-00274-0206 COMPRESSION SPRING
10 A370-00018-0000 PlUt~GER &. L I~ A5SY.
11 0360-0 318-00XF CO IL BRACKET
12 A360~OOO45-0000 COIL &. TUBING ASSY.
103E-00002-0015 IN404GP 400V lA DIODE
13 A365-0024-0000 CORE PLUG & BRACKET ASSEMBLY
14 0365-001 1-00XF FLIPPER MOUNTING BRACKET
15· A96 7-0003' 1-000 MOLDED FL IPPER .ASSEMBLY - WH ITE
• 0017-004'-0682 BUMPER: FLIPPER 3" RED RUB ER
• NOT PART OF AOOVE ASSEMBLY & MUST BE ORDERED SEPARATELY
