Page 12 - 1986_PARTS_CATALOG_ASPIRE

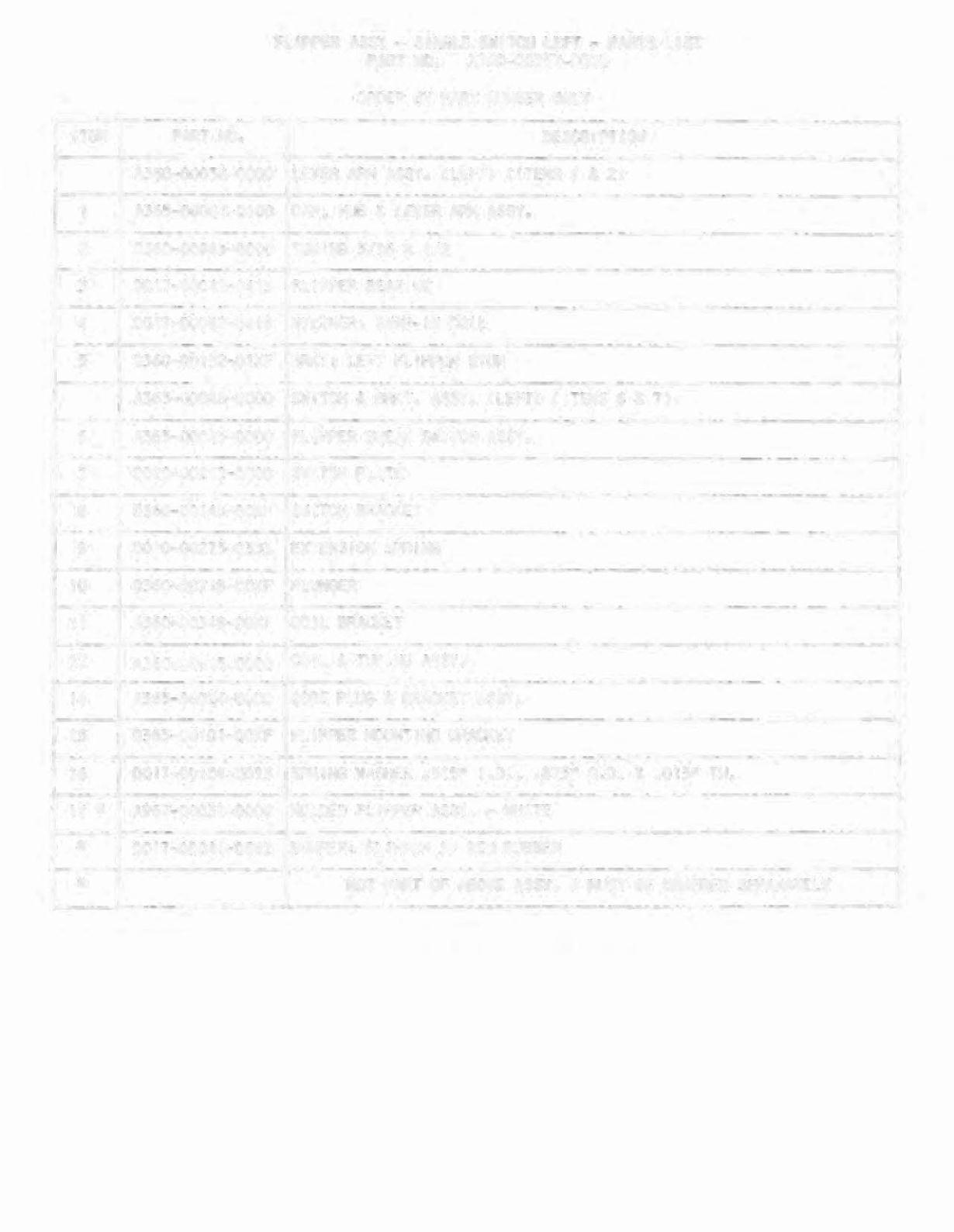

FLIPPER ASSY - SINGLE SWITCH LEFT - PARTS LIST
PART NO. A360-00267-0000
ORDER BY PART NUMBER ONLY
ITEM PART NO. DESCRIPTION
A360....00038-0000 LEVER ARM ASSY. (LEFT) (ITEMS 1 .\ 2)
1 A365-00001-0100 CAP, HUB .\LEVER ARM ASSY. -
2 0360-00945-0000 TUBING 5/16 X 1/2
3 0017-00042-0413 FL I PPER BEAR ING
4 0017-00042-0418 NYLINER: SNAP-IN COIL
5 0360-00152-01XF BRKT: LEFT FLIPPER STOP
A365-00048-0000 SWITC~ .\BRKT. ASSY. (LEFT) (ITEMS 6 & 7)
6 A365-00045-0000 FLIPPER BREAK SWITCH ASSY.
7 0020-00202-0000 SWITCH PLATE
8 0360-00l45-00XF SWI.TCH BRACKET
9 0010-00275-0353 EXTENSION SPRING
10 0360-00718-00XF PLUNGER
11 A360-00318-00XF COIL BRACKET
12 A360-00045-DOOO COIL & TUBING ASSY.
14 A365-00024-0000 CORE PLUG & BRACKET ASSY.
15 0365-00101-00XF FLIPPER MOUNTING BRACKET
16 0017-00104-0073 $PR 1NG WASHER .515" 1.0., .875" 0.0. & .013" TH.
17- A967-00031-0000 MOLDED FLIPPER ASSY. - WHITE
• 0017-00041-0682 BUMPER: FLIPPER 3" RED RUBBER
• NOT PART OF ABOVE ASSY. & KIST BE ORDERED SEPARATELY
