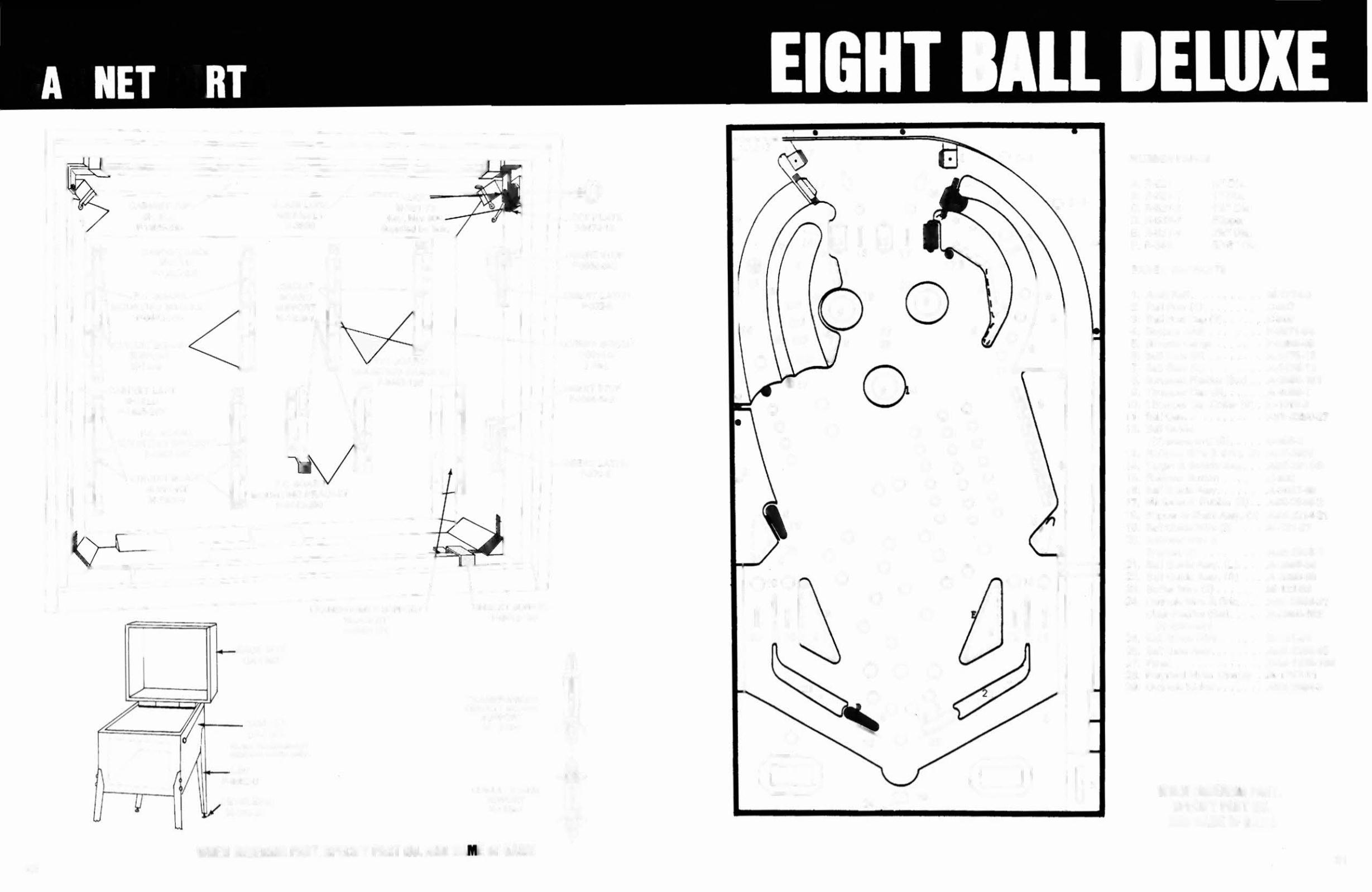

CABINET TOP
SHIELD
P·1925·206
GLASS LOCK
ASSEMBLY
A·3B68
CABINET BACK
SHIELD
P·1925·205
INSERT LATCH
P·372·6
P.C. BOARD
MOUNTING BRACKET
P·6442·186
<.
o
1
CIRCUIT BOARD
SUPPORT
M·1829·1
-r---{-4.-WUCORNER
SHIELD
P·3914·3
2 Heq.
INSERT STOP
P·6665·540
CABINET LEFT
SHIELD
P·1925·207
o
o
P.C. BOARD
MOUNTING BRACKET
P·6442·185
INSERT LATCH
P·372·6
CIRCUIT BOARD
SUPPORT
M·1829·1
P.C. BOARD
I
MOUNTING BRACKET
.
P·6442·260
o
o
o
INSERT SUPPORT
P·6442·190
TRANSFORMER SUPPORT
BRACKET
P·6442·191
20
BACK BOX
CA·1392
CIRCUIT BOAR.D
SUPPORT
M·1829·1
o
g
TRANSFORMER
CIRCUIT BOARD
SUPPORT
M·1B29·2
-+- __
CABINET
CA·1393
N o te:R ep la cemen t
c a bin etsw hite on ly.
WHEN ORDERING PART.
SPECIFY PARJ NO. AND NAME OF GAME
62
If?=\\
@
o
,0
o
0
o
0
o
0- 0
o
o
0
o
0
o
o
o
o
o
o
o
0
o
0°
o
o
o
o
o
o
o
000
4
24
~-., 29
J. .~
•
•
RUBBER PARTS
•
A. R·521
B.
R-521-1
C.
R-521-2
D.
R·533-3
E.
R·521-4
F.
R·243
%" Dia.
1"
Dia.
1%" Dia.
Flipper
2Y,"
Dia.
5/16" Dia .
PANEL TOP PARTS
1.
Arch Rail.
M-1714-6
2.
Rail Post
(3) ...•.... ..
C·907
3.
Rail Post Cap'
(3)
C-908
4.
Bottom Arch
P-5871-84
5.
Shooter Gauge
P-6359·49
6. Ball Gate (R)
A-1475·13
7. Ball Gate (L)
A-1475·12
8.
Screened Plastics (Set)
A-2890-151
9. Thumper Cap (3)
A-4009-1
10. Thumper Cap Collar (3) .. C-1018-3
11.
Ball Gate
ASE-2250·27
12. Ball Guide
(Transparent) (3)
C-693-2
13. Rollover Wire & Brkt.
(4)
.ASE-2806
14. Target & Switch Assy
ASE-2911-3
15. Rollover Button
C-900
16. Ball Guide Assy
A-3032-69
17.
M
inipost & Rubber
(3)
ASE-2836-2
1.8. Flipper & Shaft Assy. (3) .ASE-2214-21.
19. Ball Guide Wire (2) .....
M-121·27
20. Rollover Wire &
Bracket (2)
ASE·2806·1
21. Ball Guide Assy. (L)
A·2898·39
22. Ball Guide Assy. (R)
A-2898·38
23. Buffer Wire (2)
M·121·53
24.
Outhole Wire
&
Brkt
ASE·2806·21
Clear
Plastics
(Set)
A·2890·152
(Not Shown)
25.
Ball Guide Wire
M·121·93
26. Ball Gate Assy
ASE-2250·8~
27.
Panel.
CAS-1128·188
28. Playfield Mylar Overlay .. M·1787·31
29
1
•
Outhole
Kicker
ASE·2694·3
•
WHENI
ORDERING PART.
SPECIFY PARJ NO.
AND NAME OF GAME
31
