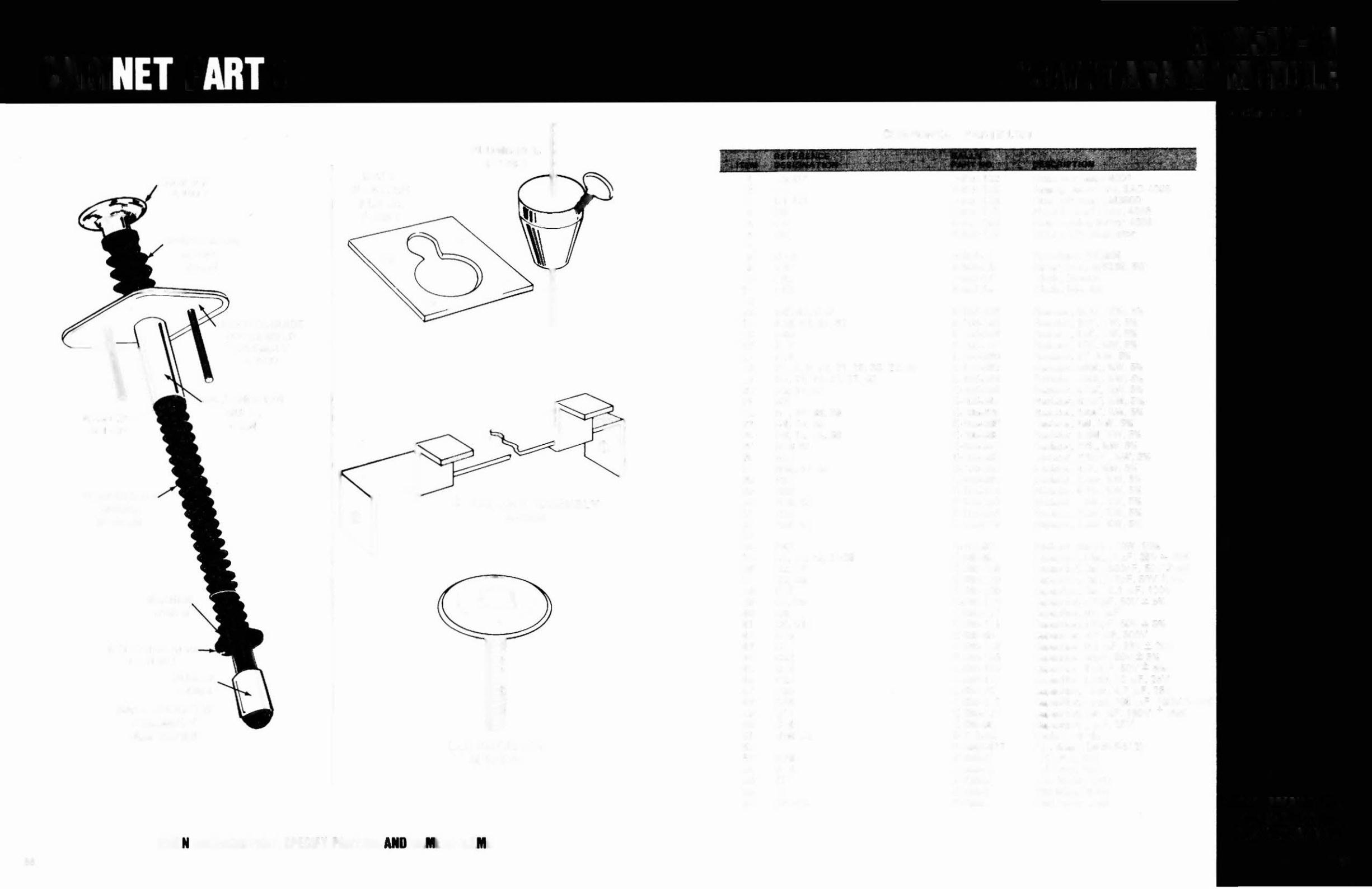

Page 27 - 1981_PARTS_CATALOG_ASPIRE

COMPRESSION
SPRING
SP·247
SHOOTER GUIDE
COVER WELD
ASSEMBLY
A·3830
L SHOOTER
COMPRESSIO
SPRING
SP·200-24
RETAINING RING_~ ••
P·80l·507
RUBBER
BALL SHOOTER
ASSEMBLY
ASE-2318-6
PLUMB BOB
E·138·3
COMPONENT PARTS LIST
BALL
SHOOTER
PLATE
P-5291
1 U6, U7 E·620·122 Quad Nor Gates 4001
2 U2 E·620·195 Analog Delay Line, SAD 4096
3 U1, U3 E·620·126 Quad OP Amp LM3900
4 U5 E·620·197 Phase Locked Loop, 4046
5 U4 E·620·196 Quad Analog Switch 4066
6 U8 E·620·179 7812 + 12V Regulator
7
8 Ql·3 E·585·31 Transistor, 2N3904
9 VRl E·598·22 Zener, 24V, IN5359, 5W
10 CAl E·587·15 Diode, IN4004
11 CR2 E·587·14 Diode,IN4148
12
13 R42·47, R52 E·l05·306 Resistor, 100 ,Y..W, 5%
14 R16,53,57,62 E·l0S·185 Resistor, 10K, Y..W,5%
15 R48 E-l0S·346 Resistor, 18K, Y..W,5%
16 R1I E·l05-336 Resistor, l5K, Y..W, 5%
17 R14 E-l05-230 Resistor, 1K, Y..W,5%
18 R5, 6, 9, 12, 21, 25, 33, 22, 26 E-l05·382 Resistor, 680K, Y..W,5%
19 R7, 11, 13,23,27,40 E·105-348 Resistor, 330K, Y..W, 5%
20 R3,31,32 E·105-284 Resistor, 470K, Y..W, 5%
21 R2 E· 105·343 Resistor, 820K, Y..W, 5%
22 R1,35,38,39 E·l05·226 Resistor, lOOK, Y..W, 5%
23 R4, 54, 56 E·105·285 Resistor, 1M, Y..W, 5%
24 R8, 12, 24, 58 E-l05-380 Resistor, 1.2M, Y..W,5%
25 R 18-20 E·l05-377 Resistor, 22K, Y..W, 5%
26 R63 E·l05·303 Resistor, 220 n , Y..W, 5%
27 R36, 37, 59 E·105·263 Resistor, 47K, Y..W,5%
28 R6l E·l05·381 Resistor, 2.4M, %W, 5%
29 R60 E·l05-378 Resistor, 4.7M, Y..W, 5%
30 R28,55 E-l05-250 Resistor, 1.5M, %W, 5%
31 R30 E·l05·256 Resistor, 2.2M, %W, 5%
32 A50, 51 E·10S·379 Resistor, 3.9M, Y..W,5%
33
34 R41 E· 104-92 Resistor,600n , lOW, 10%
35 cr. 12, 19, 21·29 E·586-89 Capacitor, Disc, .1IJ.F, 25V ± 20%
36 C2, C7 E·586-169 Capacitor, Car., 680pF, 50V ± 5%
37 C3,C8 E·586-170 Capacitor, Cer., 47pF, 50V ± 5%
38 C17 E-586-100 Capacitor, Cer., 0.1 J.LF, 100V
39 C4,C9 E-586-175 Capacitor, 270pF, 50V ± 5%
40 C6,31 E·596·112 Capacitor, 033 IJ.F
41 C5, Cl0 E-586-171 Capacitor, 120pF, 50V.:!. 5%
42 C15 E-586-65 Capacitor, .01 IJ.F, 500V
43 Cll E·586-118 Capacitor, 0.2 IJ.F, 16V ± 20%
44 C32 E-586·155 Capacitor, 68pF, SOV ± 5%
45 C13 E-586-176 Capacitor, 470pF, 50V ± 5%
46 C20 E-586·177 Capacitor, Lytic, 10 J.LF, 25V
47 C30 E-586-73 Capacitor, Tant., 4.7 J.LF, 25V
48 C18 E-586-173 Capacitor, Lytic, 100 J.LF, 100V:!: 20%
49 C16 E·586-172 Capacitor, 100 J.LF, 160V, ±. 20%
50 C14 E-586·90 Capacitorv l IJ.F,25V
51 U/WU2 E·712·16 Socket, 16 Pin
52 P·2948·477 P.C. Board (M·645·612)
53 R29 E-599-21 Trim Pot, 50K
54 R15 E·599·15 Trim Pot, 10K
55 J1 E·736·5 .156 Wafer, 5 Pin
56 J2 E-766·6 100 Wafer, 6 Pin
57 TPl-13 P·5399 Test Point Loop
GLASS LOCK ASSEMBL Y
A-3868
LEG ADJUSTER
M·163·28
66
WHEN ORDERING PART. SPECIFY PART NO. AIID NAME Of GAME
