Dimensions are inside diameters. Numbers in
parantheses indicate quantity used, if in
excess of one.
•
•
RUBBER PARTS
•
a
•
A.
R·521·2
1\1,"
Dia.
(3)
B.
R·521·6
3%" Dia .
C.
R·521-1
1" Dia.
D. A-521
%" Oia.
(2)
E.
R·521·3
2" Dia,
F. R·521·4
2%" Oia.
(4)
G. R·406-3
Flipper
(2)

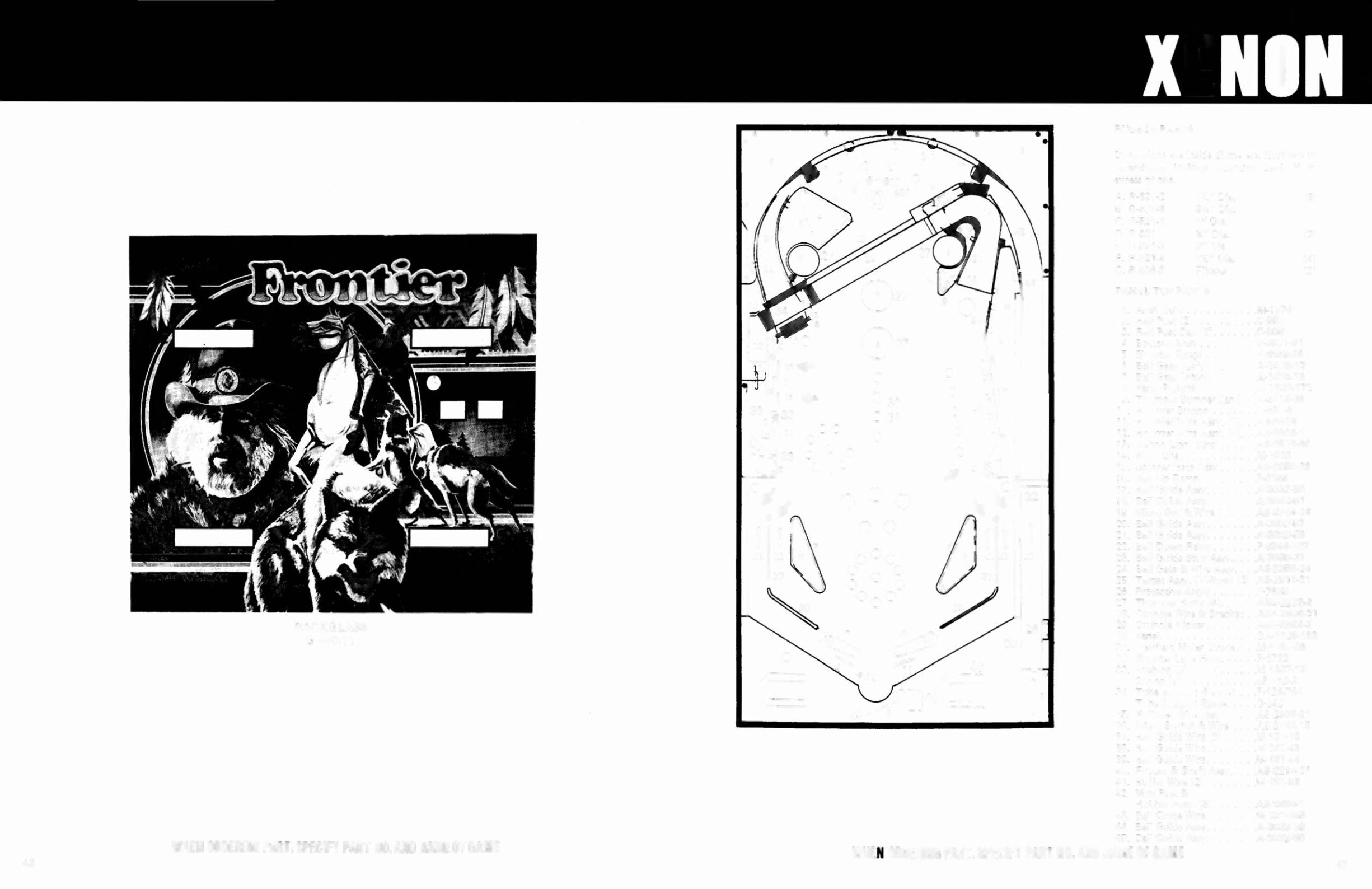

PANEL TOP PARTS
000
1.
Arch Rail.
_
M-1774
2.
Rail Post (2)
C-907
3. Rail Post Cap (2)
C-908
4. Bottom Arch
P-5871·81
5.
Shooter Gauge
P·6359·46
6.
Ball Gate (Left)
A-1475·12
7. Ball Gate (Right)
A·1475-13
8. Panel Plastics
M-1330·172
9. Thumper Bumper Cap (4) .A-3713-66
10. Rollover Button
C-587-6
11. Rollover Wire Assy. (3)
AS-2806
12. Rollover Wire Assy. (4)
AS-2806-1
13. Xenon Light Strip
AS-2518-60
14. Ball Tube
M-1922
15. Spinner Gate Assy
AS-2250-78
16. Ball Up Ramp
P-8155
17. Bait Gu ide Assy
A-3032-50
18. Ball Guide Assy
A-3032·51
19 .
Micro Sw. & Wire
AS-2744-14
20. Ball Guide Assy
A-3032-57
21. Ball Guide As.sy. . .
A-3032-58
22. Ball Down Ramp
P-6244-107
23. Ball Guide Stop Assy
A-2898-37
24. Ball Gate & Wire Assy
AS-22S0-24
25. Target Assy. (Yellow) (2) .AS-2911·21
26. Protective Angle
P-7639
27. Thumper Body (4)
ASE·2222·4
28. Outhole Wire
&
Bracket .. ASE-2806-21
29. Outhole Kicker
ASE-2694-3
30. Panel.
CA-1128-182
31. Playfield Mylar Overlay .. M-1787-25
32. Shooter Lane Hood
P-1732
33.
Bushing (3)
M-1337·13
Spring (3)
SP·112-3
34. Tube Support Bracket
P-126-794
Tube Support Spacer
C·942
35. Rollover Wire Assy
AS-2806-21
36. Micro Switch
&
Wire
AS-2744·15
37. Ball Guide Wire (2)
M-121-18
38. Ball Guide Wire
M-121-43
39. Ball Guide Wire
M-121-44
40.
Flipper & Shaft Assy
AS-2214-21
41. Buffer Wire (2)
M-121-53
42.
Mini Post &
Rubber Assy.
(5)
AS-283G·l
43.
Ball Guide Wire
M-121-108
44. Ball Guide Assy
A-3032-59
45. Ball Guide Assy
A·3032-GO
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
o
o
BAC KG LASS
G-440-11
0
30
031
o
o
o
o
o
00
12
o
o
~5
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
