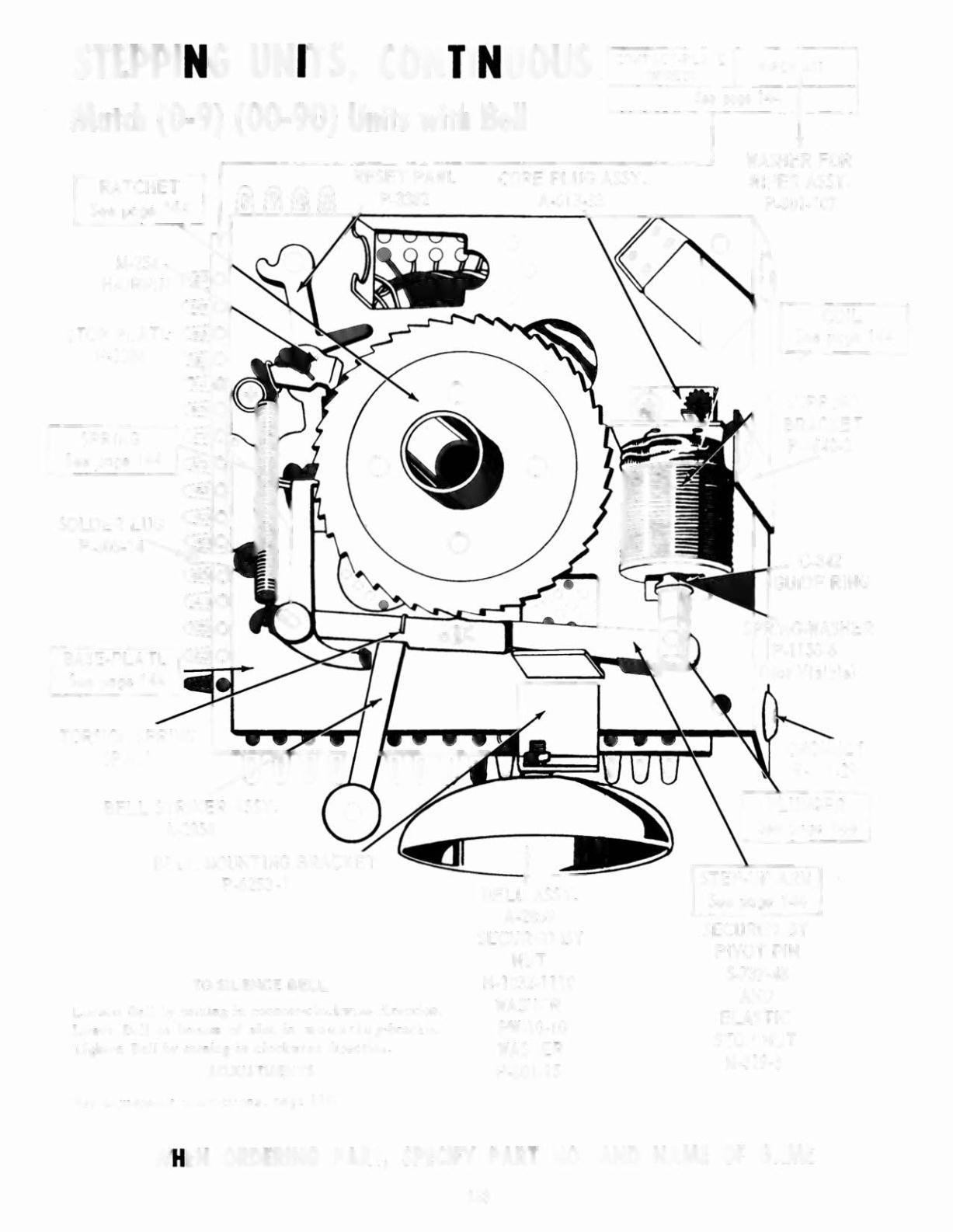

STEPPING UNITS, CONTINUOUS
Match (0-9) (00-90) Units with Bell
CONT ACT ·PLA TE
(WIRED)
WIPER AS)Y
See page 144
WASHER FOR
WIPER ASSY.
P-80l-107
~~~~~~----------------~------------
RESET PAWL
P-3382
CORE PLUG ASSY.
A-613-33
TORSION SPRING
SP·401
RATCHET
o
COIL
STOP PLATE
P-3386
SPRING
See .page 144
BASE-PLATE
See page 144
BELL STRIKER ASSY.
A-28S8
BELL MOUNTING BRACKET
P·6253·1
See page 144
TO SILENCE BELL
BELL ASSY.
A-2859
SECURED BY
NUT
N-l 032-111 0
WASHER
PW-10-1 0
WASHER
P-801-I5
See page 144
SECURED BY
PIVOT PIN
S-737-48
AND
ELASTIC
STOP NUT
M-319-3
Loosen Bell
by
turning
i,l
counter-c1ockw i se direction.
Lower Bell to bott om of slot in m
0
un r
i
n g-bracker.
Tighten Bell
by
turning in clockwise direction.
A.DJUSTMENTS
See adjustmen t instructions,
page 139.
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
143
